CARBURETOR
EJ650A4 W650 2002 CANADA

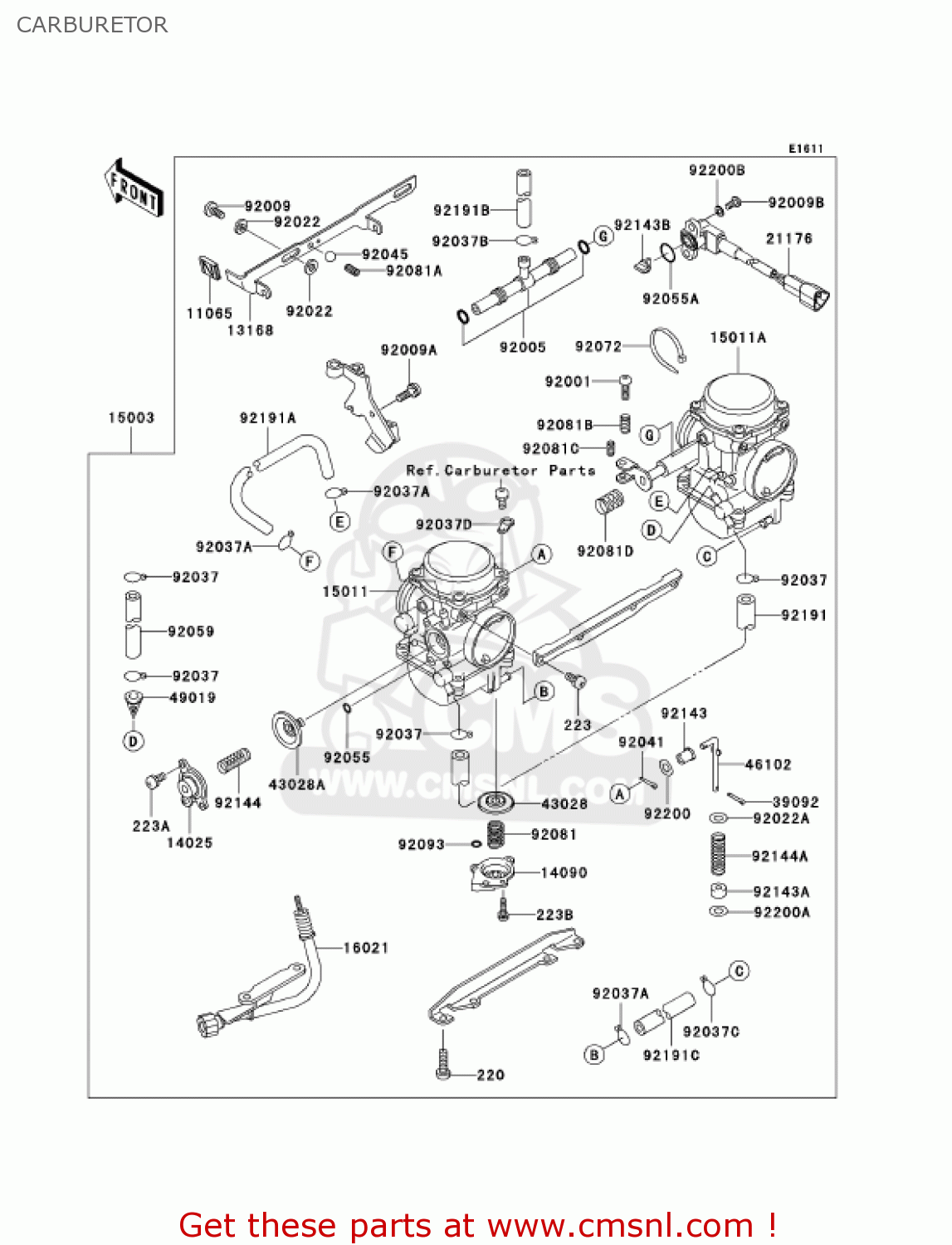

Carburetor diagram EJ650A4 W650 2002 CANADA
CARBURETOR EJ650A4 W650 2002 CANADA
×
prices are in EUR
ref
part #
description
quantity
11065
110651092
ref: 11065
CAP,STARTER LEVER
€ 13.50
13168
131681679
ref: 13168
LEVER,STARTER
€ 57.50
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
€ 43.00
14090
140901635
ref: 14090
COVER,ACCELERATOR
€ 40.50
15003
150031594
ref: 15003
CARBURETOR-ASSY
€ 832.00
15011
150111795
ref: 15011
CARBURETOR,LH
€ 484.50
15011A
150111796
ref: 15011A
CARBURETOR,RH
€ 484.50
16021
160211228
ref: 16021
SCREW-THROTTLE STOP
€ 66.00
21176
211761101
ref: 21176
SENSOR
€ 145.50
39092
390921058
ref: 39092
PIN-HAIR
€ 2.00
43028
430281077
ref: 43028
DIAPHRAGM
€ 62.50
43028A
430281084
ref: 43028A
DIAPHRAGM,4.9MM,AIR C
€ 66.50
46102
461021434
ref: 46102
ROD
€ 18.00
49019
490191092
ref: 49019
FILTER-FUEL
€ 19.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051326
ref: 92005
FITTING
€ 37.00
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091781
ref: 92009B
SCREW
€ 1.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371185
ref: 92037B
CLAMP,FUEL TAP HOSE
€ 3.50
92037C
920371396
ref: 92037C
CLAMP,TUBE
€ 3.50
92037D
920371969
ref: 92037D
CLAMP,HOSE
€ 5.00
92041
920411061
ref: 92041
COTTER
€ 2.50
92045
920451104
ref: 92045
BALL,BRASS,SHAFT STOP
€ 2.00
92055
920551245
ref: 92055
RING-O
€ 3.50
92055A
920551574
ref: 92055A
RING-O
€ 2.50
92059
920591597
ref: 92059
TUBE,7.3X12.5X180
€ 14.50
92072
920721250
ref: 92072
BAND
€ 3.50
92081
920811092
ref: 92081
SPRING,DIAPHRAGM
€ 8.00
92081A
920811619
ref: 92081A
SPRING,SHAFT STOP
€ 4.50
92081B
920811620
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811621
ref: 92081C
SPRING,THROTTLE ADJUS
€ 3.00
92081D
920811876
ref: 92081D
SPRING
€ 6.00
92093
920931046
ref: 92093
SEAL-"U"RING
€ 4.00
92143
921431790
ref: 92143
COLLAR
€ 1.50
92143A
921431791
ref: 92143A
COLLAR
€ 5.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0408
ref: 223A
SCREW-PAN-WS-CROS
€ 1.00
223B
223D0410
ref: 223B
SCREW-PAN-WS-CROS
€ 2.50
92143B
921431907
ref: 92143B
COLLAR
€ 6.00
92144
921441072
ref: 92144
SPRING,AIR CUT VALVE
€ 6.50
92144A
921441886
ref: 92144A
SPRING
€ 6.00
92191
921911410
ref: 92191
TUBE,FUEL
€ 16.50
92191A
921911411
ref: 92191A
TUBE
€ 6.50
92191B
921911412
ref: 92191B
TUBE,7X11X370
€ 7.50
92191C
921911443
ref: 92191C
TUBE
€ 9.00
92200
922001274
ref: 92200
WASHER
€ 1.50
92200A
922001275
ref: 92200A
WASHER
€ 1.50
92200B
922001369
ref: 92200B
WASHER
€ 2.50
