IGNITION SWITCH/LOCKS/REFLECTORS
EJ650A4 W650 2002 CANADA

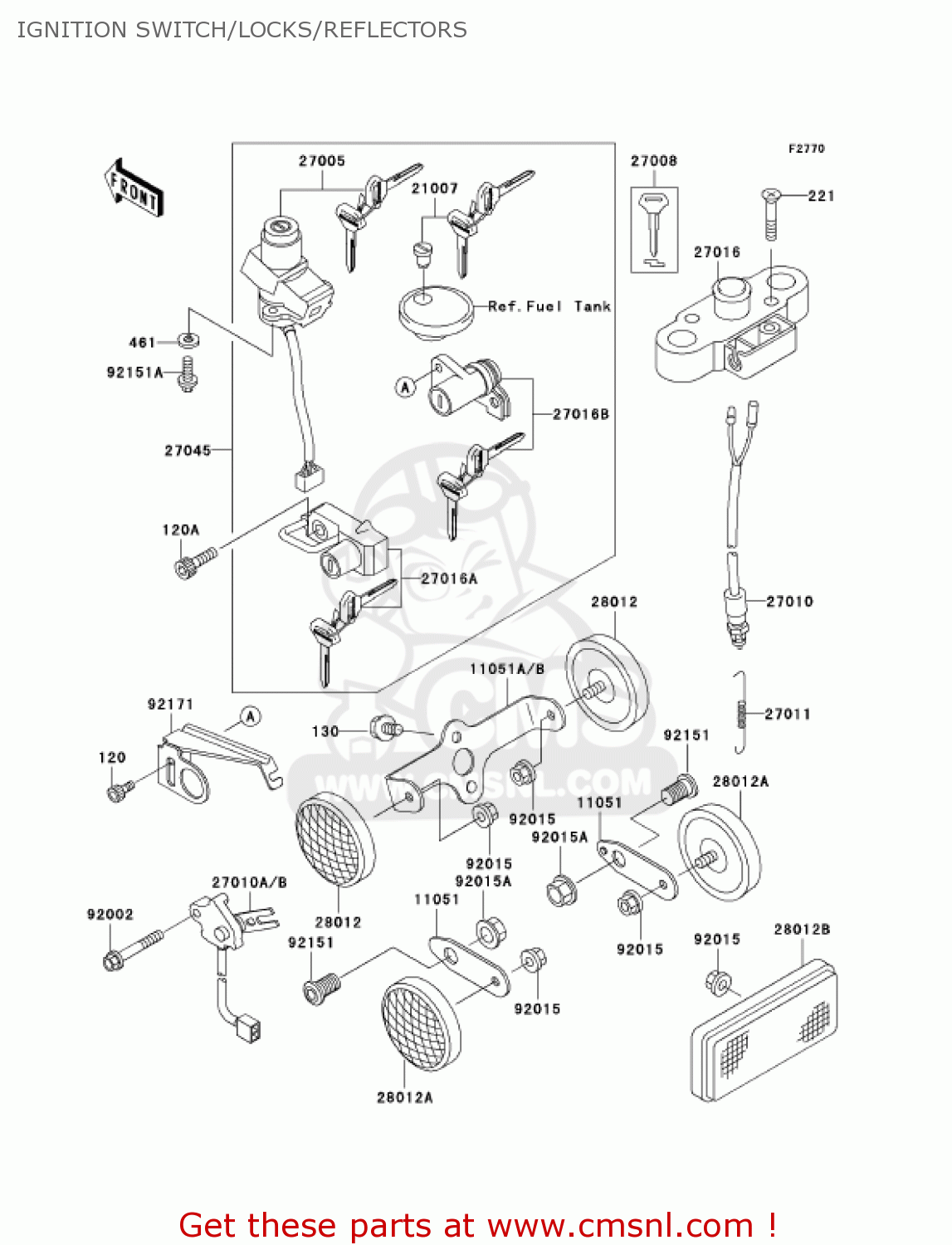

Ignition switch/locks/reflectors diagram EJ650A4 W650 2002 CANADA
IGNITION SWITCH/LOCKS/REFLECTORS EJ650A4 W650 2002 CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
120A
120S0616
ref: 120A
BOLT-SOCKET,6X16
€ 1.00
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
€ 1.00
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
11051
110511274
ref: 11051
BRACKET,REFLECTOR,RR
€ 2.50
11051B
110511959
ref: 11051B
BRACKET,REFLECTOR,FR
€ 4.50
21007
210075043
ref: 21007
ROTOR,LOCK,TANK CAP
€ 71.00
27005
270055114
ref: 27005
SWITCH-ASSY-IGNITION
€ 242.50
27008
270081189
ref: 27008
(OPTION)
KEY-LOCK,BLANK
€ 12.50
27010
270101399
ref: 27010
SWITCH,REAR BRAKE
€ 25.50
27010B
270101423
ref: 27010B
SWITCH,SIDE STAND
€ 50.50
27011
27011011
ref: 27011
SPRING,BRAKE LAMP SW
€ 5.50
27016
270161098
ref: 27016
LOCK-ASSY,SEAT STRIKE
€ 72.50
27016A
270165247
ref: 27016A
LOCK-ASSY,HELMET
€ 54.00
27016B
270165256
ref: 27016B
LOCK-ASSY,SEAT
€ 55.00
27045
270455106
ref: 27045
SWITCH-ASSY
€ 437.00
28012
28012016
ref: 28012
REFLECTOR REFLEX
€ 16.00
28012A
280121067
ref: 28012A
REFLECTOR-REFLEX
€ 15.50
28012B
280121077
ref: 28012B
REFLECTOR-REFLEX
€ 16.00
92002
920021080
ref: 92002
BOLT,6X40
€ 3.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92015A
920151428
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92151
921511571
ref: 92151
BOLT,SOCKET,10X16
€ 2.50
92151A
921511911
ref: 92151A
BOLT,TORX,6X16
€ 1.50
92171
921711072
ref: 92171
CLAMP
€ 7.00
