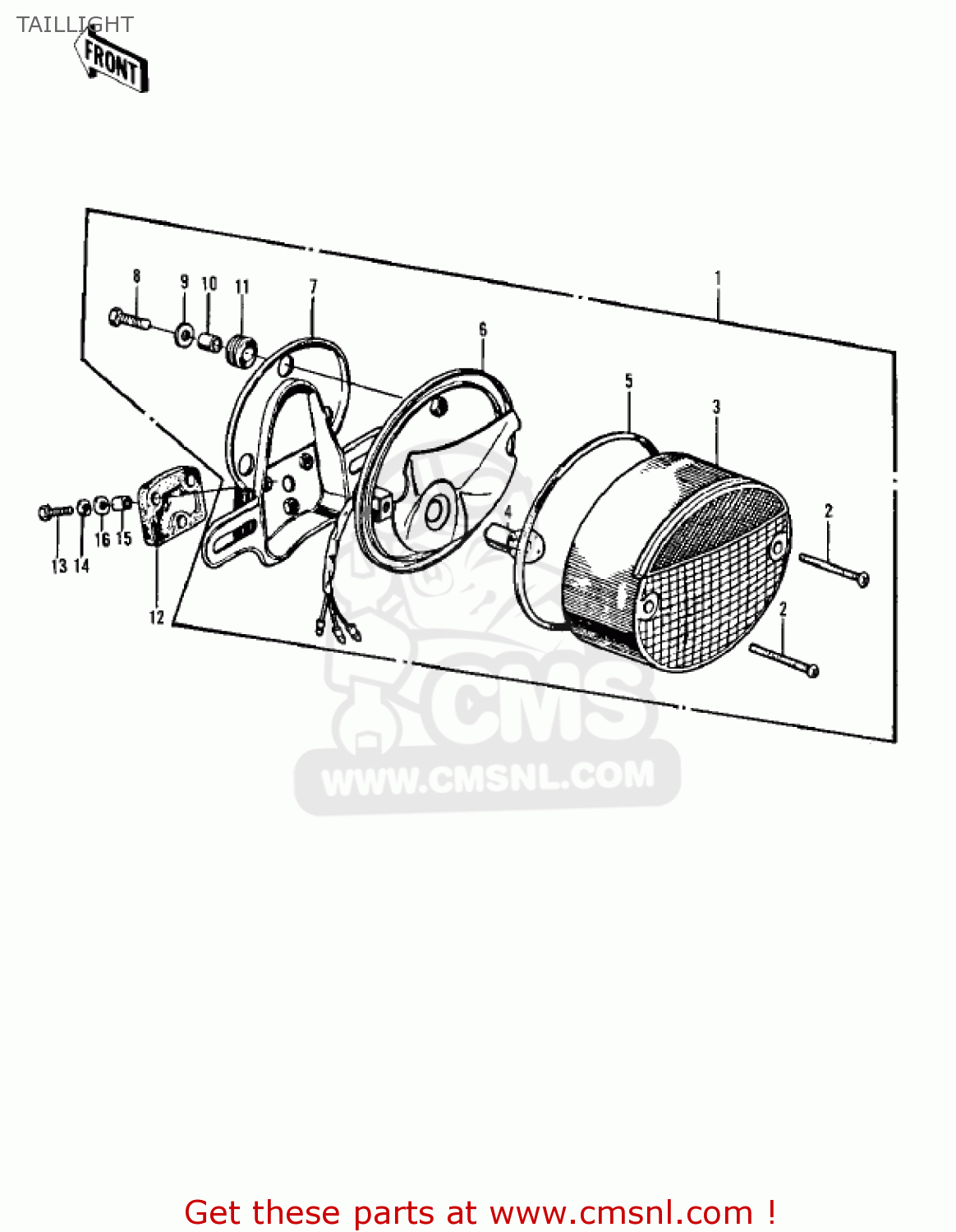

TAILLIGHT

ref

part #

description

quantity

1

23024018
ref: 1

LAMP-ASSY-TAIL

€ 177.50

2

220E0435A
ref: 2

SCREW-PAN HEAD,4X35

€ 4.50

3

23026023
ref: 3

LENS,TAIL LAMP

€ 91.50

4

92069059
ref: 4

BULB,12V 32/3CP

€ 5.50

5

23028018
ref: 5

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

6

23027030
ref: 6

BODY-COMP-TAIL LAMP

€ 76.00

7

23036017
ref: 7

TAIL LAMP BRACKET

€ 42.00

8

112G0620
ref: 8

BOLT 6X20

€ 1.00

9

92022125
ref: 9

WASHER,6.5X20X1.6

€ 1.00

10

92027129
ref: 10

COLLAR,6.8X10X8.5

€ 3.00

11

92075076
ref: 11

DAMPER

€ 3.00

12

35039004
ref: 12

DAMPER,TAIL LAMP

€ 12.00

13

112G0625
ref: 13

BOLT-UPSET,6X25

€ 4.00

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

92027156
ref: 15

COLLAR-BATTERY CASE

€ 3.00

16

92075121
ref: 16

DAMPER,FENDER

€ 2.50
