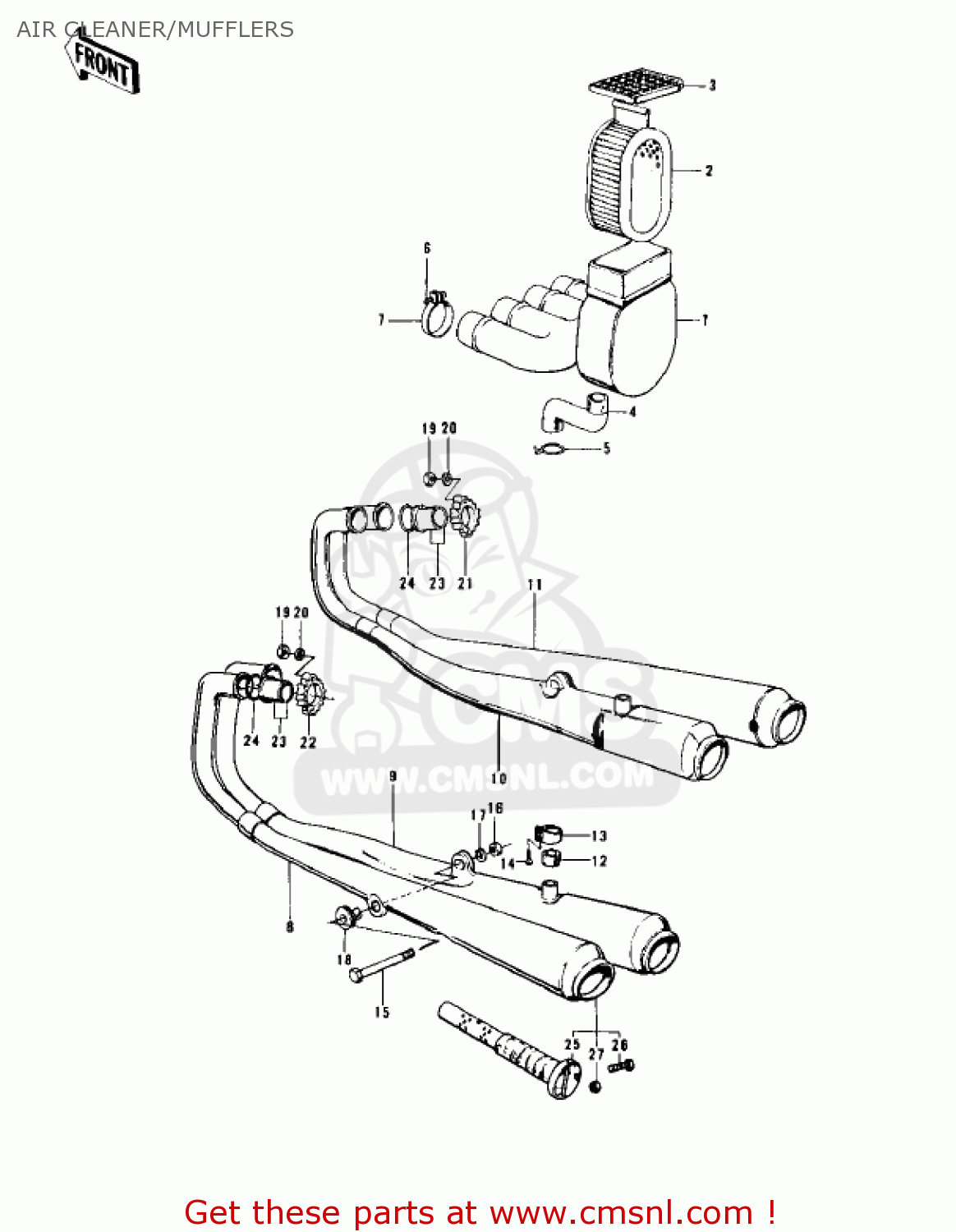

AIR CLEANER/MUFFLERS

ref

part #

description

quantity

1

11011022
ref: 1

CASE-AIR FILTER

€ 246.00

2

11013034
ref: 2

ELEMENT-AIR FILTER

€ 27.00

3

11012030
ref: 3

CAP-AIR CLEANER

€ 2.00

4

92059078
ref: 4

PIPE,BREATHER

€ 3.50

5

92037028
ref: 5

CLAMP,TUBE

€ 2.50

6

220B0535
ref: 6

SCREW-PAN-CROS

€ 2.00

7

92123002
ref: 7

CLAMP-AIR INLET

€ 5.50

8

18001227
ref: 8

MUFFLER,LH,U,30386S

€ 551.50

9

18001228
ref: 9

MUFFLER,LH,L,30386S

€ 551.50

10

18001183
ref: 10

MUFFLER ASSY,R.H LOW

€ 535.50

11

18001184
ref: 11

MUFFLER ASSY,R.H UPP

€ 535.50

12

92059079
ref: 12

PIPE-MUFFLER CONNECT

€ 12.00

12

92059120
ref: 12

PIPE,MUFFLER CONNECT

€ 12.00

13

92037103
ref: 13

CLAMP,MUFFLER CONNECT

€ 9.50

14

220B0516
ref: 14
Z1

SCREW-PAN-CROS

€ 2.50

14

220B0616
ref: 14
Z1-A/B

SCREW-PAN HEAD,6X16

€ 2.50

15

92003180
ref: 15
Z1

BOLT HEX HEAD,10X104

€ 16.50

15

92003180
ref: 15
Z1/A

BOLT HEX HEAD,10X104

€ 16.50

15

92003180
ref: 15
Z1-B

BOLT HEX HEAD,10X104

€ 16.50

16

920151429
ref: 16
Z1/A

NUT,10MM

€ 4.50

16

92019021
ref: 16
Z1-B

NUT,LOCK,10M/M

€ 2.00

17

410B1000
ref: 17

WASHER-PLAIN-SMALL,10

€ 0.50

18

92092010
ref: 18

BUSHING-MUFFLER FITT

€ 11.00

19

311B0600
ref: 19

NUT,6MM

€ 0.50

20

461F0600
ref: 20

WASHER-SPRING,6MM

€ 0.50

21

18069045
ref: 21

HOLDER-EXHAUST PIPE

€ 60.50

22

18069046
ref: 22

HOLDER-EXHAUST PIPE

€ 64.00

23

92027170
ref: 23

COLLAR,EXHAUST PIPE

€ 8.00

24

110091906
ref: 24

GASKET,EXHAUST PIPE H (NAS)

€ 7.00

25

18033058
ref: 25

BAFFLE TUBE

€ 72.00

26

112G0616
ref: 26

BOLT UPSET,6X16

€ 1.00

27

311B0600
ref: 27

NUT,6MM

€ 0.50

all assemblies
