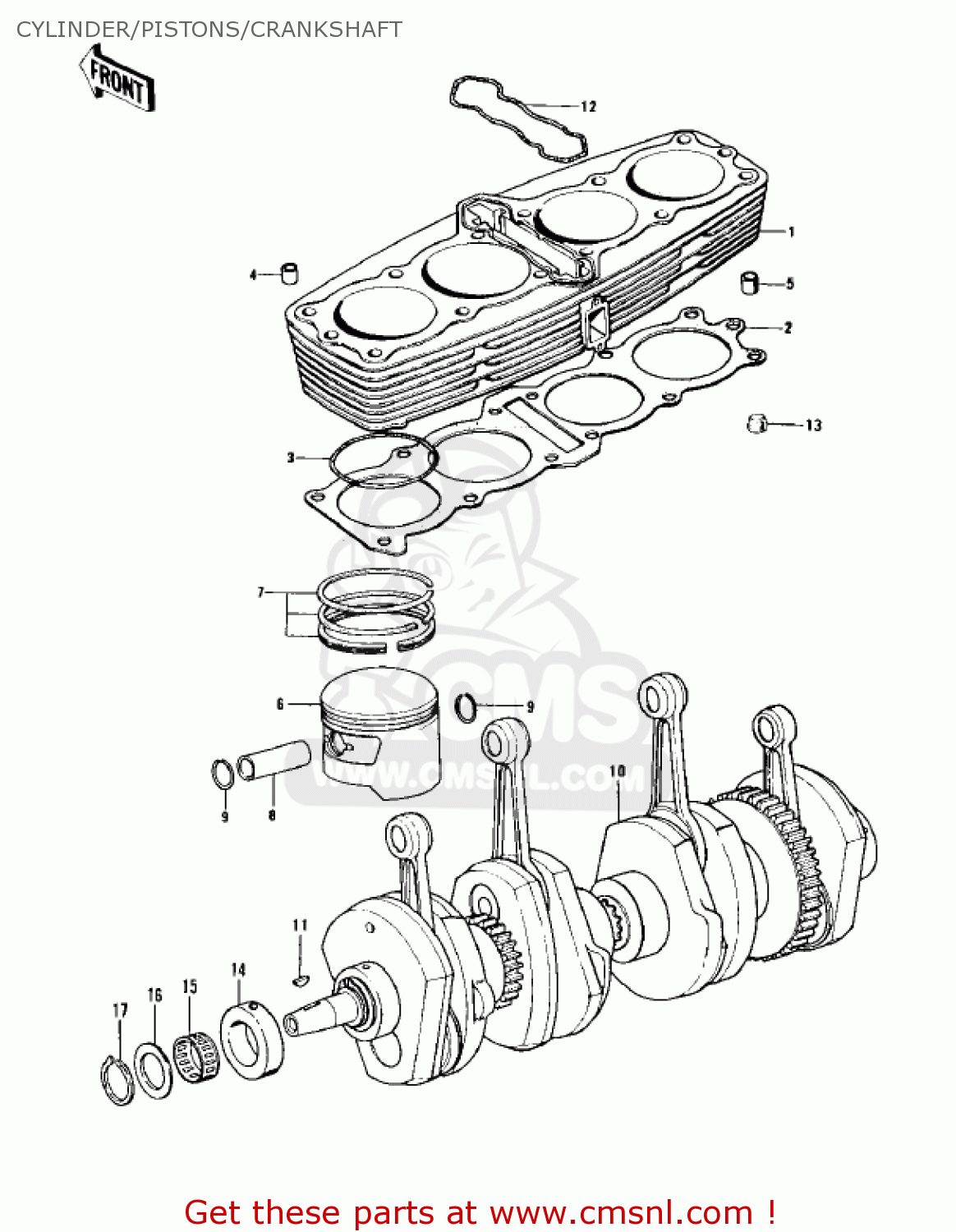

CYLINDER/PISTONS/CRANKSHAFT

ref

part #

description

quantity

1

11005136
ref: 1
Z1

CYLINDER

€ 934.00

1

110051362H
ref: 1
Z1-A/B

CYLINDER,BARREL

€ 801.50

2

11009030
ref: 2

GASKET-CYLINDER BASE (MCA)

€ 43.00

3

92055054
ref: 3

RING-O,73MM

€ 12.50

4

920431037
ref: 4

PIN,DOWEL,10X8.2X14

€ 0.50

5

920431266
ref: 5

PIN,11X14X12.3

€ 1.00

6

13001054
ref: 6

PISTON-ENGINE,STD

€ 77.50

6

13029058
ref: 6

PISTON-ENGINE-L,O/S 0

€ 167.00

6

13027056
ref: 6

PISTON-ENGINE-LL,O/S

€ 92.00

7

130085005
ref: 7

RING-SET-PISTON,STD

€ 81.50

7

130255004
ref: 7

RING-SET-PISTON L,O/S

€ 97.00

7

130245005
ref: 7

RING-SET-PISTON LL,O/

€ 97.00

8

13002022
ref: 8

PIN-PISTON

€ 37.00

9

92036021
ref: 9

CIRCLIP-PISTON PIN

€ 0.50

10

13031043
ref: 10

CRANK&CONROD ASSY

€ 1,211.50

11

92038001
ref: 11

WOODRUFF KEY

€ 3.00

12

92055062
ref: 12

RING-O,CYLINDER RUBER (NAS)

€ 102.00

13

92074030
ref: 13
E/NO. 010000--

PLUG,CYLINDER,16.3X8

€ 4.50

14

92028121
ref: 14

BUSHING, CRANKSHAFT

€ 58.50

15

92046063
ref: 15

BRG,N,PK304016.8X3

€ 13.00

16

92026079
ref: 16

WASHER,30X38X1

€ 6.00

17

480J3000
ref: 17

CIRCLIP-TYPE-C,30MM

€ 3.50
