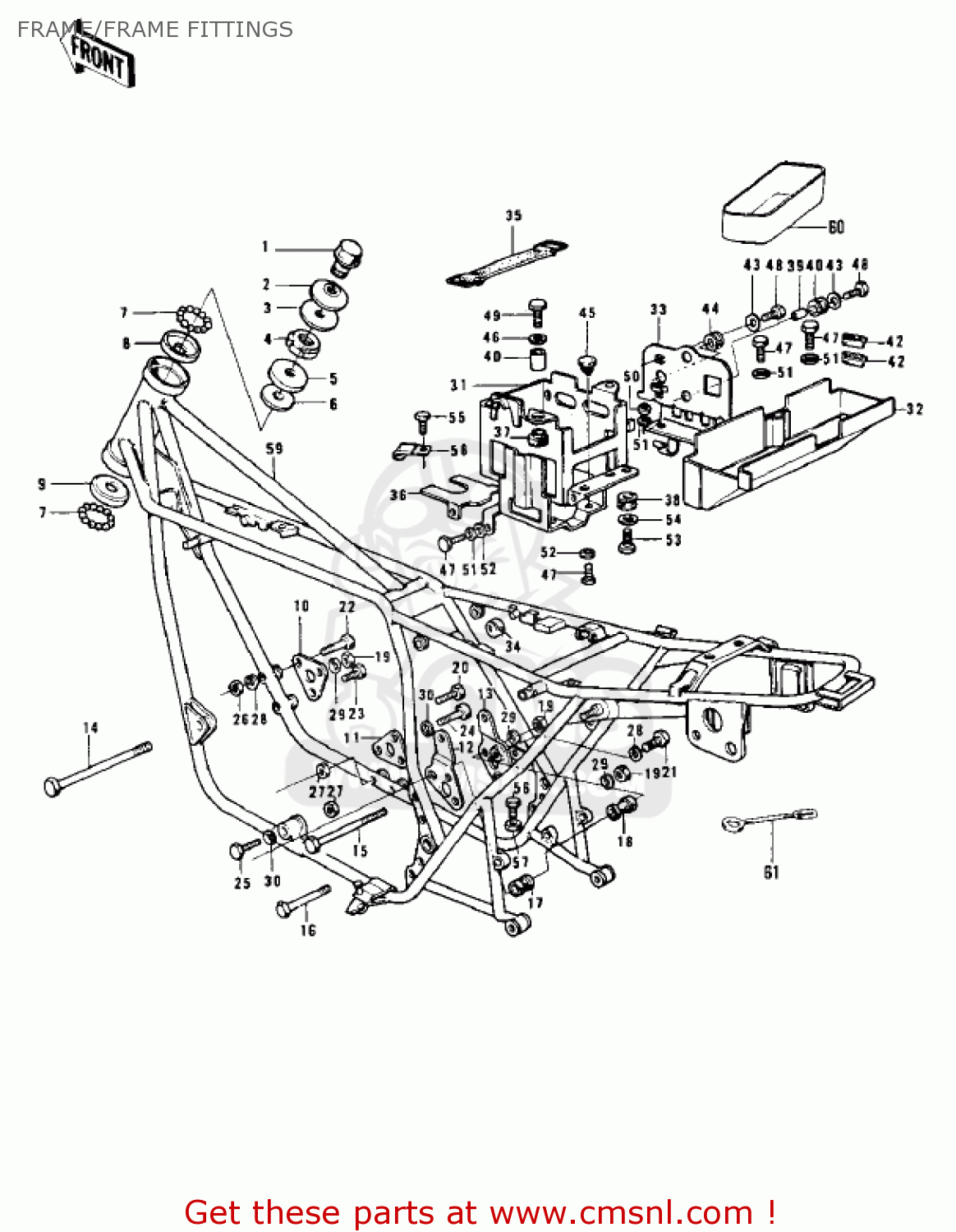

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

92007031
ref: 1

BOLT-STEERG STEM HEAD

€ 17.50

2

92022230
ref: 2

WASHER-STEERG STM HD

€ 7.50

3

46100003
ref: 3

WASHER,WAVE

€ 6.50

4

92090007
ref: 4

NUT-STEERING STEM LCK

€ 8.00

5

45096010
ref: 5

UNAVAILABLE IN PRICE BOOK

€ 0.00

6

92047011
ref: 6

CONE-STRNG STM BRNG

€ 14.50

7

600A0800
ref: 7

BALL-STEEL,1/4

€ 0.50

8

92048006
ref: 8

RACE-STRNG BEARIN-STE

€ 11.50

9

92048008
ref: 9

RACE-STRNG STM BRNG

€ 16.00

10

32030025
ref: 10

BRACKET-ENGINE,FR

€ 11.50

11

32030026
ref: 11

BRACKET-ENGINE,LWR

€ 11.50

12

32030046
ref: 12
Z1/A

PLATE,ENG MOUNT,L.H

€ 9.00

12

32030046
ref: 12
Z1-B

PLATE,ENG MOUNT,L.H

€ 9.00

13

32030028
ref: 13
Z1/A

PLATE-ENG MOUNT R.H

€ 7.50

13

32030045
ref: 13
Z1-B

PLATE,ENG MOUNT,R.H

€ 7.50

14

92091022
ref: 14

BOLT-ENGINE MOUNTING

€ 18.50

15

92091023
ref: 15

BOLT-ENGINE MOUNTING

€ 15.50

16

92003099
ref: 16

BOLT-ENGINE MOUNTING

€ 16.50

17

92027159
ref: 17

COLLAR-ENG MOUNTING

€ 21.00

18

92027160
ref: 18

COLLAR,L=30.5

€ 7.00

19

920151429
ref: 19

NUT,10MM

€ 4.50

20

115G0818
ref: 20

BOLT SMALL-UPSET

€ 2.50

21

920011578
ref: 21

BOLT,FLANGED,8X40

€ 4.00

21

920011577
ref: 21
Z1-B

BOLT,FLANGED,8X35

€ 2.50

22

920011397
ref: 22

BOLT,8X63

€ 1.50

23

110G0859
ref: 23

BOLT,HEX HEAD,8X59

€ 3.50

24

920011265
ref: 24

BOLT,HEX HEAD,12X70

€ 4.50

25

920011262
ref: 25

BOLT,HEX HEAD,12X55

€ 6.00

26

311B0800
ref: 26

NUT,8MM

€ 0.50

27

92016045
ref: 27

NUT,12MM

€ 13.50

28

461F0800
ref: 28

WASHER-SPRING,8MM

€ 0.50

29

461F1000
ref: 29

WASHER-SPRING,10MM

€ 0.50

30

461F1200
ref: 30

WASHER-SPRING,12MM

€ 0.50

31

32097022
ref: 31

CASE-BATTERY

€ 39.00

32

32098019
ref: 32

CASE-TOOL

€ 7.50

33

32129001
ref: 33

BRACKET-ELECTRIC BASE

€ 24.00

34

92075141
ref: 34

DAMPER,BATTERY CASE

€ 3.50

35

92072045
ref: 35
Z1

BAND-OIL TANK

€ 10.00

35

92072045
ref: 35
Z1-Z/B

BAND-OIL TANK

€ 10.00

36

32105005
ref: 36

STAY-AIR CLEANER

€ 14.50

37

92075146
ref: 37

DAMPER RUBBER-BTT CAS

€ 2.00

38

92075161
ref: 38

DAMPER RUBBER-BATTERY

€ 3.00

39

92027165
ref: 39

COLLAR,6.5X8.5X7.5

€ 3.00

40

92027156
ref: 40

COLLAR-BATTERY CASE

€ 3.00

41

92075149
ref: 41

DAMPER

€ 6.00

42

32103003
ref: 42

DAMPER,RECTIFIER RUBB

€ 3.50

43

92022125
ref: 43

WASHER,6.5X20X1.6

€ 1.00

44

92075051
ref: 44

DAMPER RUBBER

€ 2.50

45

92075078
ref: 45

DAMPER,RUBBER

€ 2.50

46

92022024
ref: 46

WASHER,7X16X1.2

€ 2.50

47

112B0614
ref: 47

BOLT-UPSET 6X14

€ 2.50

48

112G0616
ref: 48

BOLT UPSET,6X16

€ 1.00

49

112G0625
ref: 49

BOLT-UPSET,6X25

€ 4.00

50

312B0600
ref: 50

NUT,6MM

€ 0.50

51

461F0600
ref: 51

WASHER-SPRING,6MM

€ 0.50

52

411B0600
ref: 52

WASHER-PLAIN,6MM

€ 0.50

53

92001115
ref: 53

BOLT-HEAX HEAD,6X14

€ 4.50

54

410B0800
ref: 54

WASHER-PLAIN-SMALL,8M

€ 0.50

55

112G0610
ref: 55

BOLT,6X10

€ 0.50

56

112G0620
ref: 56

BOLT 6X20

€ 1.00

57

311B0600
ref: 57

NUT,6MM

€ 0.50

58

21126008
ref: 58

CLAMP,WIRING HARNESS

€ 3.00

59

320021018
ref: 59

FRAME

€ 1,893.50

60

32099015
ref: 60

CASE,BATTERY

€ 9.00

61

92037134
ref: 61

CLAMP,OVER FLOW PIPE

€ 7.50
