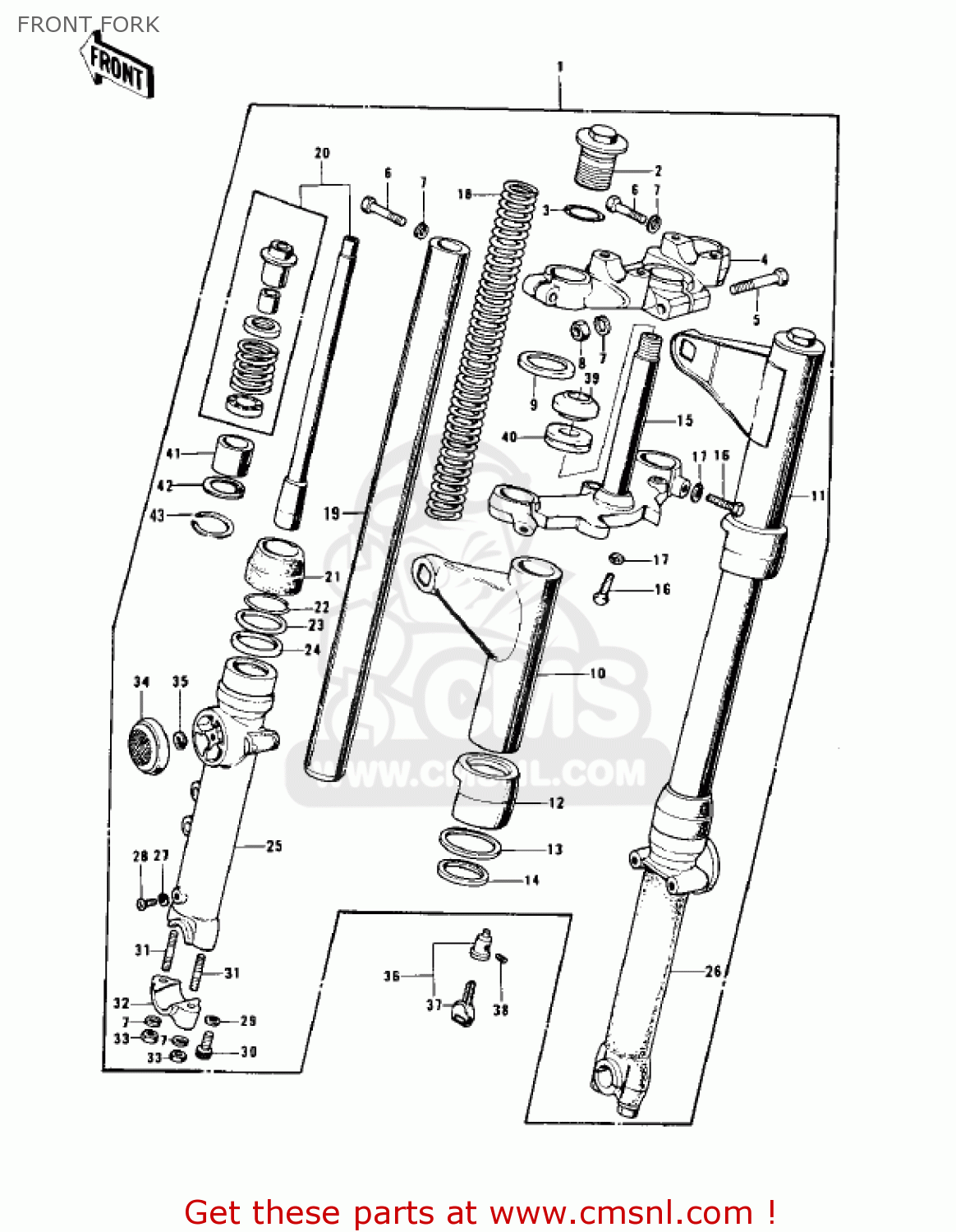

FRONT FORK

ref

part #

description

quantity

1

44001162
ref: 1
Z1

FRONT FORK

€ 3,291.50

1

44001162
ref: 1
Z1-A

FRONT FORK

€ 3,291.50

1

44001162
ref: 1
Z1-B

FRONT FORK

€ 3,291.50

2

44062003
ref: 2

BOLT-FORK TOP

€ 43.00

3

44046015
ref: 3

RING-O,FORK TOP

€ 4.50

4

44039045
ref: 4

HEAD-STEERING STEM

€ 284.50

5

44041038
ref: 5

BOLT-HEX HEAD,8X55

€ 5.50

6

44041045
ref: 6

BOLT-HEX HEAD,8MM

€ 15.00

6

44041045
ref: 6
Z1-A/B

BOLT-HEX HEAD,8MM

€ 15.00

7

461F0800
ref: 7

WASHER-SPRING,8MM

€ 0.50

8

92020007
ref: 8

NUT,CAP,8MM

€ 3.50

9

44064005
ref: 9

PLATE,FORK COVER

€ 9.00

10

44033072
ref: 10
Z1

COVER-FORK,LH

€ 124.00

10

44033072
ref: 10
Z1-A

COVER-FORK,LH

€ 124.00

10

44033072
ref: 10
Z1-B

COVER-FORK,LH

€ 124.00

11

44034072
ref: 11
Z1

COVER-FORK,RH

€ 135.50

11

44034072
ref: 11
Z1-A

COVER-FORK,RH

€ 135.50

11

44034072
ref: 11
Z1-B

COVER-FORK,RH

€ 135.50

12

44064006
ref: 12

GUIDE-FORK COVER

€ 20.50

13

44064008
ref: 13

WASHER-FORK COV GUID

€ 14.50

14

44045038
ref: 14

GASKET,FORK COVER (NAS)

€ 3.50

15

44037049
ref: 15

STEERING STEM

€ 387.00

16

92003064
ref: 16

BOLT-HEX HEAD,12X36

€ 15.00

17

461F1200
ref: 17

WASHER-SPRING,12MM

€ 0.50

18

44026042
ref: 18

SPRING-FORK INNER

€ 41.00

19

44013037
ref: 19

PIPE-FORK INNER

€ 252.00

20

44023007
ref: 20
INCLUDES 41, 42, 43

CYLINDER SET,FORK

€ 70.50

20

44022028
ref: 20
Z1/A

CYLINDER,FORK

€ 70.50

20

44022028
ref: 20
Z1-A/B

CYLINDER,FORK

€ 70.50

21

44010021
ref: 21

SEAL,FORK

€ 43.50

22

44044012
ref: 22

RING-SNAP

€ 17.50

23

44043044
ref: 23

WASHER,OIL SEAL FIT

€ 8.00

24

920491216
ref: 24

SEAL-OIL,FORK OUTER P

€ 16.00

25

44005045
ref: 25

TUBE-L.H FORK OUTER

€ 329.00

26

44006043
ref: 26

TUBE-R.H FORK OUTER

€ 329.00

27

44045002
ref: 27

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

28

220B0408
ref: 28

SCREW-PAN-CROS

€ 0.50

29

44045057
ref: 29

GASKET (NAS)

€ 3.00

30

44041040
ref: 30

BOLT-FORK CYLINDER

€ 4.50

31

920041009
ref: 31

STUD, 8X35

€ 4.00

32

44063003
ref: 32

HOLDER-FRONT AXLE

€ 18.00

33

311B0800
ref: 33

NUT,8MM

€ 0.50

34

28012009
ref: 34

REFLECTOR-REFLEX,RR

€ 17.50

35

92094011
ref: 35

DAMPER,REFLECTOR

€ 3.00

36

27016027
ref: 36

LOCK-ASSY,STEERING

€ 50.50

38

92014016
ref: 38

SCREW, SEAT LOCK

€ 3.50

39

92047012
ref: 39

CONE-STRNG STM BRNG

€ 14.50

40

92056003
ref: 40

OIL SEAL,STEERING STM

€ 6.00

41

44018003
ref: 41
Z1, USE FOR 44023-00

PISTON-FORK

€ 9.00

41

44018009
ref: 41
Z1-A/B, USE FOR 4402

PISTON,FORK

€ 17.00

42

44044008
ref: 42
Z1, USE FOR 44023-00

CIRCLIP-FORK PISTON

€ 7.00

42

44044019
ref: 42
Z1-A/B, USE FOR 4402

CIRCLIP,FORK PISTON

€ 4.50

43

44025005
ref: 43
USE FOR 44023-021/02

FORK PISTON RING

€ 9.50
