TRANSMISSION (-E/NO. W1M 4000)
W2SS COMMANDER 1969 USA CANADA

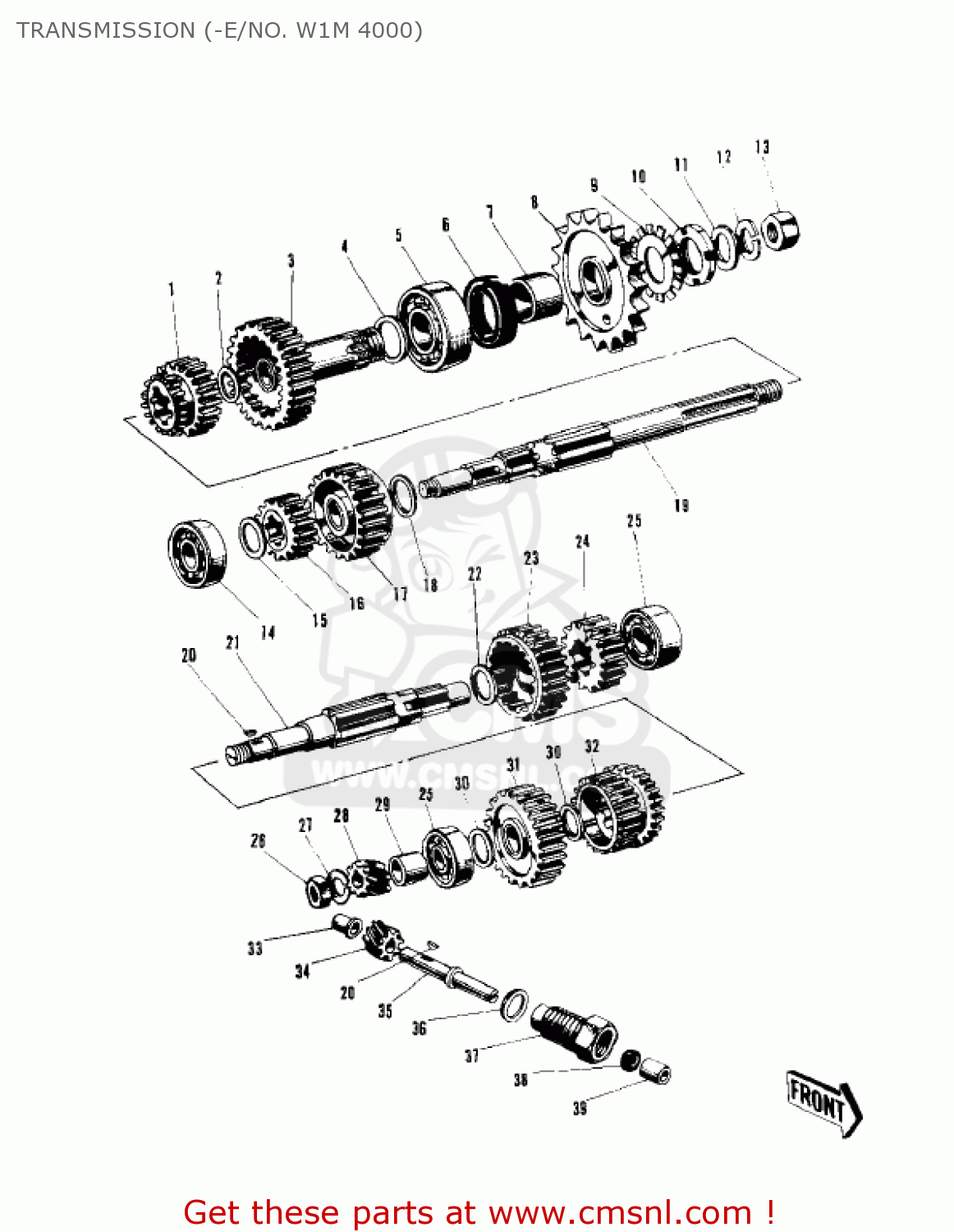

Transmission (-e/no. w1m 4000) diagram W2SS COMMANDER 1969 USA CANADA
TRANSMISSION (-E/NO. W1M 4000) W2SS COMMANDER 1969 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13130011
ref: 1
GEAR,DRIVESHAFT,2ND
€ 144.50
2
92026041
ref: 2
TOP GEAR THRUST WASHER
€ 9.50
3
13136016
ref: 3
TOP GEAR DRIVESHAFT
€ 194.00
4
92026039
ref: 4
TOP GEAR SPACER
€ 9.50
5
92045006
ref: 5
BALL BEARING,#6206N
€ 26.50
6
92050018
ref: 6
OIL SEAL SC405465
€ 17.00
7
92027042
ref: 7
ENGINE SPROCKET SPACER
€ 18.50
8
13144021
ref: 8
ENGINE SPROCKET,19T
€ 30.50
9
92032001
ref: 9
LOCK WASHER,30MM
€ 4.50
10
92015011
ref: 10
NUT,30MM
€ 9.00
11
92026040
ref: 11
MAIN SHAFT THRUST WASHER
€ 20.00
12
461E1600
ref: 12
WASHER SPRING 16MM
€ 1.00
13
315B1600
ref: 13
WHN EXH USE 92015-02
NUT-HEX-FINE,16MM
€ 2.50
13
92015029
ref: 13
NUT,16MM
€ 9.50
14
601A6204
ref: 14
BEARING-BALL,#6204
€ 11.00
15
92026036
ref: 15
MAIN SHAFT THRUST WASHER
€ 12.00
16
13129019
ref: 16
DRIVESHAFT LOW GEAR
€ 71.00
17
13132008
ref: 17
GEAR,DRIVESHAFT,3RD
€ 0.00
18
92026038
ref: 18
SPACER,3RD GEAR
€ 9.50
19
13127014
ref: 19
DRIVESHAFT
€ 216.50
20
92038006
ref: 20
SPEED GEAR WOODRUFF KEY
€ 3.00
21
13128015
ref: 21
OUTPUT SHAFT
€ 95.50
22
92027045
ref: 22
SPACER,2ND GEAR
€ 9.50
23
13131013
ref: 23
GEAR,OUTPUT SHAFT,2ND
€ 146.00
24
13137006
ref: 24
TOP GEAR,OUTPUT SHAFT
€ 77.50
25
601B6302
ref: 25
BEARING-BALL,#6302C3
€ 16.00
26
315B1400
ref: 26
NUT,14MM
€ 1.00
27
461F1400
ref: 27
WASHER-SPRING,14MM
€ 0.50
28
13224002
ref: 28
SPEEDOMETER PINION
€ 0.00
29
92027043
ref: 29
SPEED PINION SPACER
€ 8.00
30
92026017
ref: 30
MAIN SHAFT THRUST WASHER
€ 9.50
31
13129021
ref: 31
LOW GEAR,OUTPUT SHAFT
€ 125.00
32
13133009
ref: 32
GEAR,OUTPUT SHAFT,3RD
€ 146.00
33
92028084
ref: 33
SPEED GEAR SHAFT BUSHING
€ 18.50
34
13225001
ref: 34
SPEEDOMETER GEAR
€ 69.50
35
13226001
ref: 35
SPEED GEAR SHAFT
€ 33.50
36
92065032
ref: 36
SPEEDOMETER GEAR HOUSING GASKET
€ 1.50
37
13227001
ref: 37
HOUSING,SPEED GEAR
€ 33.00
38
92053005
ref: 38
OIL SEAL,VB8178
€ 8.00
39
92027044
ref: 39
SPEED GEAR SHIFT SPACER
€ 4.50
