CHASSIS ELECTRICAL EQUIPMENT
W2SS COMMANDER 1969 USA CANADA

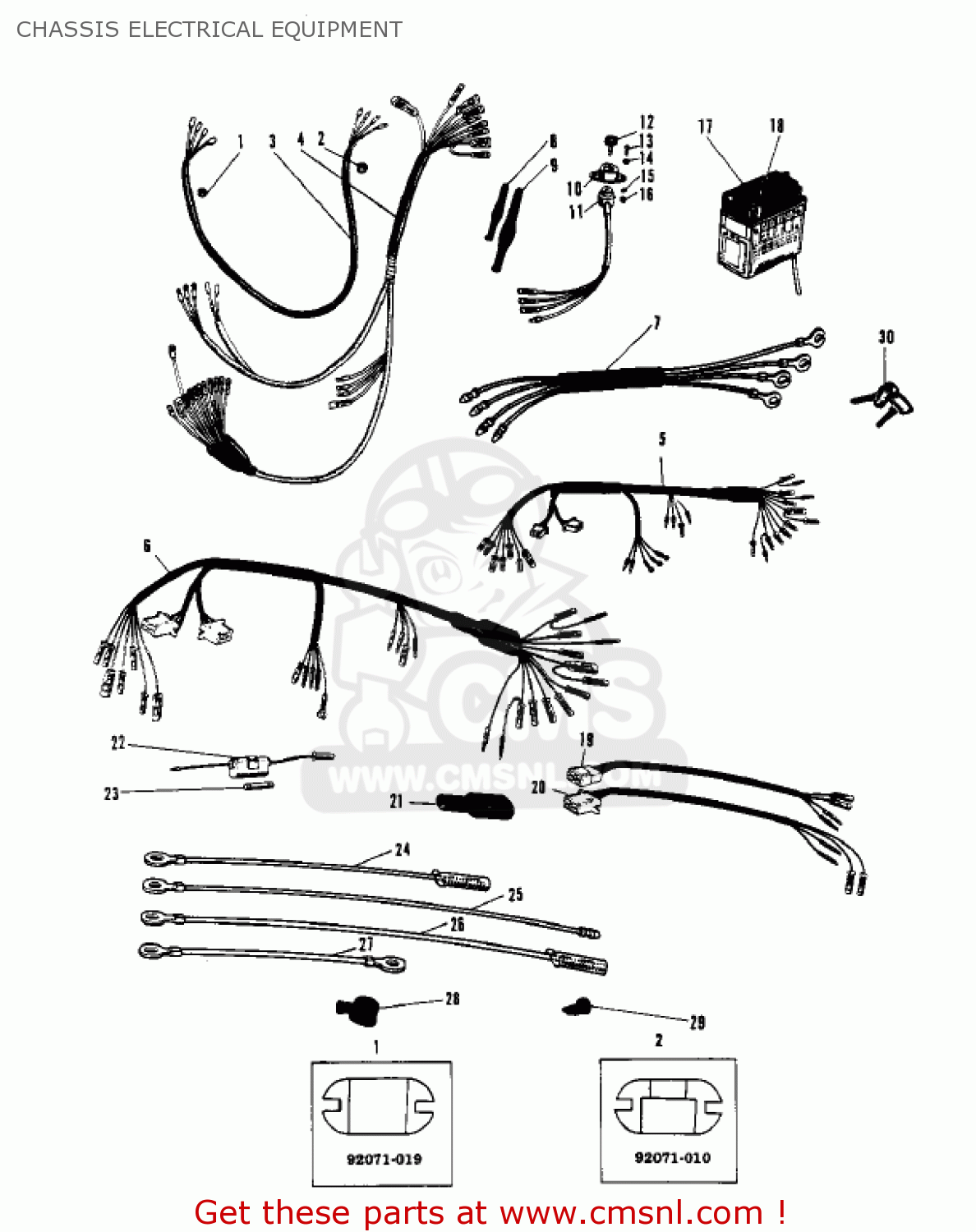

Chassis electrical equipment diagram W2SS COMMANDER 1969 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT W2SS COMMANDER 1969 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92071019
ref: 1
GROMMET,10MM
€ 2.50
2
92071010
ref: 2
GROMMET,HARNESS
€ 2.00
3
26002010
ref: 3
WIRING HARNESS-REAR
€ 5.50
4
26001026
ref: 4
WIRING HARNESS-MAIN
€ 45.50
5
26001027
ref: 5
WIRING HARNESS,MAIN
€ 38.50
6
26001028
ref: 6
WIRING HARNESS,MAIN
€ 182.50
7
26002009
ref: 7
WHN EXH USE 26002-01
REGULATOR WIRE
€ 9.50
7
26002013
ref: 7
REGULATOR WIRE LEAD
€ 18.50
7
26002014
ref: 7
WIRING HARN REGULATOR
€ 15.50
8
92072013
ref: 8
BAND-RUBBER
€ 2.00
8
92072013
ref: 8
BAND-RUBBER
€ 2.00
9
92072018
ref: 9
BAND-RUBBER
€ 1.50
9
92072018
ref: 9
BAND-RUBBER
€ 1.50
9
92072018
ref: 9
BAND-RUBBER
€ 1.50
10
27009002
ref: 10
IGNITION SWITCH HOUSING
€ 18.50
?
27005016
ref: ?
Includes items 11 an
SWITCH ASSY-IGNITION
€ 19.00
12
2700802051
ref: 12
#651
IGNITION KEY SET,#651
€ 23.50
12
2700802052
ref: 12
#652
IGNITION KEY SET,#652
€ 23.50
12
2700802053
ref: 12
#653
IGNITION KEY SET,#653
€ 23.50
12
2700802054
ref: 12
#654
IGNITION KEY SET,#654
€ 23.50
12
2700802055
ref: 12
#655
IGNITION KEY SET,#655
€ 23.50
12
2700802056
ref: 12
#656
IGNITION KEY SET,#656
€ 23.50
12
2700802057
ref: 12
#657
IGNITION KEY SET,#657
€ 23.50
12
2700802058
ref: 12
#658
IGNITION KEY SET,#658
€ 23.50
13
220B0616
ref: 13
SCREW-PAN HEAD,6X16
€ 2.50
14
410B0600
ref: 14
WASHER-PLAIN-SMALL,6M
€ 0.50
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
311B0600
ref: 16
NUT,6MM
€ 0.50
?
K26012016
ref: ?
Includes items 17 an
BATTERY,YUA,12N7-3B
€ 106.50
18
26013002
ref: 18
SCREW-BATTERY TERMNAL
€ 1.50
19
26002015
ref: 19
WIRING HARNESS GRIP
€ 13.50
20
26002020
ref: 20
WIRING HARN HEADLAMP
€ 18.50
21
26009001
ref: 21
WIRING HARNESS COVER
€ 4.50
?
26004026
ref: ?
Includes items 22 an
FUSE-ASSY
€ 13.50
?
26004005
ref: ?
Includes items 22 an
FUSE ASSY
€ 8.50
23
26006001
ref: 23
WHN EXH USE 26006-00
FUSE 10A
€ 2.50
23
26006002
ref: 23
FUSE 20A
€ 2.00
24
26011016
ref: 24
L=160 M/M
LEAD WIRE,B
€ 6.50
25
26011015
ref: 25
LEAD WIRE A
€ 1.50
26
26010016
ref: 26
L=280 M/M
BATTERY WIRE LEAD
€ 6.50
27
26010017
ref: 27
WIRE-BATTERY GROUND
€ 2.50
28
92073001
ref: 28
CAP-BAT TERMINAL RUBB
€ 8.50
29
92073003
ref: 29
CAP-IGNITION COIL
€ 2.00
29
92073003
ref: 29
CAP-IGNITION COIL
€ 2.00
30
2700802090
ref: 30
KEY SET,#690
€ 17.00
30
2700802091
ref: 30
KEY SET,#691
€ 17.00
30
2700802092
ref: 30
KEY SET,#692
€ 17.00
30
2700802093
ref: 30
KEY SET,#693
€ 17.00
