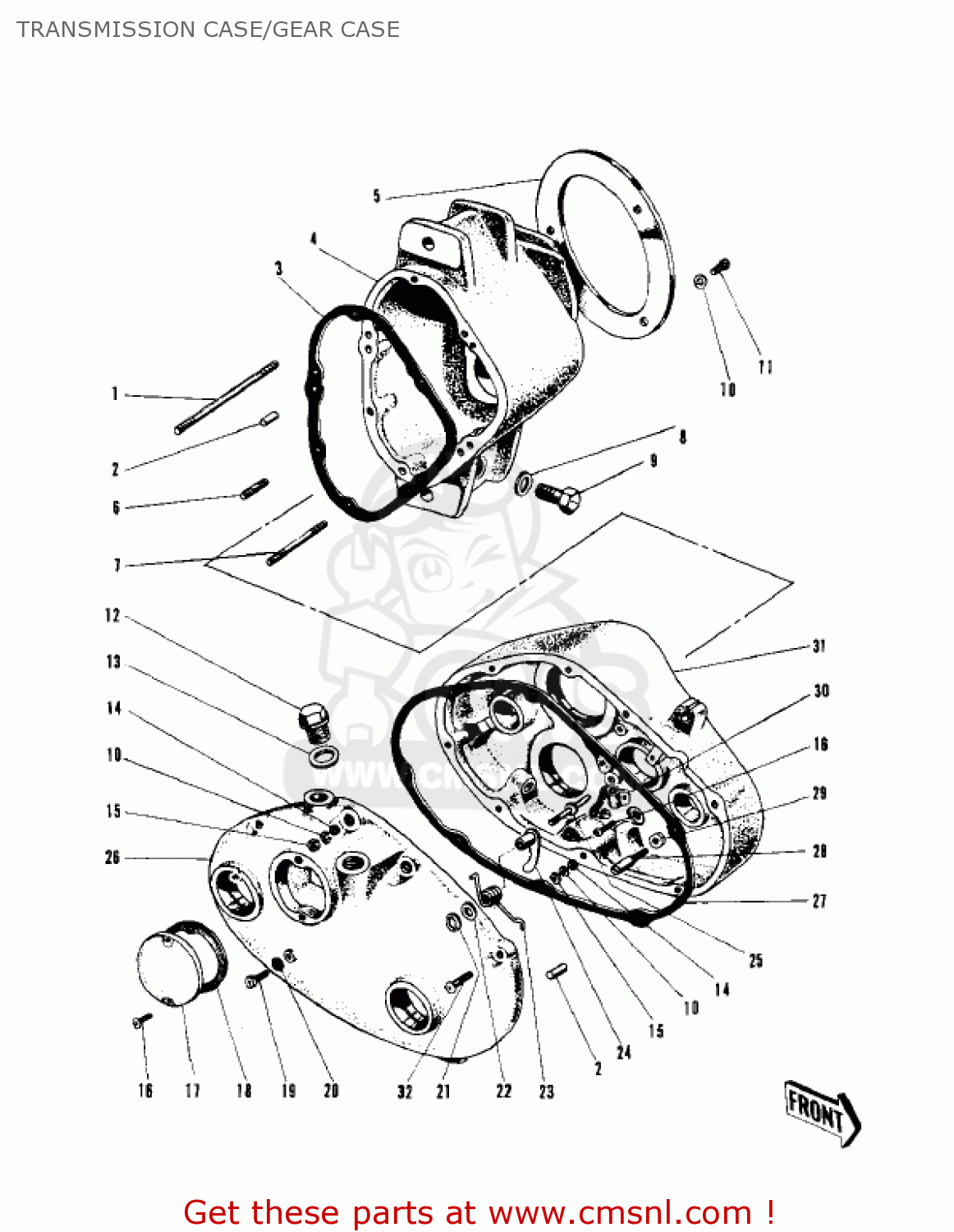

TRANSMISSION CASE/GEAR CASE

ref

part #

description

quantity

1

92004015
ref: 1

STUD,6X78

€ 9.50

2

552A0814
ref: 2

PIN DOWEL 8X14

€ 0.50

3

14058001
ref: 3

GASKET,GEAR BOX

€ 6.00

4

14054001
ref: 4

GEAR BOX

€ 264.50

5

14061001
ref: 5

DUST SHIELD PLATE

€ 13.50

6

172G0618
ref: 6

STUD,6X18

€ 1.00

7

172G0650
ref: 7

STUD,6X50

€ 5.50

8

92065036
ref: 8

DRAIN PLUG GASKET

€ 3.00

9

113G1014
ref: 9

BOLT,HEX HEAD,10X14

€ 2.50

10

461F0600
ref: 10

WASHER-SPRING,6MM

€ 0.50

11

112G0610
ref: 11

BOLT,6X10

€ 0.50

12

92066009
ref: 12

OIL FILLER PLUG

€ 10.50

13

92065034
ref: 13

OIL FILLER PLUG GASKET

€ 9.50

14

410B0600
ref: 14

WASHER-PLAIN-SMALL,6M

€ 0.50

15

311B0600
ref: 15

NUT,6MM

€ 0.50

16

220B0612
ref: 16

SCREW-PAN HEAD,6X12

€ 1.00

17

14040002
ref: 17
WHN EXH USE 14028-00

CAP-CLUTCH HOLE

€ 1.50

17

14028004
ref: 17

CAP-HOLE

€ 3.50

18

14049003
ref: 18

GASKET-HOLE CAP (MCA)

€ 3.50

19

220B0608
ref: 19

SCREW-PAN HEAD,6X8

€ 0.50

20

92065035
ref: 20

GASKET,OIL LEVEL SCRW (NAS)

€ 2.50

21

482J6000
ref: 21

CIRCLIP-TYPE-E,6MM

€ 0.50

22

92022091
ref: 22

WASHER

€ 2.50

23

92083008
ref: 23

CHANGE DRUM LEVER SPRING

€ 17.00

24

13168009
ref: 24

GEAR CHANGE DRUM LEVER

€ 6.50

25

92043018
ref: 25

CHANGE DRUM LEVER PIN

€ 9.50

26

14056001
ref: 26

TRANSMISSION CASE COVER

€ 264.50

27

14058002
ref: 27

GASKET-MISSION CASE (MCA)

€ 13.50

28

92043014
ref: 28

CHANGE PEDAL SPRNG PIN

€ 8.00

29

312B0600
ref: 29

NUT,6MM

€ 0.50

30

14062001
ref: 30

NEUTRAL SWITCH CORD CLAMP

€ 3.00

31

14055001
ref: 31

CASE-TRANSMISSION

€ 62.00

32

220B0620
ref: 32

SCREW-PAN HEAD,6X20

€ 2.50
