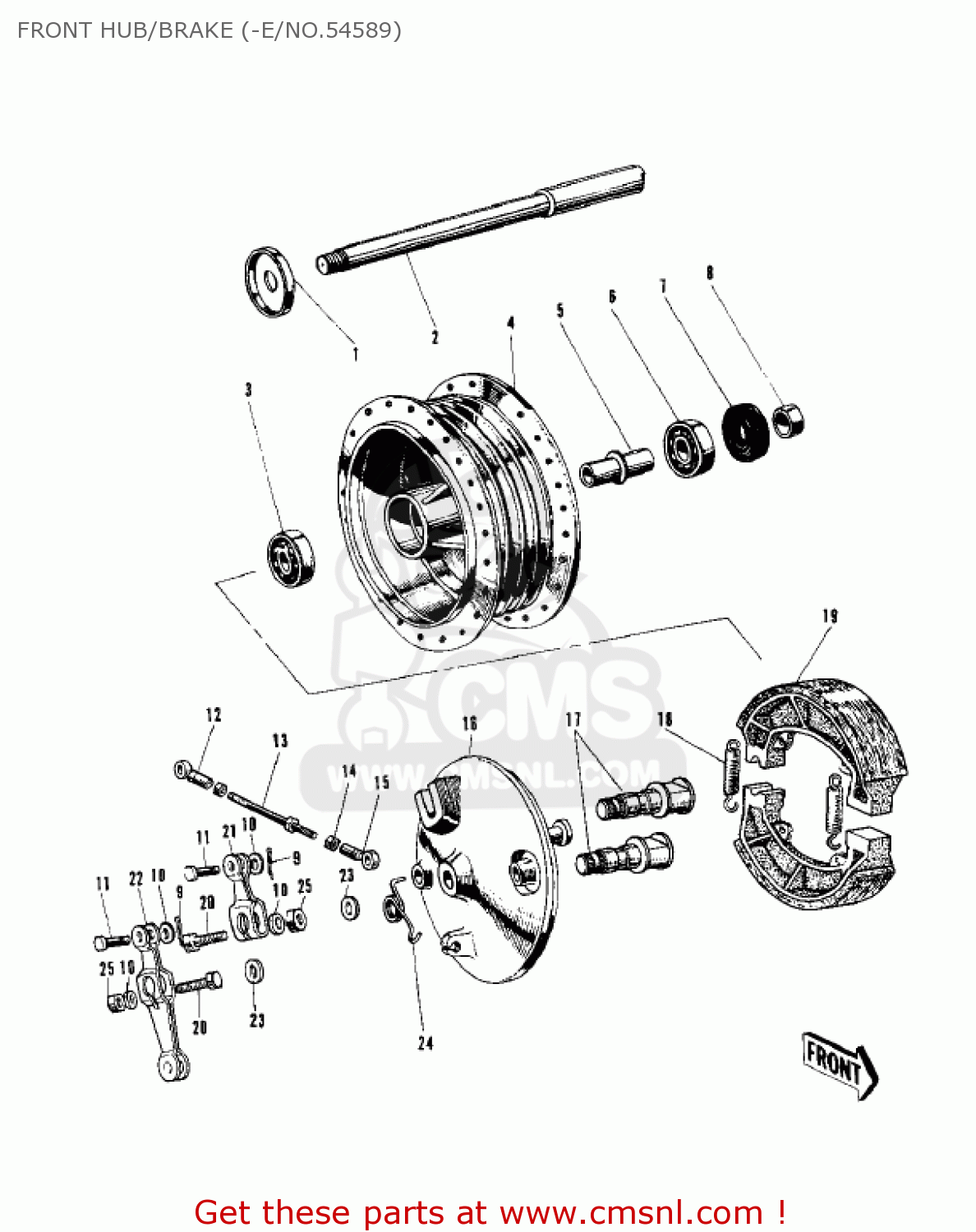

FRONT HUB/BRAKE (-E/NO.54589)

ref

part #

description

quantity

1

41042005
ref: 1

DUST SHIELD-FRONT HUB

€ 3.00

2

41068020
ref: 2
WHN EXH USE 41068-02

AXLE-FRONT

€ 22.50

2

41068020
ref: 2

AXLE-FRONT

€ 22.50

?

41034011
ref: ?
Includes items 3 - 7

FRONT BRAKE DRUM ASSEMBLY

€ 0.00

3

601B6303Z
ref: 3

BEARING-BALL,#6303ZC3

€ 17.50

5

41039010
ref: 5
L=65 M/M

FRONT AXLE BEARING SPACER

€ 33.50

6

601B6303
ref: 6

BEARING-BALL,#6303C3

€ 24.00

7

654A254708
ref: 7

OIL SEAL-FRONT AXLE

€ 17.00

8

41069009
ref: 8

COLLAR-AXLE OIL SEAL

€ 7.50

?

41035016
ref: ?
Includes items 9 - 2

FRONT BRAKE PANEL ASSEMBLY

€ 0.00

9

550D1210
ref: 9

PIN-COTTER,1.2X10

€ 1.50

10

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

11

41055003
ref: 11

PIN

€ 5.50

12

41058007
ref: 12
FOR 41057-013

BRAKE CONNECTING ROD END,B

€ 18.50

12

41058003
ref: 12
FOR 41057-003

ROD END-BRK CONNECT B

€ 6.00

12

41058009
ref: 12
FOR 41057-011

RODEND-BRAKE

€ 13.00

13

41057013
ref: 13
D=5 M/M

BRAKE CAM LEVER CONNECTING ROD

€ 52.50

13

41057003
ref: 13
D=5 M/M

BRAKE CAM LEVER CONNECTING ROD

€ 45.00

13

41057011
ref: 13
D=5 M/M

ROD-BRK CAM LEV CONCT

€ 11.50

14

311B0600
ref: 14
FOR 41057-013

NUT,6MM

€ 0.50

14

311B0500
ref: 14
FOR 41057-003

NUT-HEX

€ 0.50

14

311B0500
ref: 14
FOR 41057-011

NUT-HEX

€ 0.50

15

41058006
ref: 15
FOR 41057-013

BRAKE CONNECTING ROD END,A

€ 15.50

15

41058002
ref: 15
FOR 41057-003

ROD END-BRK CONNECT A

€ 12.00

15

41058008
ref: 15
FOR 41057-011

RODEND-BRAKE

€ 13.00

17

41050007
ref: 17

CAM SHAFT-FRONT BRAKE

€ 35.50

17

41049012
ref: 17

SPRING, BRKE SHOE

€ 6.00

19

41049012
ref: 19

SPRING, BRKE SHOE

€ 6.00

20

112G0630
ref: 20

BOLT-UPSET

€ 1.00

21

41053012
ref: 21

LEVER-BRAKE CAM

€ 19.50

22

41053011
ref: 22

LEVER-BRAKE CAM

€ 28.00

23

41051001
ref: 23

DUST SHIELD-BRAKE CAM

€ 2.50

24

41056002
ref: 24

FRONT BRAKE CAM LEVER SPRING

€ 23.50

25

311B0600
ref: 25

NUT,6MM

€ 0.50

all assemblies
