Genuine unknown Kawasaki Parts delivered quickly!


METERS/LIGHTS (EARLY PRODUCTION)

W2SS COMMANDER 1969 USA CANADA

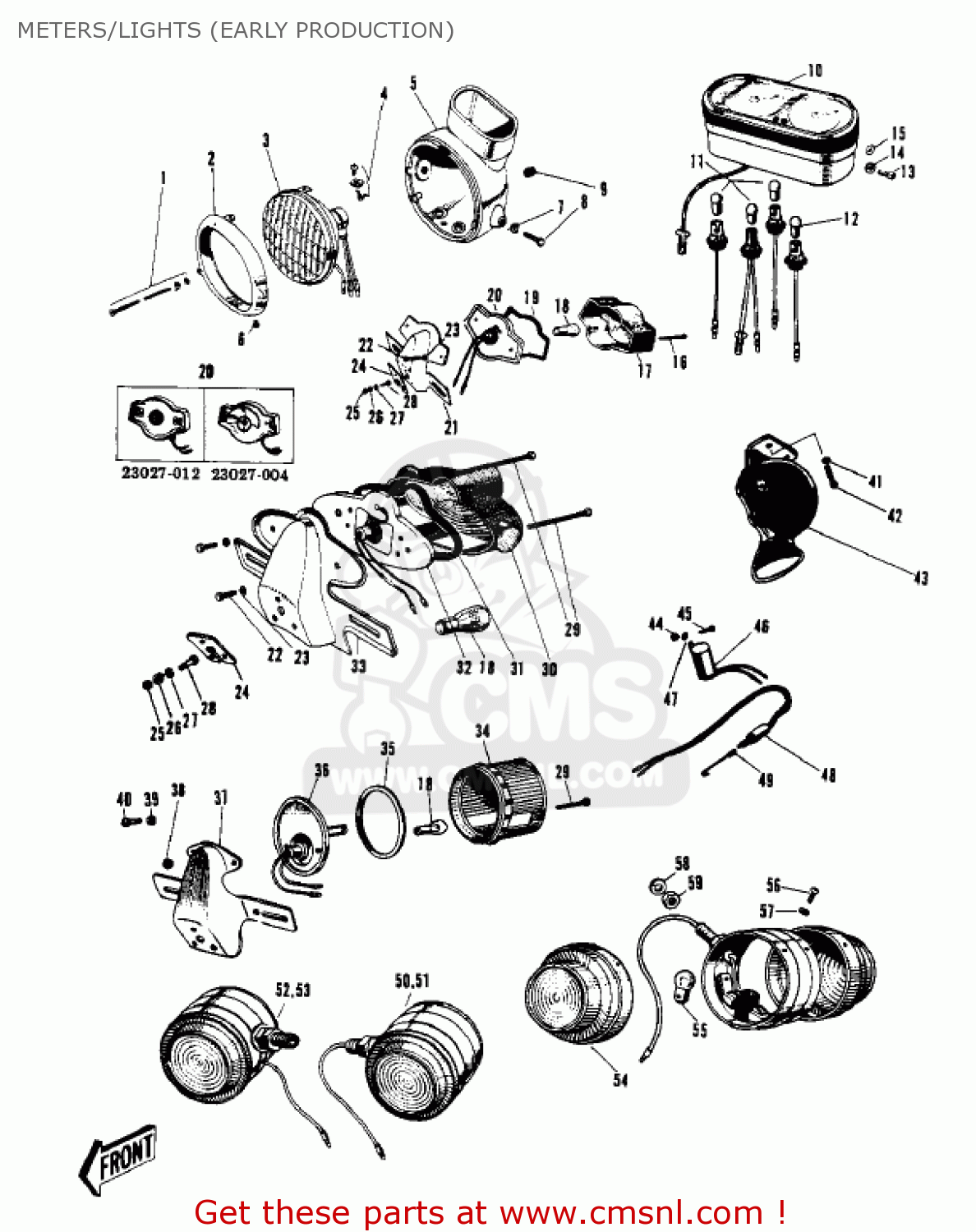

Meters/lights (early production) diagram W2SS COMMANDER 1969 USA CANADA

METERS/LIGHTS (EARLY PRODUCTION) W2SS COMMANDER 1969 USA CANADA
METERS/LIGHTS (EARLY PRODUCTION) W2SS COMMANDER 1969 USA CANADA
METERS/LIGHTS (EARLY PRODUCTION) W2SS COMMANDER 1969 USA CANADA
prices are in EUR
ref
part #
description
quantity
?
2300102110
ref: ?
Includes items 1 - 6
HEADLAMP ASSEMBLY,BLACK
€ 216.50
?
2300102124
ref: ?
Includes items 1 - 6
HEADLAMP ASSEMBLY,CANDYTONE RED
€ 194.00
?
230012127
ref: ?
Includes items 1 - 6
UNAVAILABLE IN PRICE BOOK
€ 0.00
1
23013002
ref: 1
FOCUS ADJUSTING SET SCREW
23013002
€ 6.50
2
23006017
ref: 2
RIM-HEAD LAMP
23006017
€ 27.00
3
23007025
ref: 3
SEALED BEAM UNIT
23007025
€ 88.50
4
23015002
ref: 4
LAMP-ASSY, LICENSE
€ 1.00
5
2300501710
ref: 5
BLACK
HEADLAMP BODY,BLACK
€ 100.50
5
2300501724
ref: 5
CANDYTONE RED
BODY-HEAD LAMP,C.RED
€ 47.50
5
2300501727
ref: 5
CANDYTONE BLUE
BODY-HEAD LAMP,C.BLUE
€ 47.50
6
222E0508
ref: 6
SCREW-OVL CNTSNK,5X8
222E0508
€ 2.00
7
461F1000
ref: 7
WASHER-SPRING,10MM
461F1000
€ 0.50
8
92007045
ref: 8
BOLT, HEX HEAD, 10X25
€ 6.00
9
850A1301
ref: 9
GROMMET,13MM
€ 1.00
?
25003005
ref: ?
Includes items 10 -
SPEEDOMETER ASSEMBLY,MPH
€ 398.50
?
25003003
ref: ?
Includes items 10 -
SPEEDOMETER ASSY KPH
€ 96.00
11
92069018
ref: 11
BULB 12V 3W
92069018
€ 4.00
12
92069017
ref: 12
BULB 12V 1.5W
92069017
€ 4.00
13
220E0508
ref: 13
SCREW-PAN HEAD,5X8
€ 2.00
14
461F0500
ref: 14
WASHER-SPRING,5MM
461F0500
€ 0.50
15
410B0500
ref: 15
WASHER-PLAIN-SMALL,5M
410B0500
€ 0.50
?
23025019
ref: ?
Includes items 16 -
TAIL LAMP ASSEMBLY
€ 89.00
16
222E0360
ref: 16
SCREW-OVL CNTSNK,3X60
222E0360
€ 3.00
17
23026017
ref: 17
LENS,TAIL LAMP
23026017
€ 54.00
18
92069059
ref: 18
BULB,12V 32/3CP
92069059
€ 5.50
19
23028007
ref: 19
GASKET-TAIL LAMP LENS (NAS)
23028007
€ 3.00
20
23027004
ref: 20
WHN EXH USE 23027-01
SOCKET-TAIL LAMP
€ 9.50
20
23027012
ref: 20
SOCKET-TAIL LAMP
23027012
€ 7.00
21
23036003
ref: 21
BKT-LICENSE PLT
€ 16.00
22
110N0510
ref: 22
BOLT-HEX HEAD,5X10
€ 0.50
23
461F0500
ref: 23
WASHER-SPRING,5MM
461F0500
€ 0.50
24
35039001
ref: 24
WHN EXH USE 35039-00
TAIL LAMP SHOCK DAMPER
€ 8.00
24
35039005
ref: 24
DAMPER,TAIL LAMP
35039005
€ 6.50
25
312B0600
ref: 25
NUT,6MM
312B0600
€ 0.50
26
311B0600
ref: 26
NUT,6MM
311B0600
€ 0.50
27
461F0600
ref: 27
WASHER-SPRING,6MM
461F0600
€ 0.50
28
112G0618
ref: 28
BOLT-UPSET
112G0618
€ 0.50
28
112G0625
ref: 28
FOR 35039-001
BOLT-UPSET,6X25
112G0625
€ 4.00
28
110R0635
ref: 28
FOR 35039-003
BOLT 6X35
€ 3.50
?
23025027
ref: ?
Includes items 18 an
LAMP ASSY, TAIL
€ 43.50
29
220E0450
ref: 29
SCREW-PAN HEAD,4X50
220E0450
€ 3.00
30
23026010
ref: 30
LENS,TAIL LAMP
23026010
€ 64.50
31
23028008
ref: 31
GASKET-TAIL LAMP (NAS)
23028008
€ 4.00
32
23027009
ref: 32
SOCKET-TAIL LAMP
€ 18.00
33
23036002
ref: 33
BKT-LICENSE PLT
€ 25.50
?
23025023
ref: ?
Includes items 18 an
TAIL LAMP ASSEMBLY
€ 159.50
34
23026012
ref: 34
TAIL LAMP LENS
€ 3.00
35
23028010
ref: 35
TAIL LAMP GASKET
23028010
€ 4.50
36
23027013
ref: 36
TAIL LAMP SOCKET
€ 35.00
37
23036004
ref: 37
LICENSE PLATE BRACKET
€ 67.50
38
92073006
ref: 38
CAP,RUBBER
€ 0.00
39
461F0600
ref: 39
WASHER-SPRING,6MM
461F0600
€ 0.50
40
220E0612
ref: 40
SCREW-PAN HEAD,6X12
220E0612
€ 3.00
41
461F0800
ref: 41
WASHER-SPRING,8MM
461F0800
€ 0.50
42
115G0816
ref: 42
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
43
27003011
ref: 43
HORN
€ 74.50
44
310B0600
ref: 44
NUT,6MM
€ 0.50
45
115G0816
ref: 45
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
46
27002004
ref: 46
WHN EXH USE 27002-00
RELAY-TURN SIGNAL
€ 16.50
46
27002008
ref: 46
RELAY-TURN SIGNAL
€ 17.00
47
410B0600
ref: 47
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
48
27010006
ref: 48
SWITCH,BRAKE LAMP
€ 28.50
49
27011009
ref: 49
SPRING-BRAKE LAMP SW
27011009
€ 4.50
50
23040013
ref: 50
LAMP-FRNT TURN SIG RH
€ 11.50
51
23042012
ref: 51
LAMP-FRNT TURN SIG LH
€ 13.00
52
23043011
ref: 52
LAMP-TURN SIGNAL,R.H
€ 10.00
53
23044009
ref: 53
LAMP-REAR TURN SIG LH
€ 10.00
54
23048004
ref: 54
LENS-TURN SIGNAL LAMP
23048004
€ 4.50
55
92069019
ref: 55
BULB 12V 8W
€ 2.50
56
220E0308
ref: 56
SCREW-PAN-CROS,3X8
220E0308
€ 2.00
57
461F0300
ref: 57
WASHER-SPRING,3MM
461F0300
€ 0.50
58
461F1000
ref: 58
WASHER-SPRING,10MM
461F1000
€ 0.50
59
315B1000
ref: 59
NUT,10MM
315B1000
€ 0.50
