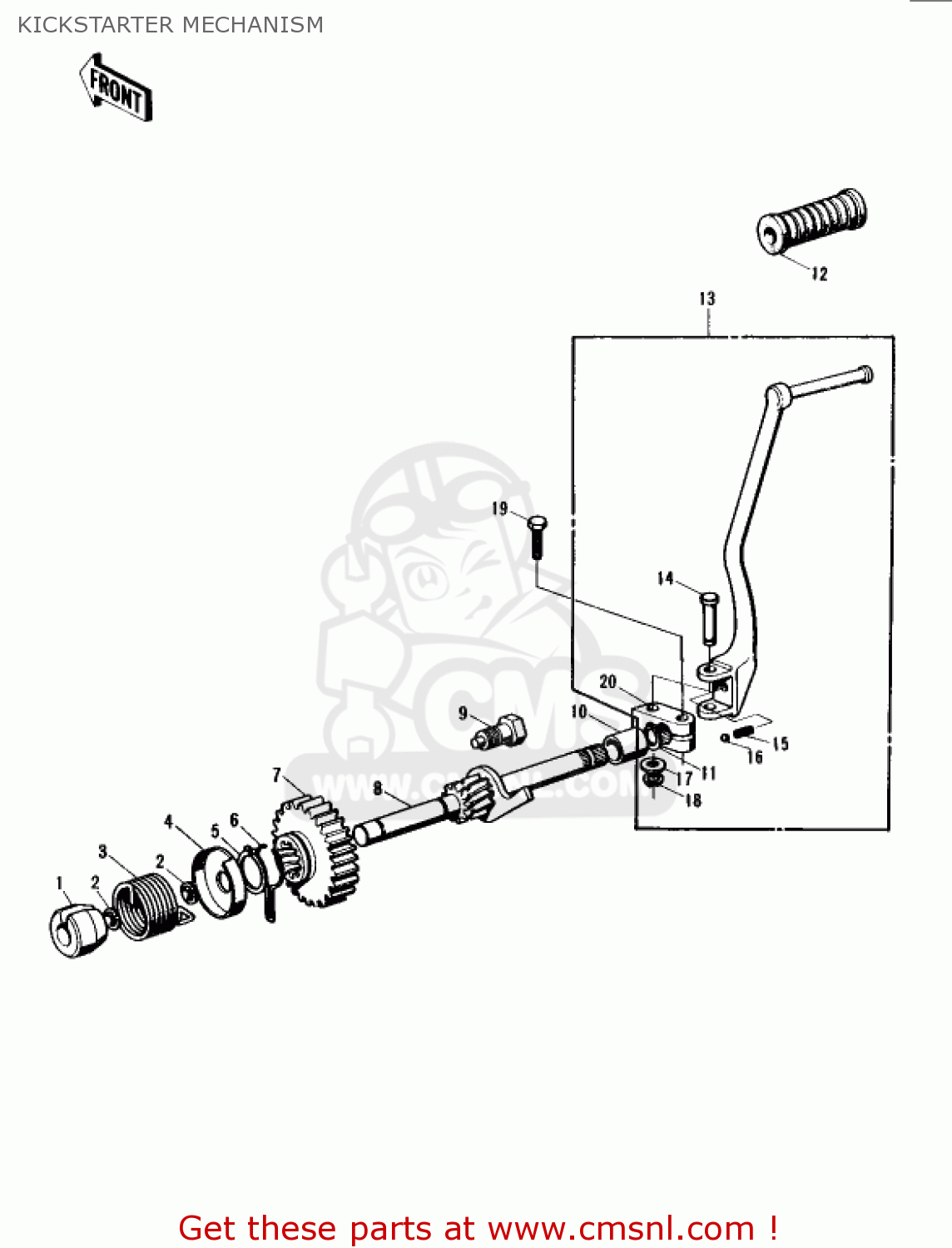

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

13070001
ref: 1

GUIDE,KICK SPRING

€ 9.00

2

482J0100
ref: 2

CIRCLIP-TYPE-E,10MM

€ 0.50

3

92081021
ref: 3

SPRING-KICKSTARTER

€ 8.00

4

13071003
ref: 4

HOLDER,KICK SPRING

€ 1.50

5

480J2600
ref: 5

CIRCLIP-TYPE-C,26MM

€ 1.50

6

13077002
ref: 6

HOLDER-KICK GEAR

€ 2.50

7

13068024
ref: 7

GEAR-KICKSTARTER

€ 60.00

8

13245008
ref: 8

SHAFT,KICKSTARTER

€ 44.50

9

13072006
ref: 9

STOPPER-KICKSTARTER

€ 12.50

10

92028072
ref: 10

BUSH

€ 13.00

11

480J1600
ref: 11

CIRCLIP-TYPE-C,16MM

€ 2.50

12

13063004
ref: 12

DAMPER,KICK PEDAL

€ 6.50

13

13058038
ref: 13

PEDAL-KICKSTARTER

€ 127.50

14

92043068
ref: 14

PIN-KICKSTARTER PEDAL

€ 8.50

15

92081020
ref: 15

SPRING-KICK PEDAL

€ 2.50

16

600A0800
ref: 16

BALL-STEEL,1/4

€ 0.50

17

410B1000
ref: 17

WASHER-PLAIN-SMALL,10

€ 0.50

18

482J8000
ref: 18

CIRCLIP-TYPE-E,8MM

€ 0.50

19

92001101
ref: 19

BOLT-KICK PEDAL

€ 5.50

20

13061015
ref: 20

BOSS-KICK PEDAL

€ 37.00
