CHASSIS ELECTRICAL EQUIPMENT (S1
S1C MACH I 1975 USA CANADA

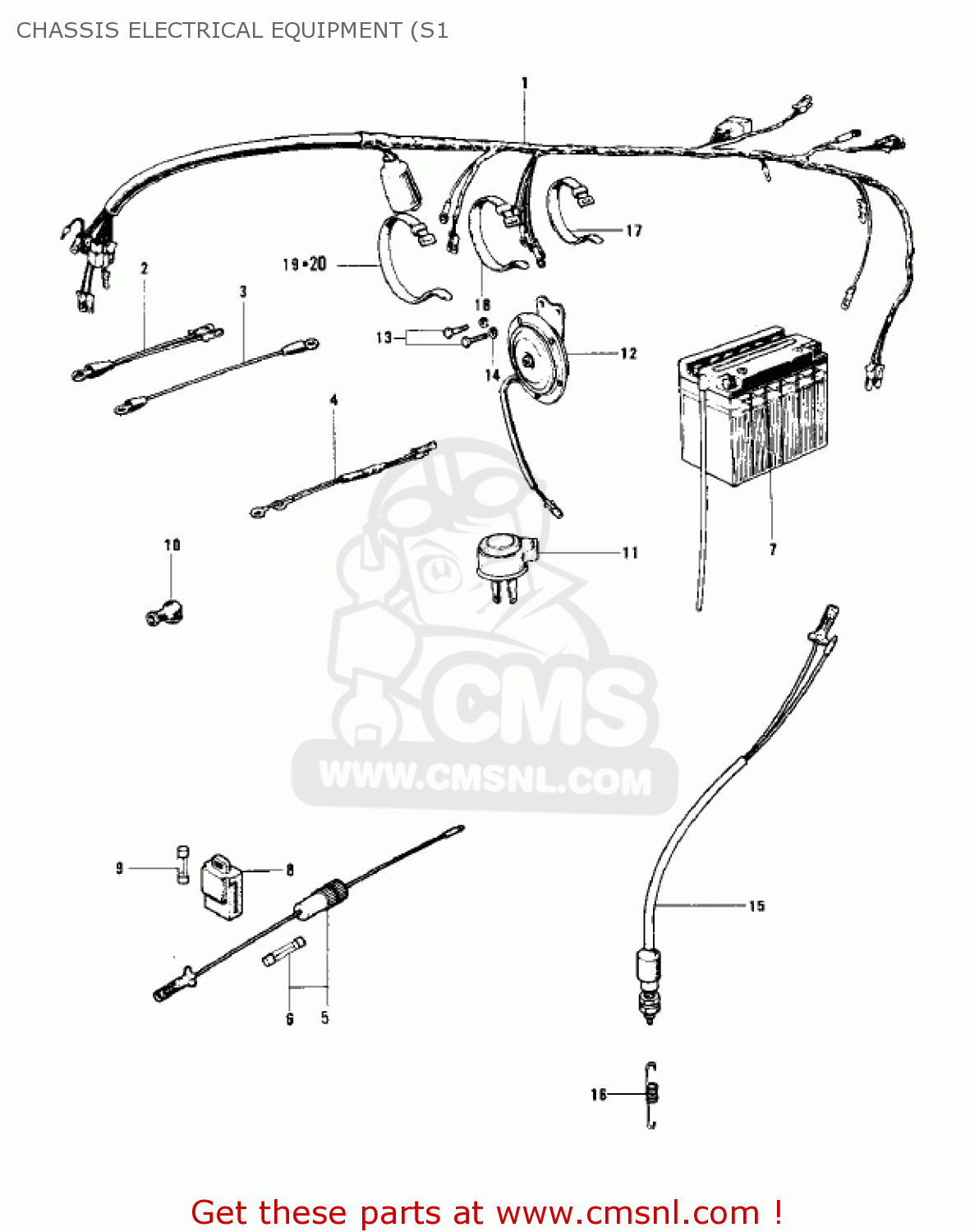

Chassis electrical equipment (s1 diagram S1C MACH I 1975 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT (S1 S1C MACH I 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001081
ref: 1
S1-A
WIRING HARNESS-MAIN
€ 149.50
1
26001106
ref: 1
S1-B/C
WIRING HARNESS,MAIN
€ 117.00
2
26010015
ref: 2
S1-A
WIRE-BATTERY LEAD
€ 6.50
2
26010033
ref: 2
S1-B/C
WIRE,LEAD
€ 10.00
3
26010017
ref: 3
WIRE-BATTERY GROUND
€ 2.50
4
26011064
ref: 4
WIRE-TURN SIGNAL LEAD
€ 3.50
5
26004015
ref: 5
S1-A
FUSE-ASSY
€ 16.50
5
26004013
ref: 5
S1-B/C
FUSE-ASSY
€ 6.50
6
26006005
ref: 6
S1-A
FUSE 20A
€ 3.50
6
26006002
ref: 6
S1-B/C
FUSE 20A
€ 2.00
7
26012022
ref: 7
12N5.5-4A
BATTERY 12V 6AH
€ 58.00
8
26016004
ref: 8
S1-A
HOLDER,SPARE FUSE
€ 7.50
8
26016002
ref: 8
S1-B/C
HOLDER-SPARE FUSE
€ 5.50
9
26006005
ref: 9
S1-A
FUSE 20A
€ 3.50
9
26006002
ref: 9
S1-B/C
FUSE 20A
€ 2.00
10
92073001
ref: 10
CAP-BAT TERMINAL RUBB
€ 8.50
11
27002011
ref: 11
RELAY-ASSY,TURN SIGNA
€ 69.50
12
27003042
ref: 12
S1-A/B
HOON
€ 110.50
12
27003042
ref: 12
S1-C
HOON
€ 110.50
13
116B0816
ref: 13
BOLT-HEX HEAD,8X16
€ 0.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
27010020
ref: 15
S1-A/B
SWITCH,BRAKE LAMP
€ 29.50
15
27010015
ref: 15
S1-C
SWITCH,BRAKE LAMP
€ 23.00
16
27011013
ref: 16
SPRING-BRAKE LAMP SW
€ 9.50
17
92072030
ref: 17
BAND,SHORT
€ 3.00
18
92072031
ref: 18
S1-A
BAND,MIDDLE
€ 3.00
18
92072031
ref: 18
S1-B/C
BAND,MIDDLE
€ 3.00
19
92072032
ref: 19
BAND,LONG
€ 3.00
20
92072056
ref: 20
S1-B/C
BAND,RUBBER
€ 3.00
