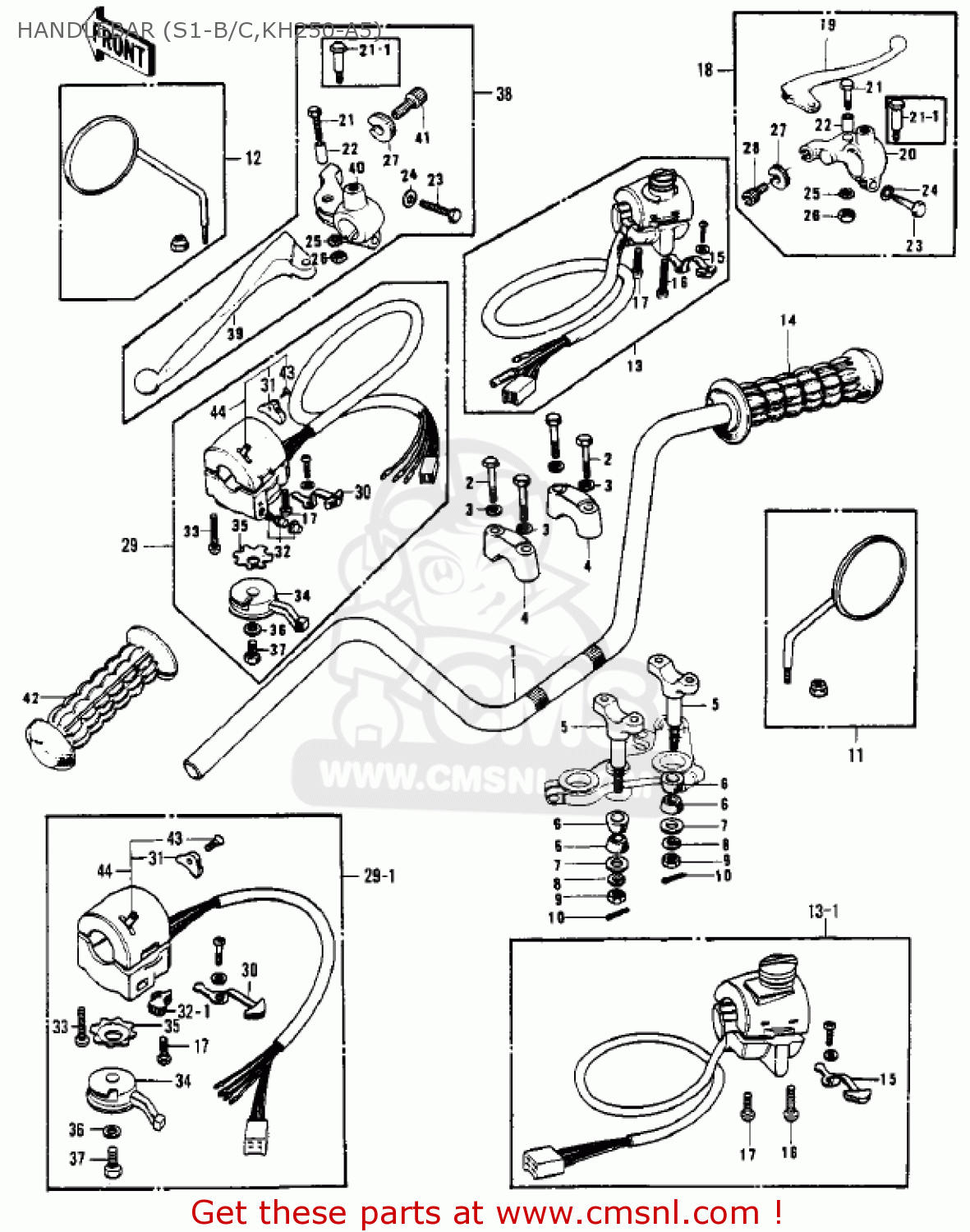

HANDLEBAR (S1-B/C,KH250-A5)

ref

part #

description

quantity

1

46003030
ref: 1

HANDLE

€ 136.00

2

920011405
ref: 2

BOLT,8X38

€ 10.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012008
ref: 4

HOLDER-HANDLE,UPP

€ 23.00

5

46012010
ref: 5

HOLDER-HANDLE,LWR

€ 20.00

6

92075039
ref: 6

DAMPER RUBBER-HANDLE

€ 3.00

7

46016003
ref: 7

PLATE,HANDLE HOLDER

€ 3.50

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

9

314B1000
ref: 9

NUT,10MM

€ 0.50

10

554A0800
ref: 10

PIN-SNAP,8MM

€ 1.00

11

56002020
ref: 11
S1-B/C

MIRROR-ASSY,RH

€ 47.50

11

56002029
ref: 11
KH250-A5

MIRROR-ASSY,RH

€ 49.00

12

56003009
ref: 12
S1-B/C

MIRROR-ASSY,LH

€ 50.00

12

56003019
ref: 12
KH250-A5

MIRROR-ASSY,LH

€ 51.00

13

46132007
ref: 13
S1-B

CASE ASSEMBLY,RH

€ 140.00

13-1

46132017
ref: 13-1
S1-C

CASE ASSEMBLY,RH

€ 308.50

13-1

46132025
ref: 13-1
KH250-A5

CASE ASSEMBLY,RH

€ 139.00

13-1

46132026
ref: 13-1
KH250-A5 (CN)

CASE ASSEMBLY,RH

€ 140.00

14

46019023
ref: 14
S1-B/C

GRIP ASSY-THROTTLE

€ 13.50

14

46019041
ref: 14
KH250-A5

GRIP-ASSY,THROTTLE

€ 28.00

15

46043006
ref: 15

KNOB-ASSY,LIGHTING SW

€ 8.00

16

220B0535
ref: 16

SCREW-PAN-CROS

€ 2.00

17

220B0522
ref: 17

SCREW-PAN-CROS

€ 0.50

18

46021025
ref: 18
S1-B/C

LEVER-ASSY-GRIP,BRAKE

€ 55.00

18

46021031
ref: 18
KH250-A5

LEVER-ASSY-GRIP,BRAKE

€ 41.50

19

46058004
ref: 19

LEVER-GRIP,FRONT BRAK

€ 24.00

20

4606001121
ref: 20
S1-B/C

HOLDER,BRAKE LEVER,FR

€ 20.00

20

4606000921
ref: 20
KH250-A5

HOLDER,BRAKE LEVER,FR

€ 27.00

21

92007020
ref: 21
S1-B

BOLT-HEX HEAD,5X20

€ 2.50

21-1

92007046
ref: 21-1
S1-C,KH250-A5

BOLT,HEX HEAD,5X22

€ 4.50

22

46059011
ref: 22
S1-B

COLLAR,LEVER

€ 3.50

23

110N0625
ref: 23

BOLT-HEX HEAD,6X25

€ 3.50

24

410B0600
ref: 24

WASHER-PLAIN-SMALL,6M

€ 0.50

25

464H0500
ref: 25
S1-B

WASHER-LOCK,5MM

€ 0.50

26

312B0500
ref: 26
S1-B

NUT-HEX,5MM

€ 0.50

26

92019014
ref: 26
S1-C,KH250-A5

NUT-LOCK,5M/M

€ 2.50

27

46056005
ref: 27

NUT-LOCK

€ 6.00

28

46055003
ref: 28

SCREW-CABLE ADJUST

€ 11.50

29

46091014
ref: 29
S1-B

CASE ASSEMBLY,LH

€ 308.50

29-1

46091047
ref: 29-1
S1-C,KH250-A5

CASE ASSEMBLY,LH

€ 280.50

30

46043005
ref: 30

KNOB-LIGHTING SW L.H

€ 6.50

31

46044013
ref: 31

KNOB,LIGHTING SWITCH,

€ 8.00

32

46078003
ref: 32
S1-B

SWITCH ASSY LH BUTTON

€ 5.50

32-1

270101001
ref: 32-1
S1-C,KH250-A5

BUTTON, HORN PUSH

€ 6.50

33

220B0530
ref: 33

SCREW-PAN-CROS

€ 2.00

34

46096009
ref: 34

LEVER,STARTER

€ 15.50

35

92095012
ref: 35

WASHER-LOCK

€ 3.50

36

410B0600
ref: 36

WASHER-PLAIN-SMALL,6M

€ 0.50

37

110B0608
ref: 37

BOLT-HEX HEAD,6X8

€ 0.50

38

46076038
ref: 38
S1-B/C

LEVER ASSY,CLUTCH

€ 43.00

38

46076048
ref: 38
KH250-A5

LEVER,ASSY,CLUTCH

€ 52.00

39

46092015
ref: 39

LEVER-GRIP,CLUTCH

€ 11.50

40

4609401521
ref: 40
S1-B/C

HOLDER,CLUTCH LEVER,F

€ 22.50

40

4609401121
ref: 40
KH250-A5

HOLDER-CLUTCH LEV,BLK

€ 23.00

41

46055006
ref: 41
S1-B/C

SCREW-CABLE ADJUST

€ 15.50

41

46055003
ref: 41
KH250-A5

SCREW-CABLE ADJUST

€ 11.50

42

46075017
ref: 42
S1-B/C

GRIP,LH

€ 15.50

42

46075028
ref: 42
KH250-A5

GRIP,LH

€ 32.00

43

220B0308
ref: 43

SCREW-PAN-CROS

€ 0.50

44

99990530
ref: 44

DIMMER SWITCH KIT A

€ 1.00

all assemblies
