Genuine unknown Kawasaki Parts delivered quickly!


FRONT HUB/BRAKE

S1C MACH I 1975 USA CANADA

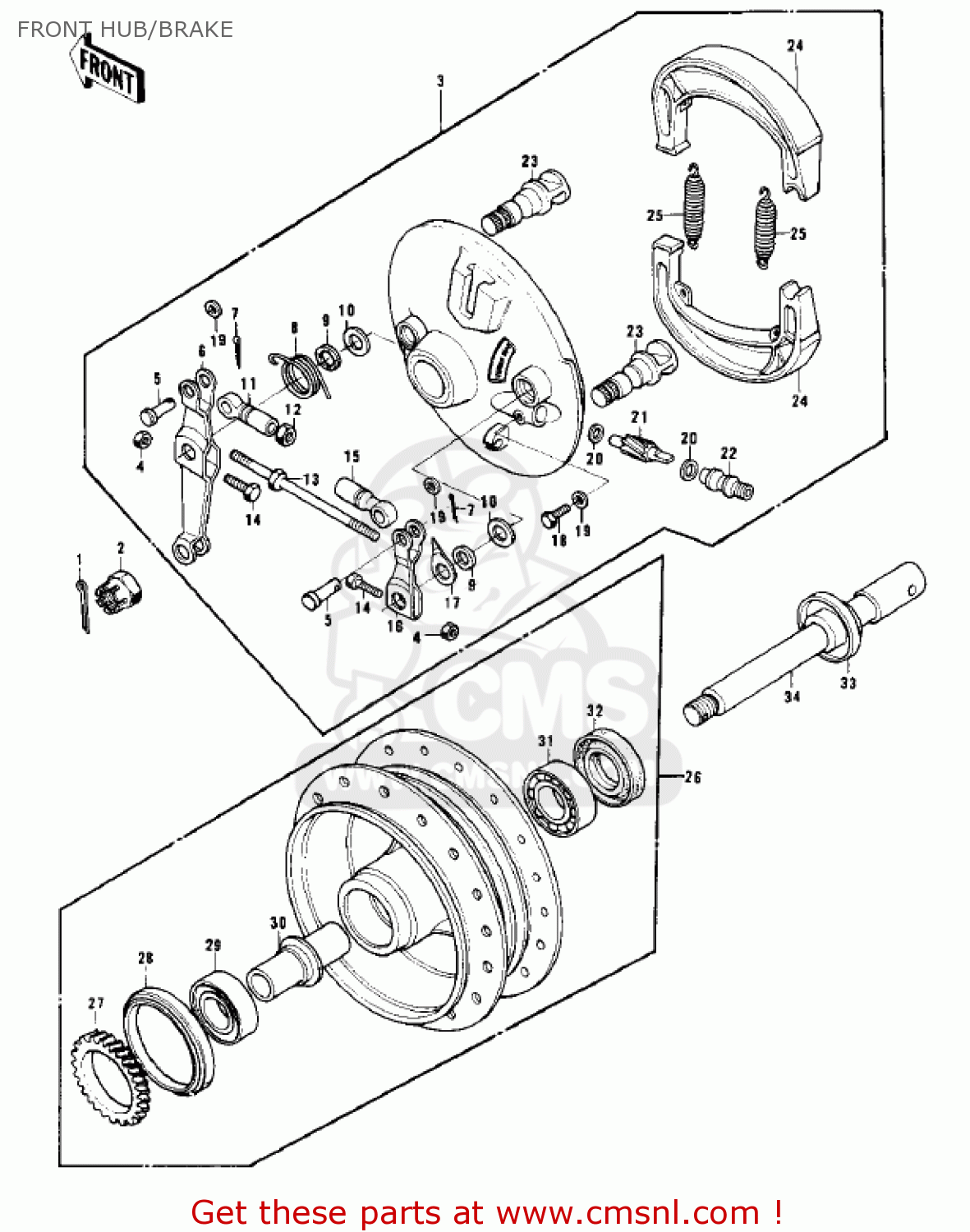

Front hub/brake diagram S1C MACH I 1975 USA CANADA

FRONT HUB/BRAKE S1C MACH I 1975 USA CANADA
FRONT HUB/BRAKE S1C MACH I 1975 USA CANADA
FRONT HUB/BRAKE S1C MACH I 1975 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
550D3030
ref: 1
S1-A/B/C
PIN-COTTER,3.0X30
550D3030
€ 1.50
1
550D3028
ref: 1
KH250-A5
PIN,COTTER,3.0X28
€ 0.50
2
320B1400
ref: 2
NUT-CASTLE,14MM
€ 4.00
3
4103506680
ref: 3
S1-A
FRONT BRAKE PANEL ASSEMBLY,BUFF
€ 847.50
3
4103506680
ref: 3
S1-B/C
FRONT BRAKE PANEL ASSEMBLY,BUFF
€ 847.50
3
4103506680
ref: 3
KH250-A5
FRONT BRAKE PANEL ASSEMBLY,BUFF
€ 847.50
4
311B0600
ref: 4
S1-A/B
NUT,6MM
311B0600
€ 0.50
4
41072007
ref: 4
S1-C,KH250-A5
NUT,6MM
41072007
€ 2.50
5
41055003
ref: 5
PIN
41055003
€ 5.50
6
41053011
ref: 6
LEVER-BRAKE CAM
41053011
€ 28.00
7
550D1210
ref: 7
PIN-COTTER,1.2X10
550D1210
€ 1.50
8
41056001
ref: 8
SPRING-FR BRK CAM LEV
41056001
€ 9.50
9
41051001
ref: 9
DUST SHIELD-BRAKE CAM
41051001
€ 2.50
10
41052005
ref: 10
WASHER,14.5X25X1
41052005
€ 3.00
11
41058008
ref: 11
RODEND-BRAKE
41058008
€ 13.00
12
311B0500
ref: 12
NUT-HEX
311B0500
€ 0.50
13
41057004
ref: 13
ROD-BRAKE
41057004
€ 32.50
14
112G0630
ref: 14
BOLT-UPSET
112G0630
€ 1.00
15
41058009
ref: 15
RODEND-BRAKE
41058009
€ 13.00
16
41053012
ref: 16
LEVER-BRAKE CAM
41053012
€ 19.50
17
41085009
ref: 17
S1-B
INDICATOR,FRONT BRAKE
€ 7.50
17
41085001
ref: 17
S1-C,KH250-A5
INDICATOR,FRONT BRAKE
€ 6.00
18
112G0618
ref: 18
BOLT-UPSET
112G0618
€ 0.50
19
411B0600
ref: 19
WASHER-PLAIN,6MM
411B0600
€ 0.50
20
41063003
ref: 20
WASHER,7.2X12X0.5
41063003
€ 2.50
21
41060007
ref: 21
PINION-SPEEDOMETER
41060007
€ 24.00
22
41062003
ref: 22
BUSHING,SPEEDOMETER C
41062003
€ 21.00
23
41050004
ref: 23
S1-A
CAM SHAFT-FRONT BRAKE
€ 6.50
23
41050016
ref: 23
S1-B/C,KH250-A5
CAM-BRAKE
41050016
€ 48.00
24
41048019
ref: 24
SHOE, FRONT BRAKE (MCA)
41048019
€ 21.00
25
41049004
ref: 25
SPRING-FRNT BRK SHOE
41049004
€ 4.00
26
41034007
ref: 26
DRUM ASSY-FRONT BRAKE
€ 105.00
27
41059009
ref: 27
GEAR-SPEEDOMETER
€ 14.50
28
92050017
ref: 28
OIL SEAL WOC55687
92050017
€ 18.50
29
601B6302Z
ref: 29
BEARING-BALL,#6302ZC3
601B6302Z
€ 22.50
30
41039011
ref: 30
SPACER-FRNT AXLE BERG
€ 6.00
31
601B6302
ref: 31
BEARING-BALL,#6302C3
601B6302
€ 16.00
32
92052005
ref: 32
OIL SEAL WTC25428
92052005
€ 13.50
33
41069007
ref: 33
COLLAR-F AXL OIL SEAL
41069007
€ 3.00
34
41069035
ref: 34
UNAVAILABLE IN PRICE BOOK
€ 0.00
