CLUTCH
S1C MACH I 1975 USA CANADA

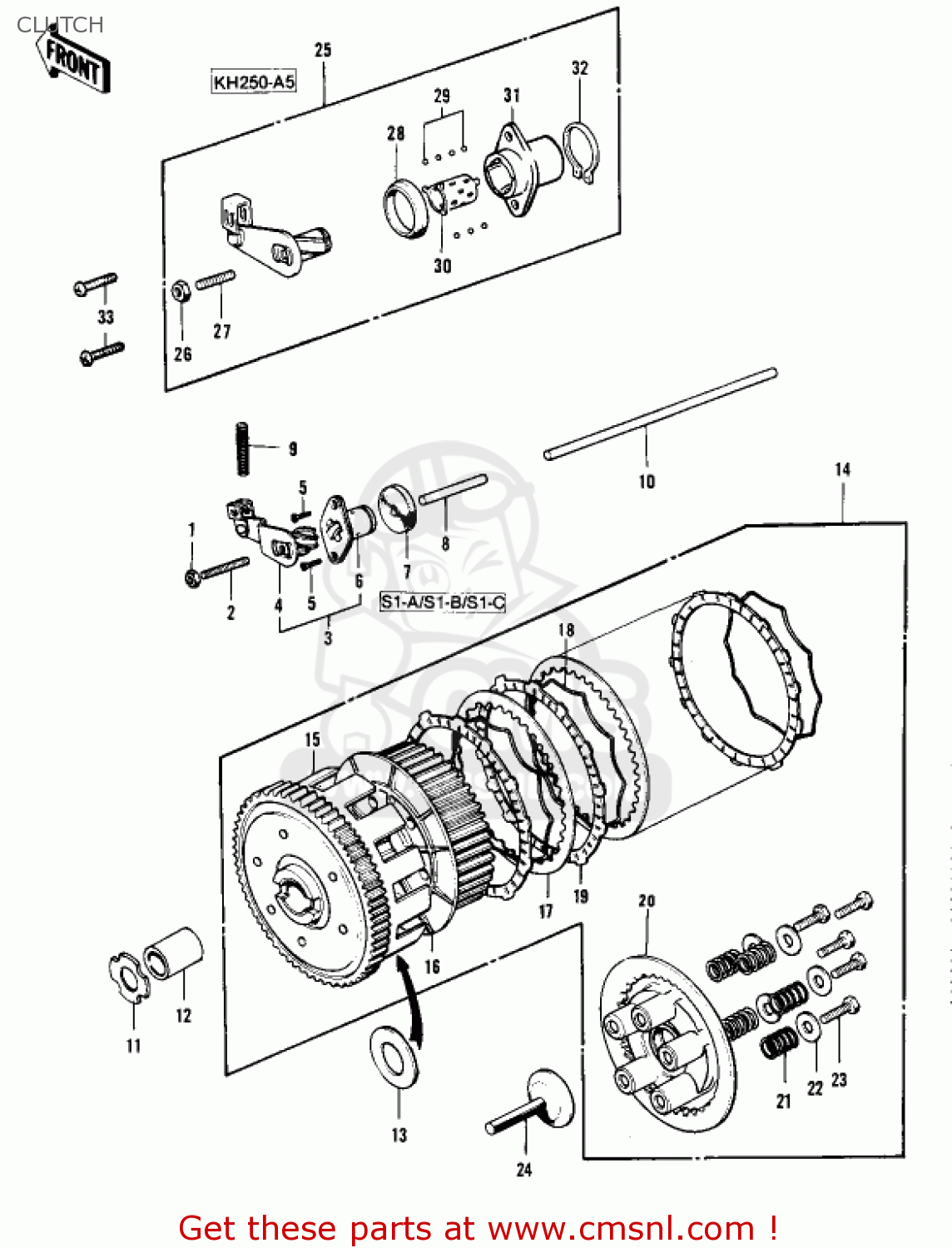

Clutch diagram S1C MACH I 1975 USA CANADA
CLUTCH S1C MACH I 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
311B0600
ref: 1
S1-A/B/C
NUT,6MM
€ 0.50
2
291Z0622
ref: 2
S1-A
SCREW-SLOTTED,6X22
€ 5.50
2
291Z0625
ref: 2
S1-B/C
SCREW-SLOTTED,6X25
€ 3.50
3
13231010
ref: 3
S1-B/C
RELEASE ASSY,CLUTCH
€ 35.00
4
13231010
ref: 4
S1-A
RELEASE ASSY,CLUTCH
€ 35.00
4
13102017
ref: 4
S1-B/C
INNER,CLUTCH RELEASE
€ 29.00
5
221B0616
ref: 5
SCREW-CNTSNK HD,6X16
€ 0.50
6
13231010
ref: 6
S1-A
RELEASE ASSY,CLUTCH
€ 35.00
6
13118008
ref: 6
S1-B/C
OUTER,CLUTCH RELEASE
€ 16.00
7
92050040
ref: 7
OIL SEAL,TC7297
€ 15.00
8
13116010
ref: 8
ROD-CLUTCH PUSH SHORT
€ 10.50
9
92081096
ref: 9
SPRING-CLUTCH RELEASE
€ 3.50
10
13116019
ref: 10
ROD-CLUTCH PUSH,LONG
€ 7.50
11
92022119
ref: 11
WASHER-THRUST
€ 4.50
12
92028045
ref: 12
BUSH-CLUTCH
€ 5.50
13
92022189
ref: 13
WASHER-PLAIN,20MM
€ 4.00
14
130811022
ref: 14
CLUTCH ASSY
€ 267.50
14
130811022
ref: 14
CLUTCH ASSY
€ 267.50
15
13095032
ref: 15
HOUSING-CLUTCH
€ 86.50
16
13087033
ref: 16
HUB,CLUTCH
€ 32.50
17
13089003
ref: 17
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
18
13229002
ref: 18
SPRING,CLUTCH STEEL
€ 7.50
19
130881015
ref: 19
PLATE-FRICTION (NAS)
€ 11.50
20
13187004
ref: 20
PLATE-CLUTCH OPERATIN (NAS)
€ 24.50
21
92081080
ref: 21
SPRING-CLUTCH
€ 9.50
22
92022167
ref: 22
WASHER-PLAIN,5MM
€ 1.50
23
92003078
ref: 23
BOLT,5X18
€ 2.00
24
13116016
ref: 24
ROD-PUSH,CLUTCH SPRIN
€ 11.50
25
132311001
ref: 25
KH250-A5
RELEASE ASSY,CLUTCH
€ 34.00
26
311B0600
ref: 26
KH250-A5
NUT,6MM
€ 0.50
27
291Z0625
ref: 27
KH250-A5
SCREW-SLOTTED,6X25
€ 3.50
28
92056007
ref: 28
KH250-A5
OIL SEAL
€ 7.00
29
600A0400
ref: 29
KH250-A5
BALL-STEEL,1/8
€ 2.00
30
13197006
ref: 30
KH250-A5
RETAINER
€ 6.50
31
13118015
ref: 31
KH250-A5
OUTER,CLUTCH RELEASE
€ 20.50
32
480J1500
ref: 32
KH250-A5
CIRCLIP-TYPE-C,15MM
€ 1.00
33
220B0616
ref: 33
KH250-A5
SCREW-PAN HEAD,6X16
€ 2.50
