HEADLIGHT ('69-'72 H1/A/B/C)
H1 MACH III 1969 CANADA

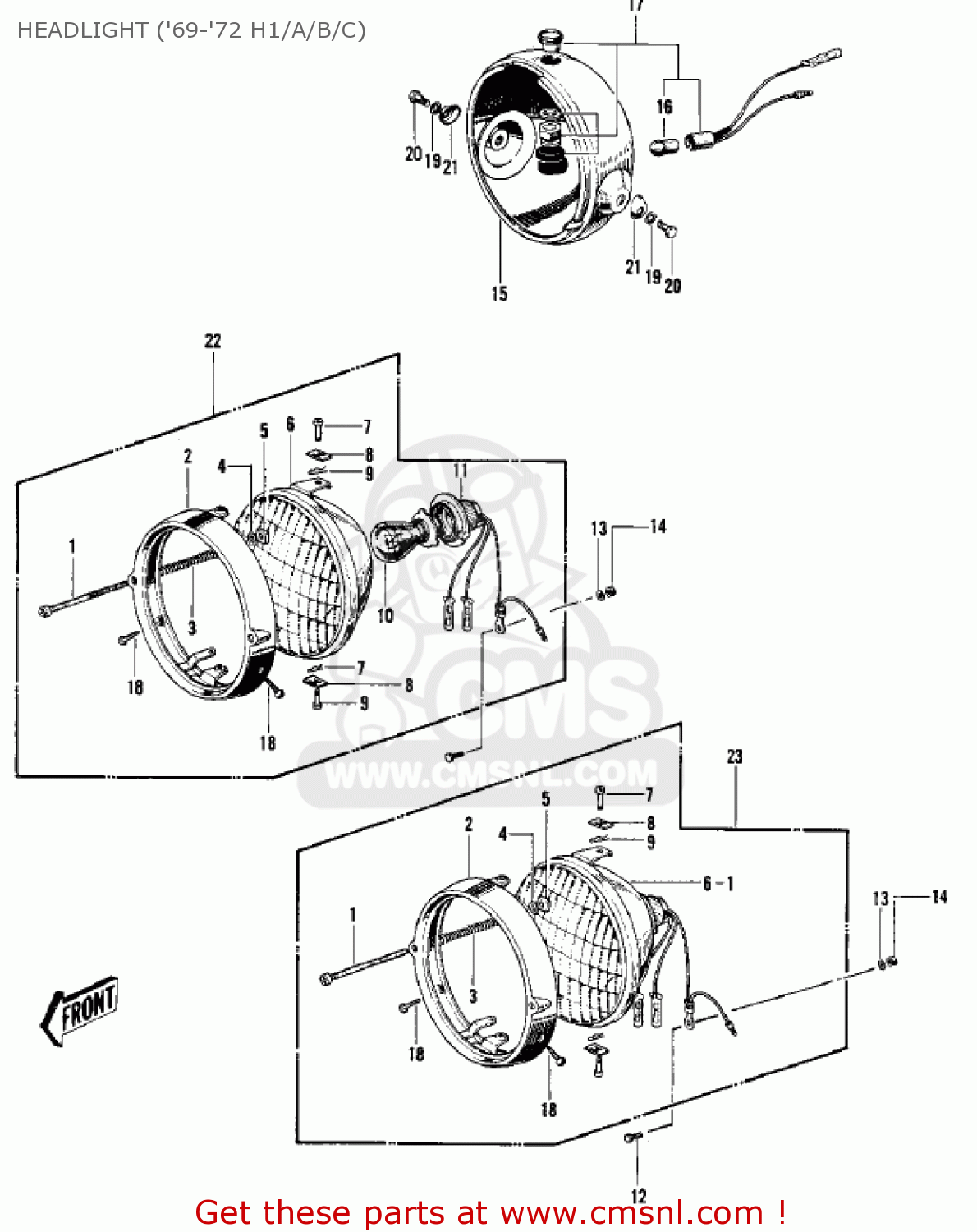

Headlight ('69-'72 h1/a/b/c) diagram H1 MACH III 1969 CANADA
HEADLIGHT ('69-'72 H1/A/B/C) H1 MACH III 1969 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
23019021
ref: 1
SCREW-FORCUS ADJUST
€ 3.00
2
23006017
ref: 2
RIM-HEAD LAMP
€ 27.00
3
23014005
ref: 3
SPRING-FOCUS ADJUST
€ 2.50
4
23021004
ref: 4
WASHER,4.1X8X0.8
€ 2.00
5
23020016
ref: 5
NUT
€ 2.00
6
23007013
ref: 6
1969 MODEL H
LENS UNIT-HEAD LAMP
€ 21.00
6-1
23007025
ref: 6-1
'70 H1,H1-A/B
SEALED BEAM UNIT
€ 88.50
7
23019018
ref: 7
SCREW-LENS UNIT FITT
€ 2.00
8
23020009
ref: 8
NUT,LENS UNIT FITTING
€ 2.50
9
23022001
ref: 9
PIN
€ 2.50
10
92069037
ref: 10
1969 MODEL H
BULB 12V 35/25W
€ 10.00
11
23008011
ref: 11
1969 MODEL H
SOCKET-HEAD LAMP
€ 4.50
12
220B0306
ref: 12
SCREW-PAN-CROS
€ 0.50
13
461F0300
ref: 13
WASHER-SPRING,3MM
€ 0.50
14
311B0300
ref: 14
NUT-HEX
€ 0.50
15
23005023
ref: 15
'69 H1,H1-A/C
BODY-HEAD LAMP
€ 63.00
15
2300501821
ref: 15
'70 H1,H1-B
BODY-HEAD LAMP,F BLK
€ 62.50
16
92069017
ref: 16
BULB 12V 1.5W
€ 4.00
17
23016002
ref: 17
LAMP ASSY-HIGH BEAM
€ 5.50
17
222E0510
ref: 17
SCREW-OVL CNTSNK,5X10
€ 2.00
19
461F1000
ref: 19
WASHER-SPRING,10MM
€ 0.50
20
92007045
ref: 20
BOLT, HEX HEAD, 10X25
€ 6.00
21
92075058
ref: 21
H1-B
DAMPER RUBBER
€ 1.50
22
23004020
ref: 22
H1
LAMP UNIT-HEAD
€ 61.50
23
23003011
ref: 23
H1-A/B/C
LAMP UNIT-HEAD
€ 57.50
