CHASSIS ELECTRICAL EQUIPMENT (H1
H1 MACH III 1969 CANADA

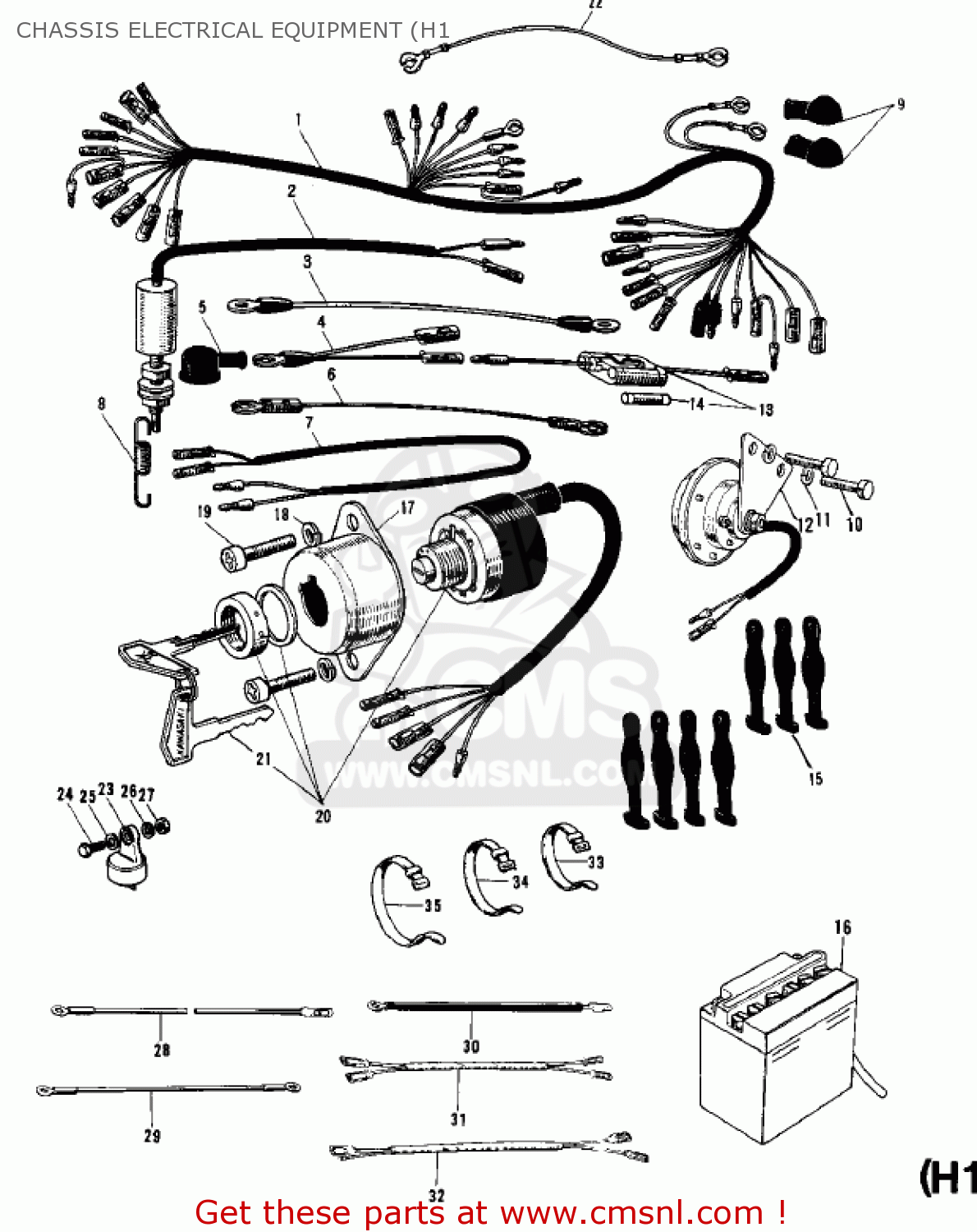

Chassis electrical equipment (h1 diagram H1 MACH III 1969 CANADA
CHASSIS ELECTRICAL EQUIPMENT (H1 H1 MACH III 1969 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001031
ref: 1
WIRING HARNESS-MAIN
€ 54.50
2
27010006
ref: 2
SWITCH,BRAKE LAMP
€ 28.50
3
26010014
ref: 3
WIRE-BATTERY GROUND
€ 2.50
4
26010015
ref: 4
WIRE-BATTERY LEAD
€ 6.50
5
92073001
ref: 5
CAP-BAT TERMINAL RUBB
€ 8.50
6
26011025
ref: 6
WIRE-GROUND
€ 6.00
7
26002007
ref: 7
WIRING HARNESS-REAR
€ 2.50
8
27011009
ref: 8
SPRING-BRAKE LAMP SW
€ 4.50
9
92073003
ref: 9
CAP-IGNITION COIL
€ 2.00
10
115G0820
ref: 10
BOLT,8X20
€ 2.00
11
461F0800
ref: 11
WASHER-SPRING,8MM
€ 0.50
12
27003014
ref: 12
HORN
€ 32.50
13
26004005
ref: 13
FUSE ASSY
€ 8.50
14
26006002
ref: 14
FUSE 20A
€ 2.00
15
92072013
ref: 15
H1/A
BAND-RUBBER
€ 2.00
16
26012017
ref: 16
12N9-4B-1
BATTERY
€ 119.00
17
27009005
ref: 17
HOUSING-IGNITION SW
€ 4.00
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
220B0612
ref: 19
SCREW-PAN HEAD,6X12
€ 1.00
20
27005021
ref: 20
SWITCH ASSY-IGNITION
€ 48.00
21
2700802769
ref: 21
KEY SET #669
€ 6.50
21
2700802776
ref: 21
KEY SET #676
€ 6.50
22
26011038
ref: 22
H1-C
WIRE-LEAD
€ 3.00
23
27002012
ref: 23
H1-C
TURN SIGNAL RELAY
€ 98.50
24
112B0614
ref: 24
H1-C
BOLT-UPSET 6X14
€ 2.50
25
461F0600
ref: 25
H1-C
WASHER-SPRING,6MM
€ 0.50
26
92022125
ref: 26
H1-C
WASHER,6.5X20X1.6
€ 1.00
27
311B0600
ref: 27
H1-C
NUT,6MM
€ 0.50
28
26010016
ref: 28
H1-C
BATTERY WIRE LEAD
€ 6.50
29
26010017
ref: 29
H1-C
WIRE-BATTERY GROUND
€ 2.50
30
26011047
ref: 30
H1-C
WIRE-GROUND LEAD
€ 4.50
31
26011057
ref: 31
H1-C
WIRE LEAD
€ 9.50
32
26011058
ref: 32
H1-C
WIRE-LEAD
€ 4.00
33
92072030
ref: 33
H1-C
BAND,SHORT
€ 3.00
34
92072031
ref: 34
H1-C
BAND,MIDDLE
€ 3.00
35
92072032
ref: 35
H1-C
BAND,LONG
€ 3.00
