FRONT MASTER CYLINDER (H1-B)
H1 MACH III 1969 CANADA

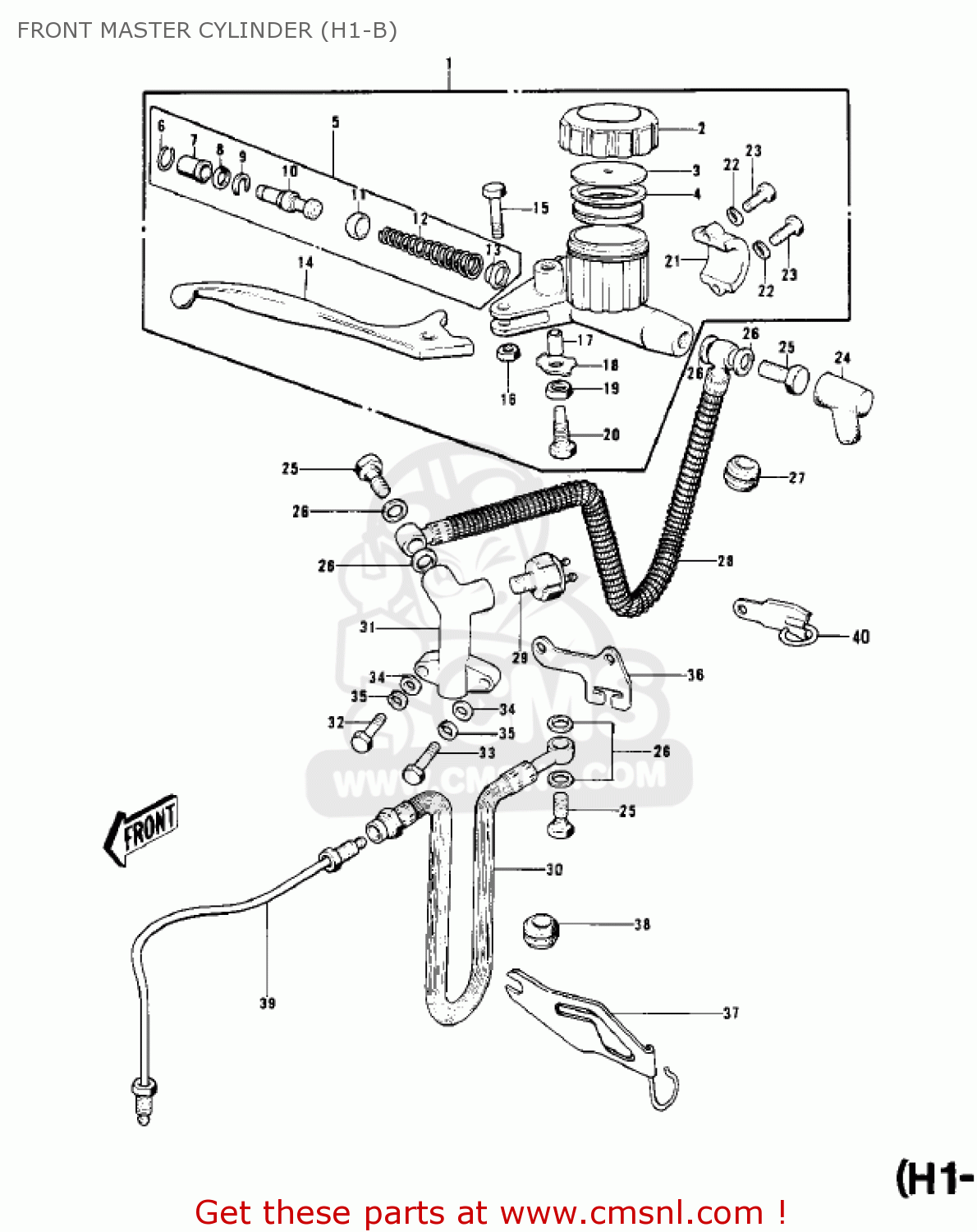

Front master cylinder (h1-b) diagram H1 MACH III 1969 CANADA
FRONT MASTER CYLINDER (H1-B) H1 MACH III 1969 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
43015032
ref: 1
CYLINDER ASSY, MASTER
€ 122.50
2
43026003
ref: 2
CAP,OIL CUP
€ 20.50
3
43027001
ref: 3
PLATE-MASTER CYLINDER
€ 4.50
4
43028001
ref: 4
DIAPHRAGM
€ 27.50
5
43073001
ref: 5
KIT-KHI PARTS
€ 92.00
6
43025001
ref: 6
STOPPER-BOOTS
€ 3.00
7
43024001
ref: 7
BOOTS
€ 4.50
8
481J1800
ref: 8
CIRCLIP-TYPE-C,18MM
€ 2.50
9
43022001
ref: 9
STOPPER-PISTON
€ 2.50
10
43072001
ref: 10
PISTON ASSY-MSTR CYL
€ 17.00
11
43019001
ref: 11
CUP-BRAKE
€ 8.50
12
43018001
ref: 12
SPRING ASSY-RETURN
€ 12.50
13
43017001
ref: 13
VALVE ASSY-CHECK
€ 9.00
14
43029003
ref: 14
LEVER-GRIP
€ 58.50
15
43033001
ref: 15
BOLT-LEVER FITTING
€ 6.00
16
312N0600
ref: 16
NUT-HEX,6MM
€ 2.50
17
43074001
ref: 17
TUBE
€ 2.50
18
43031001
ref: 18
WASHER,LOCK,8MM
€ 3.50
19
314N0800
ref: 19
NUT,8MM
€ 0.50
20
43030002
ref: 20
BOLT-LEVER ADJUSTING
€ 3.50
21
43034001
ref: 21
HOLDER-MASTER CYL
€ 29.50
22
411B0600
ref: 22
WASHER-PLAIN,6MM
€ 0.50
23
110N0625
ref: 23
BOLT-HEX HEAD,6X25
€ 3.50
24
490061041
ref: 24
BOOT,DUST
€ 7.50
25
920021888
ref: 25
BOLT,OIL,L=23
€ 3.50
26
43067001
ref: 26
WASHER,10.5X15X1.5
€ 1.50
27
43064006
ref: 27
GROMMET,BRAKE HOSE
€ 2.50
28
43059001
ref: 28
HOSE-FRONT BRAKE
€ 54.00
29
43065001
ref: 29
SWITCH,BRAKE,FR
€ 37.50
30
430591262
ref: 30
HOSE-BRAKE,L=350
€ 85.50
31
43061001
ref: 31
JOINT-THREE WAY
€ 49.50
32
112N0620
ref: 32
BOLT-UPSET
€ 1.00
33
110N0632
ref: 33
BOLT,6X32
€ 2.50
34
411B0600
ref: 34
WASHER-PLAIN,6MM
€ 0.50
35
461F0600
ref: 35
WASHER-SPRING,6MM
€ 0.50
36
43062001
ref: 36
GUIDE-HOSE
€ 2.00
37
43063001
ref: 37
BRACKET,BRAKE HOSE
€ 36.50
38
43064001
ref: 38
DAMPER RUBBER-CAL HSE
€ 2.50
39
43060001
ref: 39
PIPE-BRAKE
€ 23.00
40
43063002
ref: 40
BRACKET-BRAKE HOSE
€ 10.50
