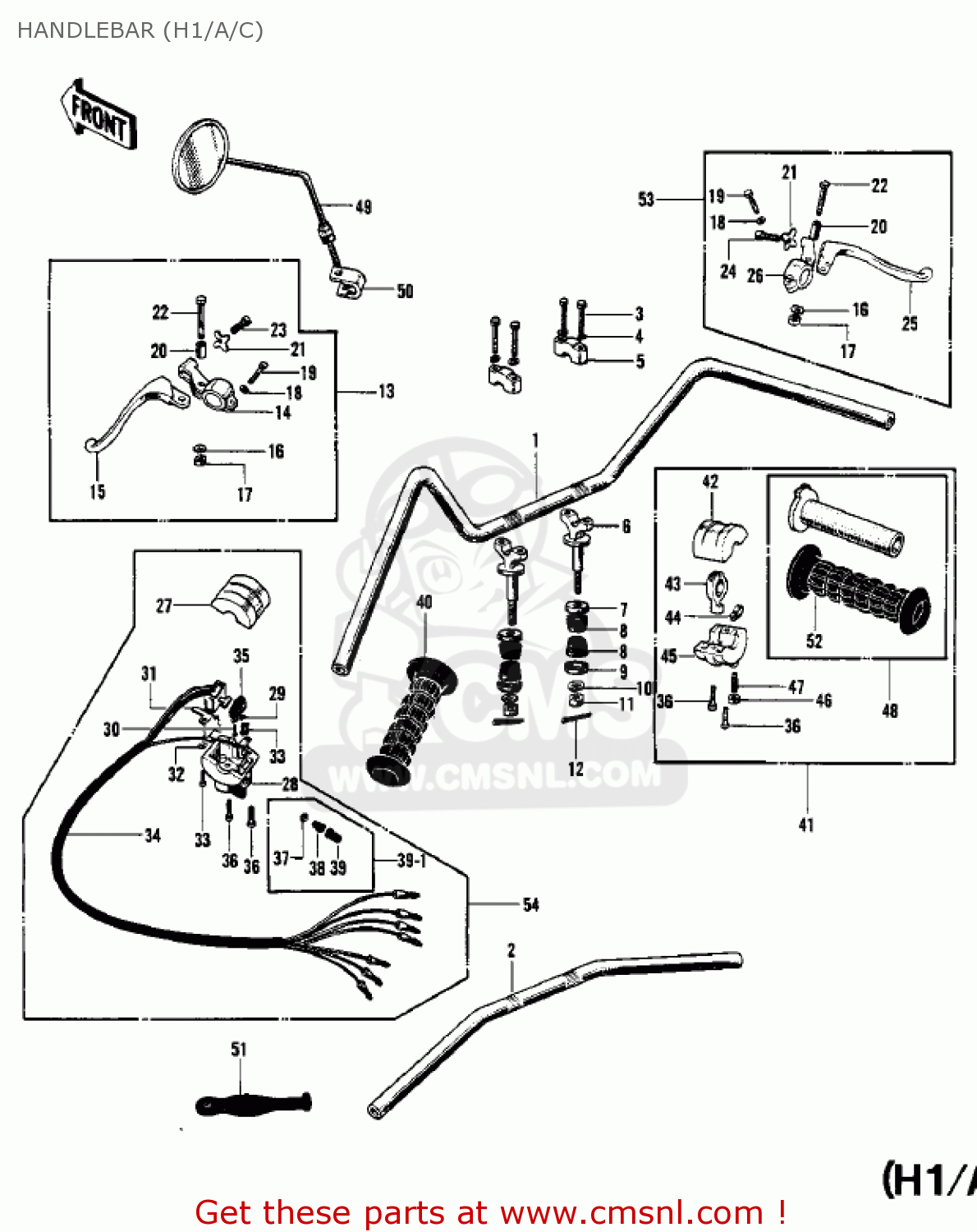

HANDLEBAR (H1/A/C)

ref

part #

description

quantity

1

46003017
ref: 1

HANDLEBAR

€ 38.00

2

46005005
ref: 2
OPTION

HANDLEBAR LOW

€ 45.00

3

920011405
ref: 3

BOLT,8X38

€ 10.00

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

46012004
ref: 5

HOLDER-UPPER HANDLBAR

€ 14.00

6

46012007
ref: 6

HOLDER-HANDLEBAR LOW

€ 13.50

7

46016003
ref: 7

PLATE,HANDLE HOLDER

€ 3.50

8

92075039
ref: 8

DAMPER RUBBER-HANDLE

€ 3.00

9

46016003
ref: 9

PLATE,HANDLE HOLDER

€ 3.50

10

461F1000
ref: 10

WASHER-SPRING,10MM

€ 0.50

11

314B1000
ref: 11

NUT,10MM

€ 0.50

12

550D2520
ref: 12

PIN-COTTER,2.5X20

€ 1.00

13

46076010
ref: 13

LEVER ASSY-CLUTCH

€ 47.00

14

46094007
ref: 14

HOLDER-CLUTCH LEVER

€ 6.50

15

46092012
ref: 15

LEVER-CLUTCH

€ 15.50

16

464H0600
ref: 16

WASHER-LOCK,6MM

€ 0.50

17

311B0600
ref: 17

NUT,6MM

€ 0.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

110N0625
ref: 19

BOLT-HEX HEAD,6X25

€ 3.50

20

46059010
ref: 20

COLLAR-LEVER

€ 1.50

21

46056001
ref: 21

NUT-ADJUST SCREW LOCK

€ 2.50

22

110N0628
ref: 22

BOLT

€ 1.00

23

46055006
ref: 23

SCREW-CABLE ADJUST

€ 15.50

24

46055009
ref: 24

SCREW,CABLE ASJUST

€ 13.00

25

46058012
ref: 25

LEVER-FRONT BRAKE

€ 13.00

26

46060005
ref: 26

HOLDER-FR BRAKE LEVER

€ 6.50

27

46086012
ref: 27

CASE-L.H UPPER

€ 7.50

28

46077014
ref: 28

CASE-L.H LOWER

€ 16.00

29

92029002
ref: 29

WASHER-SPRING

€ 0.50

30

211B0206
ref: 30

SCREW-PAN HEAD,2X6

€ 0.50

31

46085010
ref: 31

HOLDER-L.H SW UP WRNG

€ 1.50

32

461F0300
ref: 32

WASHER-SPRING,3MM

€ 0.50

33

220B0305A
ref: 33

SCREW-PAN HEAD,3X5

€ 1.00

34

46082014
ref: 34

WIRING HARNESS

€ 38.50

35

46044003
ref: 35

KNOB-SWITCH

€ 3.50

36

220B0518
ref: 36

SCREW-PAN HEAD,5X18

€ 2.50

37

46079001
ref: 37

CONTACT-HORN BUTTON

€ 2.00

38

270101009
ref: 38

SWITCH ASSY,HORN BUTN

€ 5.50

39

270101009
ref: 39

SWITCH ASSY,HORN BUTN

€ 5.50

39-1

270101009
ref: 39-1

SWITCH ASSY,HORN BUTN

€ 5.50

40

46075013
ref: 40

RUBBER-L.H GRIP

€ 12.50

41

46018008
ref: 41

CASE ASSY-R.H

€ 52.00

42

46040013
ref: 42

CASE-R.H UPPER

€ 13.50

43

46096004
ref: 43

LEVER-STARTER

€ 15.50

44

46025004
ref: 44

SPRING-GRIP ADJUST

€ 2.50

45

46022015
ref: 45

CASE-R.H LOWER

€ 24.00

46

312B0500
ref: 46

NUT-HEX,5MM

€ 0.50

47

46026006
ref: 47

SCREW-GRIP ADJUST

€ 1.50

48

46018008
ref: 48

CASE ASSY-R.H

€ 52.00

49

56001005
ref: 49
H1/A

REAR VIEW MIRROR

€ 54.00

49

56003016
ref: 49
H1-C

REAR VIEW MIRROR,L.H

€ 54.00

49

56002024
ref: 49
H1-C

MIRROR-ASSY,RH

€ 60.00

50

56006001
ref: 50

PLATE,MIRROR

€ 8.50

51

92072013
ref: 51

BAND-RUBBER

€ 2.00

52

46061008
ref: 52

RUBBER-R.H GRIP

€ 52.00

53

46021006
ref: 53

LEVER ASSY-FRNT BRAKE

€ 29.50

54

46091001
ref: 54

CASE ASSY-L.H

€ 89.50
