CHASSIS ELECTRICAL EQUIPMENT (H1
H1 MACH III 1969 CANADA

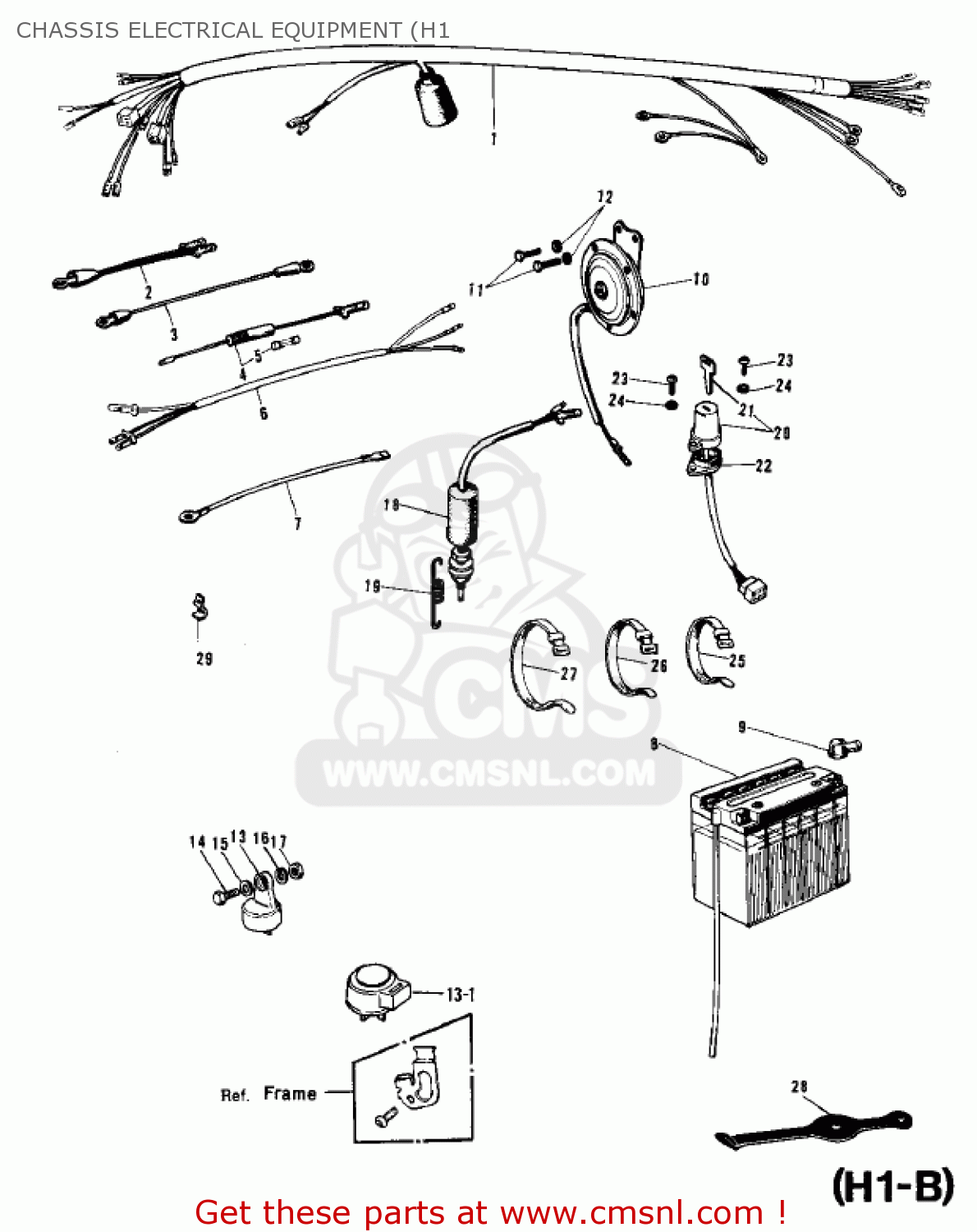

Chassis electrical equipment (h1 diagram H1 MACH III 1969 CANADA
CHASSIS ELECTRICAL EQUIPMENT (H1 H1 MACH III 1969 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001065
ref: 1
WIRING HARNESS-MAIN
€ 163.00
2
26010015
ref: 2
WIRE-BATTERY LEAD
€ 6.50
3
26010017
ref: 3
WIRE-BATTERY GROUND
€ 2.50
4
26004010
ref: 4
FUSE ASSY
€ 13.00
4
26004015
ref: 4
FUSE-ASSY
€ 16.50
5
26006002
ref: 5
FUSE 20A
€ 2.00
6
26002030
ref: 6
WIRING HARNESS-REAR
€ 11.50
7
26011047
ref: 7
WIRE-GROUND LEAD
€ 4.50
8
26012017
ref: 8
12N9-4B-1
BATTERY
€ 119.00
9
92073001
ref: 9
CAP-BAT TERMINAL RUBB
€ 8.50
10
27003042
ref: 10
HOON
€ 110.50
10
27003066
ref: 10
HORN
€ 110.50
11
115G0820
ref: 11
BOLT,8X20
€ 2.00
12
461F0800
ref: 12
WASHER-SPRING,8MM
€ 0.50
13
27002012
ref: 13
TURN SIGNAL RELAY
€ 98.50
13-1
27002011
ref: 13-1
FOR BRACKET, REF. FR
RELAY-ASSY,TURN SIGNA
€ 69.50
14
112B0614
ref: 14
USE WITH 27002-012
BOLT-UPSET 6X14
€ 2.50
15
92022125
ref: 15
USE WITH 27002-012
WASHER,6.5X20X1.6
€ 1.00
16
461F0600
ref: 16
USE WITH 27002-012
WASHER-SPRING,6MM
€ 0.50
17
311B0600
ref: 17
USE WITH 27002-012
NUT,6MM
€ 0.50
18
27010020
ref: 18
SWITCH,BRAKE LAMP
€ 29.50
19
27011013
ref: 19
SPRING-BRAKE LAMP SW
€ 9.50
20
270051058
ref: 20
SWITCH-ASSY-IGNITION
€ 96.50
21
2700804201
ref: 21
KEY SET #701
€ 4.50
21
2700804205
ref: 21
KEY SET #705
€ 4.50
21
2700804285
ref: 21
KEY SET #685
€ 8.00
21
2700804289
ref: 21
KEY SET #689
€ 5.50
22
92075077
ref: 22
DAMPER RUBBER
€ 7.00
23
92007026
ref: 23
BOLT-HEX HEAD,6MM
€ 6.00
24
410B0800
ref: 24
WASHER-PLAIN-SMALL,8M
€ 0.50
25
92072030
ref: 25
BAND,SHORT
€ 3.00
26
92072031
ref: 26
BAND,MIDDLE
€ 3.00
27
92072032
ref: 27
BAND,LONG
€ 3.00
28
92072018
ref: 28
BAND-RUBBER
€ 1.50
29
92037020
ref: 29
CLAMP-CABLE
€ 1.50
