TAILLIGHT
F9B 1974 USA CANADA

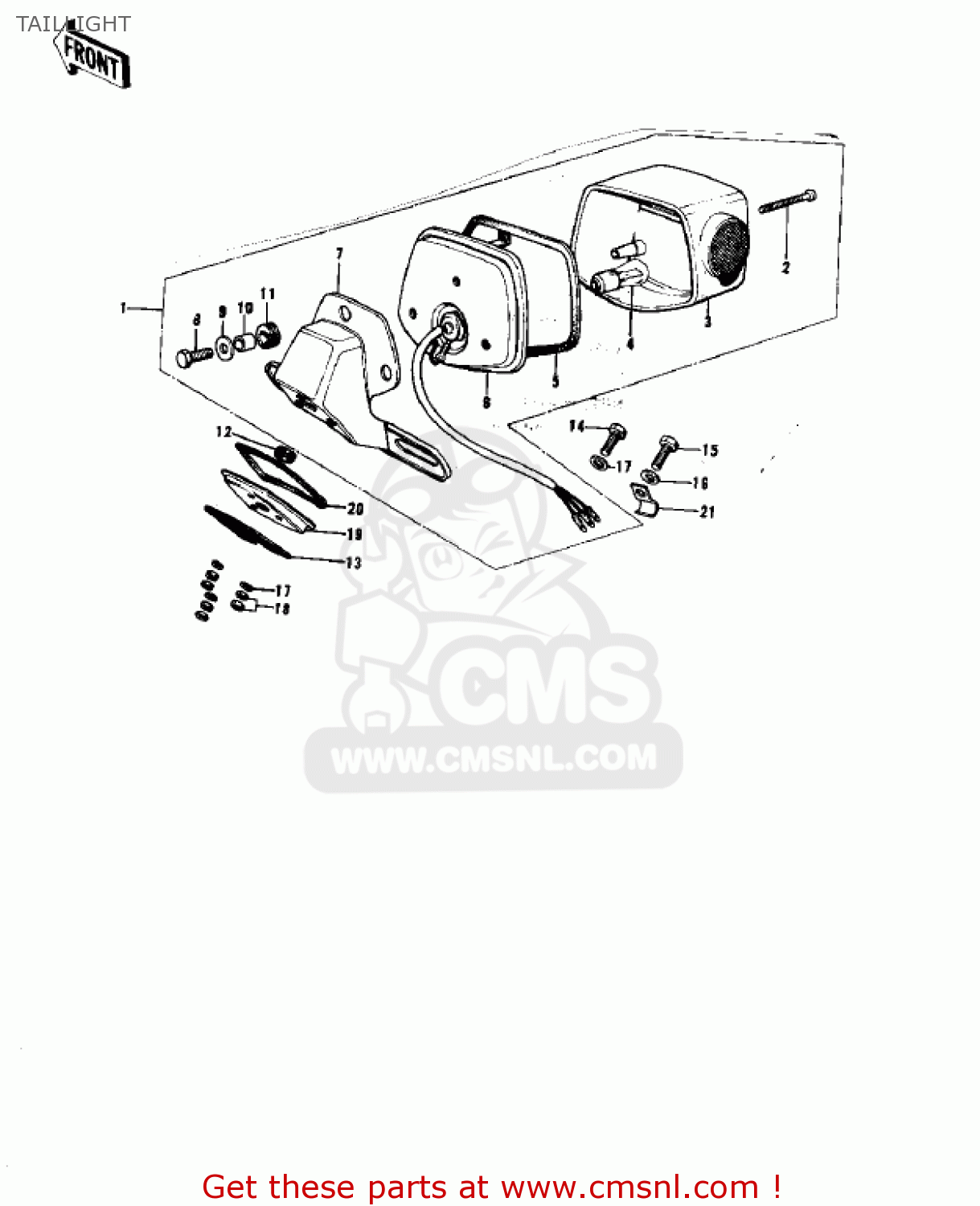

Taillight diagram F9B 1974 USA CANADA
TAILLIGHT F9B 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
2302404621
ref: 1
TAIL LAMP ASSEMBLY,FLAT BLACK
€ 228.00
2
220R0455
ref: 2
F9B
SCREW-PAN-CROS
€ 3.50
2
220R0455
ref: 2
F9C
SCREW-PAN-CROS
€ 3.50
2
220E0450
ref: 2
F9C
SCREW-PAN HEAD,4X50
€ 3.00
3
23026028
ref: 3
LENS,TAIL LAMP,W/REFL
€ 48.50
4
92069074
ref: 4
BULB,6V-32X3CP
€ 4.50
5
23028019
ref: 5
GASKET,TAIL LAMP LENS (NAS)
€ 5.50
6
230271018
ref: 6
TAIL LAMP BODY,COMPLETE
€ 55.00
7
2303603621
ref: 7
LICENSE PLATE BRACKET,FLAT BLACK
€ 69.50
8
112G0620
ref: 8
BOLT 6X20
€ 1.00
8
112G0620
ref: 8
BOLT 6X20
€ 1.00
9
92022125
ref: 9
WASHER,6.5X20X1.6
€ 1.00
10
92027129
ref: 10
COLLAR,6.8X10X8.5
€ 3.00
11
92075076
ref: 11
DAMPER
€ 3.00
12
92071019
ref: 12
GROMMET,10MM
€ 2.50
13
35039005
ref: 13
DAMPER,TAIL LAMP
€ 6.50
14
110N0632
ref: 14
BOLT,6X32
€ 2.50
14
110N0632
ref: 14
BOLT,6X32
€ 2.50
14
112G0645
ref: 14
F9C
BOLT-UPSET
€ 0.50
15
110G0650
ref: 15
BOLT,HEX HEAD,6X50
€ 1.00
16
92022024
ref: 16
WASHER,7X16X1.2
€ 2.50
17
92022125
ref: 17
WASHER,6.5X20X1.6
€ 1.00
18
312B0600
ref: 18
NUT,6MM
€ 0.50
18
311B0600
ref: 18
F9C
NUT,6MM
€ 0.50
19
35031007
ref: 19
TAIL LAMP STAY
€ 30.00
20
35016006
ref: 20
TAIL DAMPER,RUBBER
€ 17.00
21
35024002
ref: 21
CLAMP,WIRING HARNESS
€ 2.00
