CHASSIS ELECTRICAL EQUIPMENT ('7
F9B 1974 USA CANADA

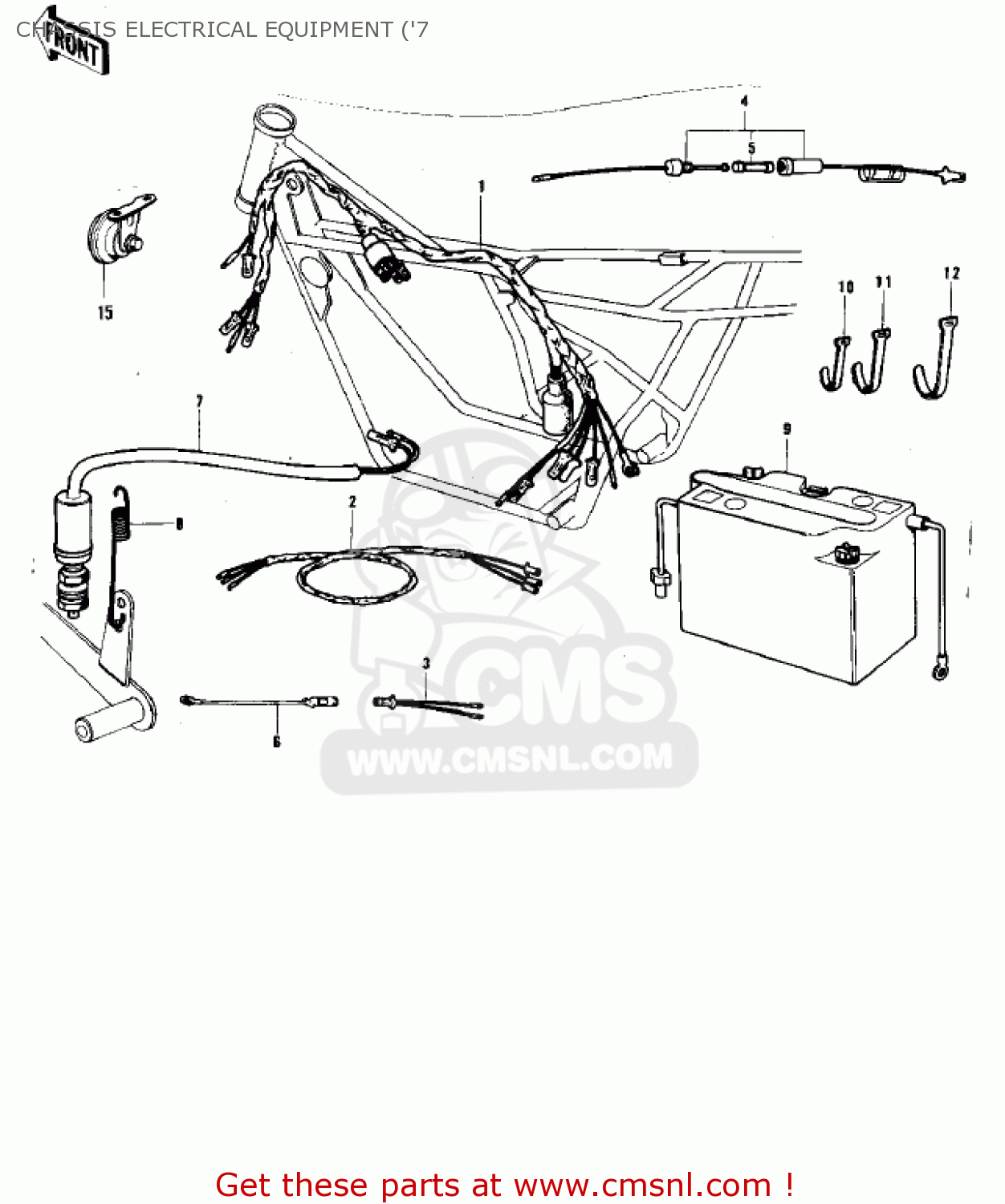

Chassis electrical equipment ('7 diagram F9B 1974 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('7 F9B 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001091
ref: 1
WIRING HARNESS,MAIN
€ 253.00
2
26002029
ref: 2
WIRING HARNESS-REAR
€ 8.00
3
26011042
ref: 3
WIRE-LEAD
€ 3.00
4
26004008
ref: 4
FUSE-ASSY
€ 13.00
4
26004017
ref: 4
F9C
FUSE-ASSY
€ 10.00
5
26006003
ref: 5
FUSE 10A
€ 3.00
6
26011093
ref: 6
WIRE-LEAD
€ 6.00
7
27010018
ref: 7
SWITCH-BRAKE LAMP
€ 23.00
8
27011004
ref: 8
SPRING-BRAKE LAMP SW
€ 2.50
9
26012035
ref: 9
BATTERY,YUA,6N4B-2A-3
€ 73.50
10
92072030
ref: 10
BAND,SHORT
€ 3.00
11
92072031
ref: 11
BAND,MIDDLE
€ 3.00
12
92072032
ref: 12
BAND,LONG
€ 3.00
13
92072056
ref: 13
F9C L=186M/M
BAND,RUBBER
€ 3.00
14
26016003
ref: 14
F9C
HOLDER,SPARE FUSE
€ 8.50
15
27003057
ref: 15
HORN
€ 83.00
15
27003057
ref: 15
HORN
€ 83.00
