CLUTCH ('74-'75 F9-B/F9-C 350)
F9B 1974 USA CANADA

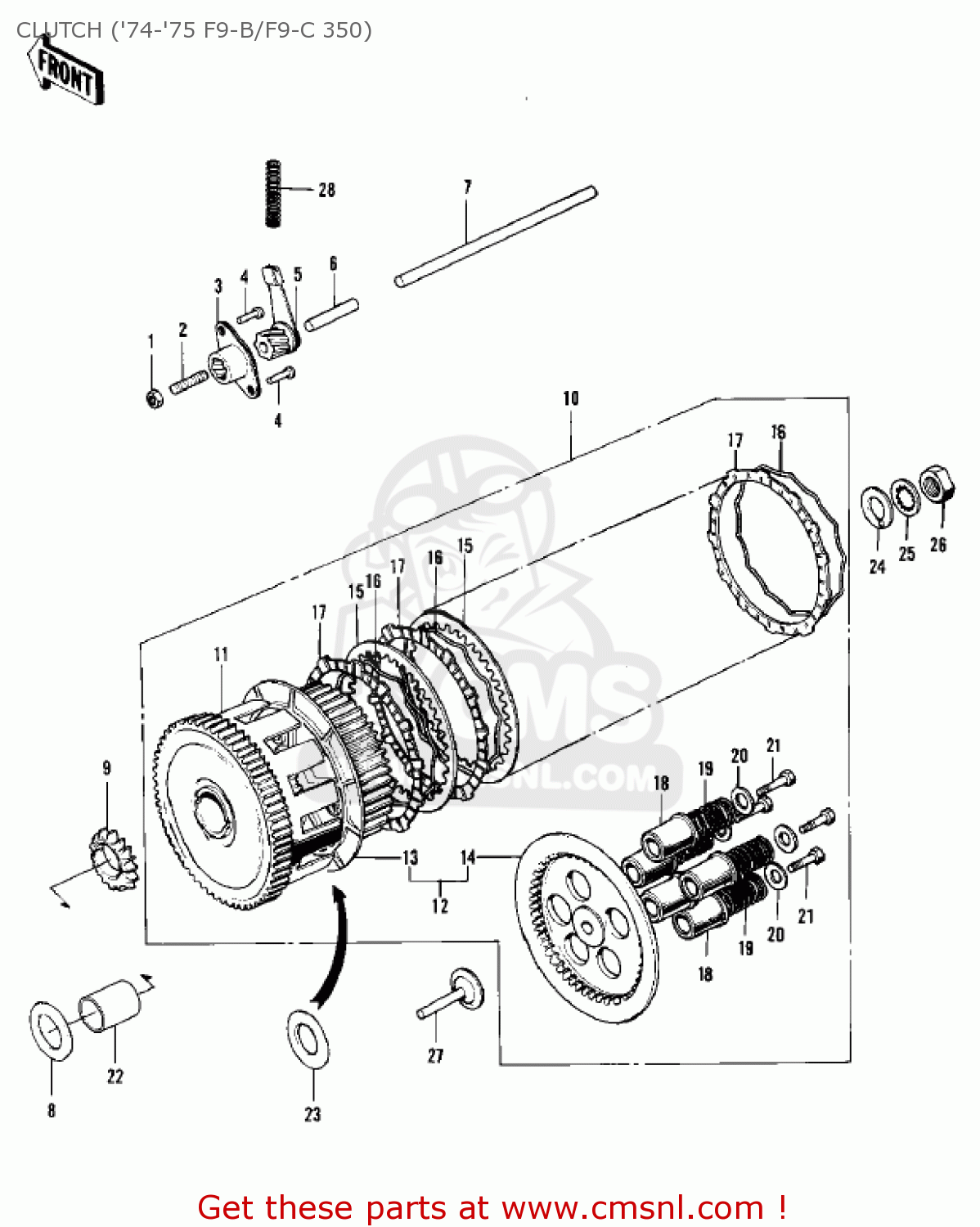

Clutch ('74-'75 f9-b/f9-c 350) diagram F9B 1974 USA CANADA
CLUTCH ('74-'75 F9-B/F9-C 350) F9B 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
311B0600
ref: 1
NUT,6MM
€ 0.50
2
92014011
ref: 2
SCREW-SLOTTED,6X22
€ 6.50
3
13118005
ref: 3
RELEASE OUTER-CLUTCH
€ 12.50
4
220B0614
ref: 4
SCREW-PAN HEAD,6X14
€ 2.00
5
13102010
ref: 5
RELEASE INNER-CLUTCH
€ 24.00
6
13116013
ref: 6
L=79 MM
ROD-CLUTCH PUSH,SHORT
€ 11.50
7
13116012
ref: 7
L=152 MM
ROD-CLUTCH PUSH,LONG
€ 11.50
8
92022145
ref: 8
WASHER-CLUTCH THRUST
€ 4.50
9
13075007
ref: 9
PINION-KICKSTARTER
€ 62.00
10
13081042
ref: 10
CLUTCH ASSY
€ 226.50
11
13095027
ref: 11
HOUSING-CLUTCH
€ 172.00
12
13084005
ref: 12
CONTAINS 13087-030 &
HUB SET-CLUTCH
€ 38.00
13
13087030
ref: 13
HUB-CLUTCH
€ 51.00
14
13187005
ref: 14
PLATE-CLUTCH SPRING (NAS)
€ 26.50
15
13089013
ref: 15
PLATE-CLUTCH,T=1.6 (NAS)
€ 6.50
16
13229003
ref: 16
RING-CLUTCH STEEL
€ 7.50
16
13229003
ref: 16
RING-CLUTCH STEEL
€ 7.50
17
13088021
ref: 17
PLATE-CLUTCH FRICTION (MCA)
€ 11.50
18
13092005
ref: 18
GUIDE-CLUTCH SPRING
€ 7.50
19
92081042
ref: 19
SPRING-CLUTCH
€ 4.50
20
13091009
ref: 20
HOLDER-CLUTCH SPRING
€ 2.50
21
112G0618
ref: 21
BOLT-UPSET
€ 0.50
22
92028081
ref: 22
BUSH
€ 6.50
23
92026022
ref: 23
SPACER,25.5X47X2.5
€ 6.50
24
92022074
ref: 24
WASHER-PLAIN,18MM
€ 1.50
25
463G1800
ref: 25
WASHER-LOCK,18MM
€ 2.00
26
92015019
ref: 26
NUT,18MM
€ 4.00
27
13116011
ref: 27
PUSHER-CLTCH SPRG PLT
€ 23.00
28
92081069
ref: 28
SPRING-CLUTCH RELEASE
€ 4.50
