HEADLIGHT ('74-'75 F9-B/F9-C 350
F9B 1974 USA CANADA

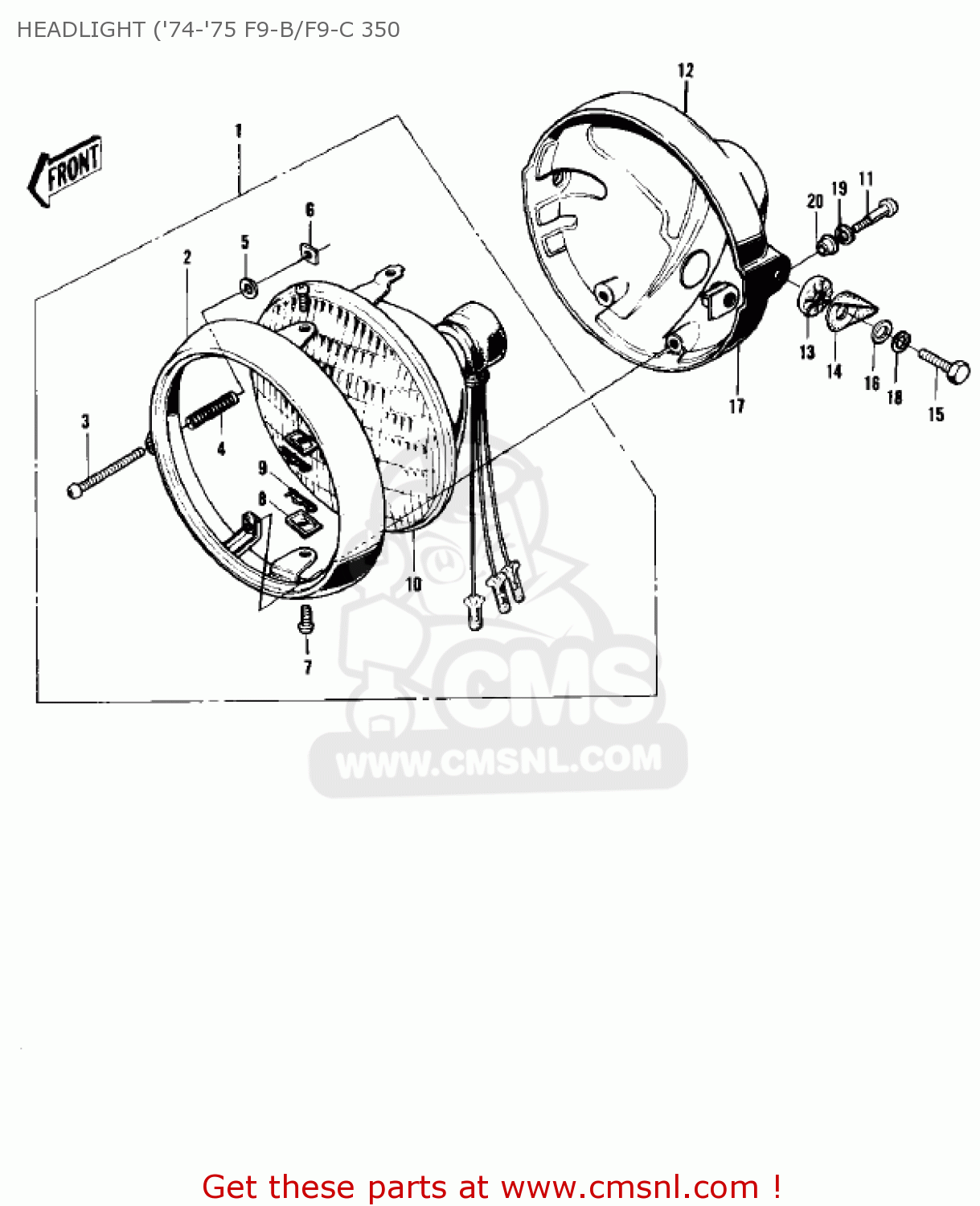

Headlight ('74-'75 f9-b/f9-c 350 diagram F9B 1974 USA CANADA
HEADLIGHT ('74-'75 F9-B/F9-C 350 F9B 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
23003015
ref: 1
LAMP UNIT-HEAD
€ 124.00
2
23006028
ref: 2
RIM-HEAD LAMP
€ 43.00
3
23019021
ref: 3
SCREW-FORCUS ADJUST
€ 3.00
4
23014005
ref: 4
SPRING-FOCUS ADJUST
€ 2.50
5
23021004
ref: 5
WASHER,4.1X8X0.8
€ 2.00
6
23020016
ref: 6
NUT
€ 2.00
7
23019018
ref: 7
SCREW-LENS UNIT FITT
€ 2.00
8
23020009
ref: 8
NUT,LENS UNIT FITTING
€ 2.50
9
23022001
ref: 9
PIN
€ 2.50
10
23007032
ref: 10
LENS UNIT-HEAD LAMP
€ 94.50
11
92011024
ref: 11
SCREW-PAN HEAD,5MM
€ 2.00
12
2300503410
ref: 12
PLASTIC
BODY-HEAD LAMP,BLACK
€ 36.50
13
23021011
ref: 13
WASHER-LOCK
€ 3.00
14
91075134
ref: 14
UNAVAILABLE IN PRICE BOOK
€ 0.00
15
92007024
ref: 15
BOLT,10MM
€ 4.50
16
411D1000
ref: 16
WASHER-PLAIN,10MM
€ 3.00
17
23020017
ref: 17
NUT
€ 2.00
18
461F1000
ref: 18
WASHER-SPRING,10MM
€ 0.50
19
461F0500
ref: 19
WASHER-SPRING,5MM
€ 0.50
20
23021010
ref: 20
WASHER
€ 2.50
