FENDERS (F9)
F9B 1974 USA CANADA

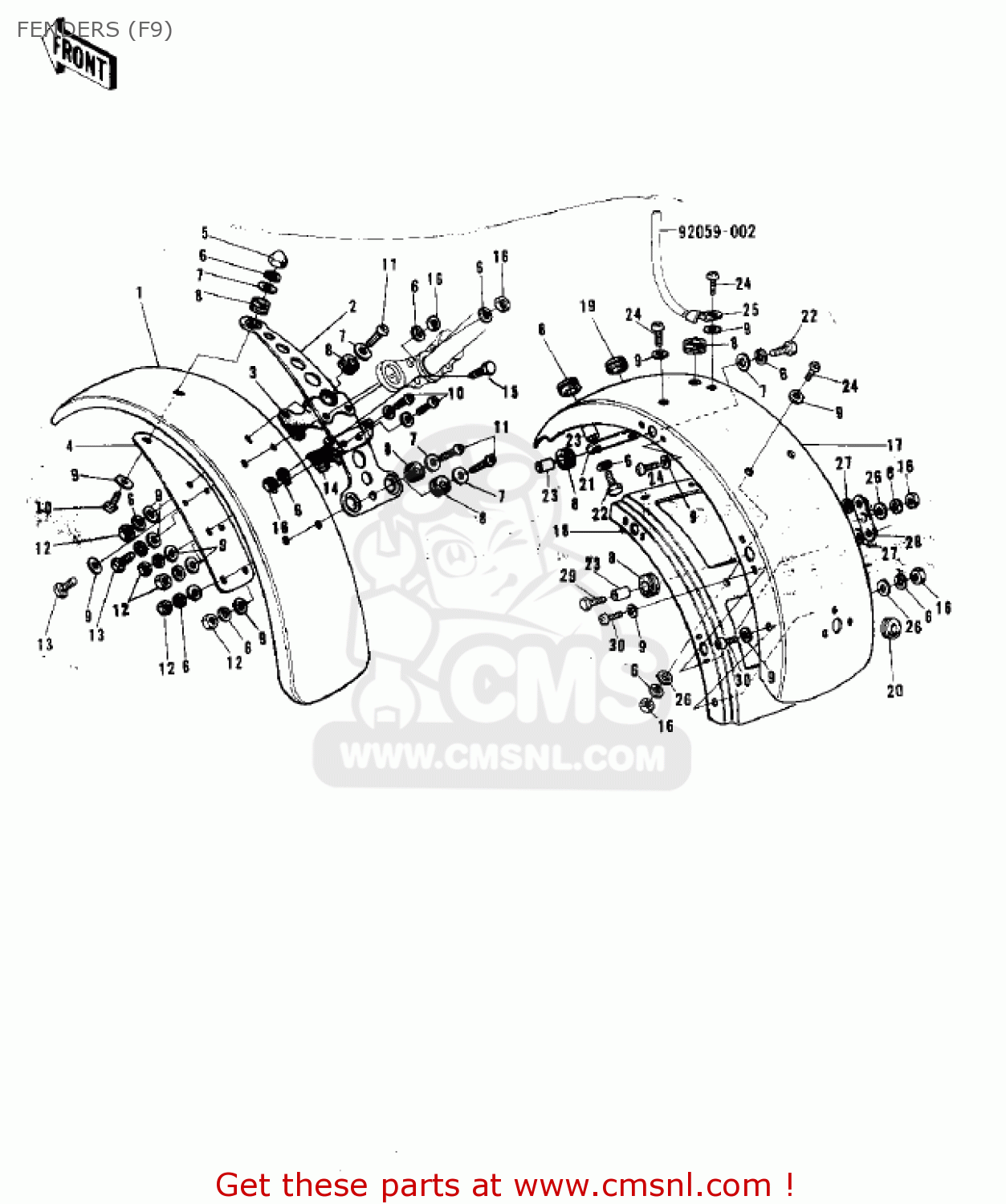

Fenders (f9) diagram F9B 1974 USA CANADA
FENDERS (F9) F9B 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
3500404870
ref: 1
FENDER-FRONT,L.GREEN
€ 84.00
2
35012011
ref: 2
BRACKET-FRONT FENDER
€ 14.00
3
35007002
ref: 3
RUBBER-FRNT FEND DAMP
€ 1.50
4
35013009
ref: 4
PLATE-FRNT FENDER FIT
€ 6.50
5
92015009
ref: 5
NUT,6MM
€ 2.00
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
92022125
ref: 7
O.D-20
WASHER,6.5X20X1.6
€ 1.00
8
92075051
ref: 8
DAMPER RUBBER
€ 2.50
9
92022024
ref: 9
O.D-16
WASHER,7X16X1.2
€ 2.50
10
220B0620
ref: 10
SCREW-PAN HEAD,6X20
€ 2.50
11
220E0620
ref: 11
SCREW-PAN HEAD,6X20
€ 2.00
12
312B0600
ref: 12
NUT,6MM
€ 0.50
13
92003063
ref: 13
BOLT-HEX HEAD,6X42
€ 1.50
14
35007003
ref: 14
DAMPER RUBBER-FR FEDR
€ 1.00
15
112G0625
ref: 15
BOLT-UPSET,6X25
€ 4.00
15
112G0625
ref: 15
BOLT-UPSET,6X25
€ 4.00
16
311B0600
ref: 16
NUT,6MM
€ 0.50
17
3502204670
ref: 17
FENDER-REAR,L.GREEN
€ 75.00
18
35034010
ref: 18
BRACE-REAR FENDER
€ 15.50
19
92071010
ref: 19
GROMMET,HARNESS
€ 2.00
20
92071019
ref: 20
GROMMET,10MM
€ 2.50
21
35034013
ref: 21
BRACE-RR FENDER,FRONT
€ 1.50
22
112G0620
ref: 22
BOLT 6X20
€ 1.00
22
112G0620
ref: 22
BOLT 6X20
€ 1.00
23
92027103
ref: 23
COLLAR
€ 2.50
24
220B0614
ref: 24
SCREW-PAN HEAD,6X14
€ 2.00
25
92037020
ref: 25
CLAMP-CABLE
€ 1.50
26
411B0600
ref: 26
O.D-13
WASHER-PLAIN,6MM
€ 0.50
27
92075097
ref: 27
DAMPER RUBBER
€ 1.00
28
92022200
ref: 28
WASHER-PLAIN
€ 3.00
29
110N0618
ref: 29
BOLT-HEX HEAD,6X18
€ 2.00
30
220E0614
ref: 30
SCREW-PAN HEAD,6X14
€ 2.00
