TAILLIGHT ('74-'75 F7-C/F6-D)
F7A 1972 USA

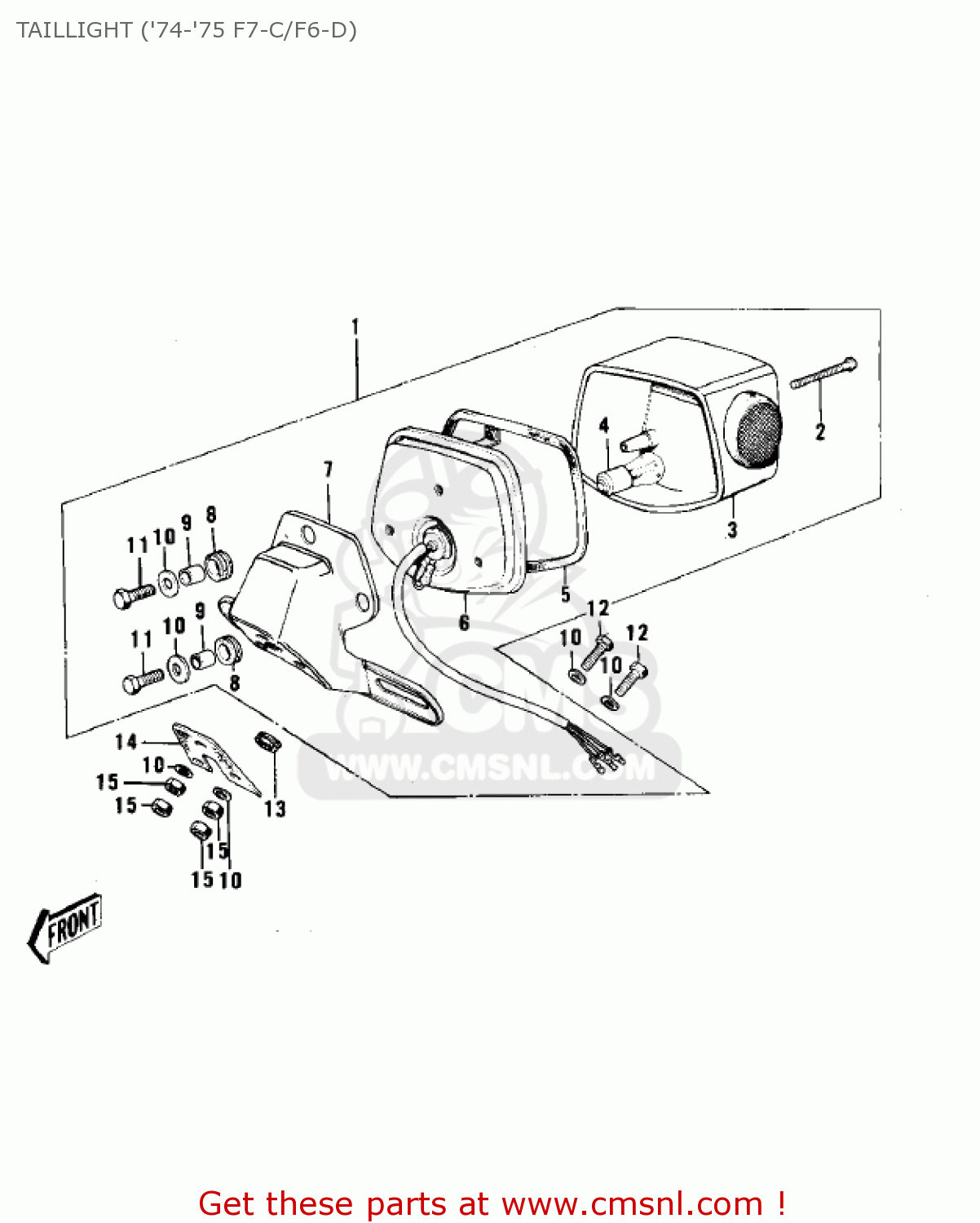

Taillight ('74-'75 f7-c/f6-d) diagram F7A 1972 USA
TAILLIGHT ('74-'75 F7-C/F6-D) F7A 1972 USA
×
prices are in EUR
ref
part #
description
quantity
1
2302404521
ref: 1
FLAT BLACK
TAIL LAMP ASSEMBLY,FLAT BLACK
€ 239.50
2
220R0455
ref: 2
SCREW-PAN-CROS
€ 3.50
3
23026028
ref: 3
LENS,TAIL LAMP,W/REFL
€ 48.50
4
92069074
ref: 4
BULB,6V-32X3CP
€ 4.50
5
23028019
ref: 5
GASKET,TAIL LAMP LENS (NAS)
€ 5.50
6
230271018
ref: 6
TAIL LAMP BODY,COMPLETE
€ 55.00
7
2303603621
ref: 7
FLAT BLACK
LICENSE PLATE BRACKET,FLAT BLACK
€ 69.50
8
92075076
ref: 8
DAMPER
€ 3.00
9
92027129
ref: 9
COLLAR,6.8X10X8.5
€ 3.00
10
92022125
ref: 10
WASHER,6.5X20X1.6
€ 1.00
11
112G0620
ref: 11
BOLT 6X20
€ 1.00
12
112G0630
ref: 12
BOLT-UPSET
€ 1.00
13
92071019
ref: 13
GROMMET,10MM
€ 2.50
14
35039005
ref: 14
DAMPER,TAIL LAMP
€ 6.50
15
312B0600
ref: 15
NUT,6MM
€ 0.50
