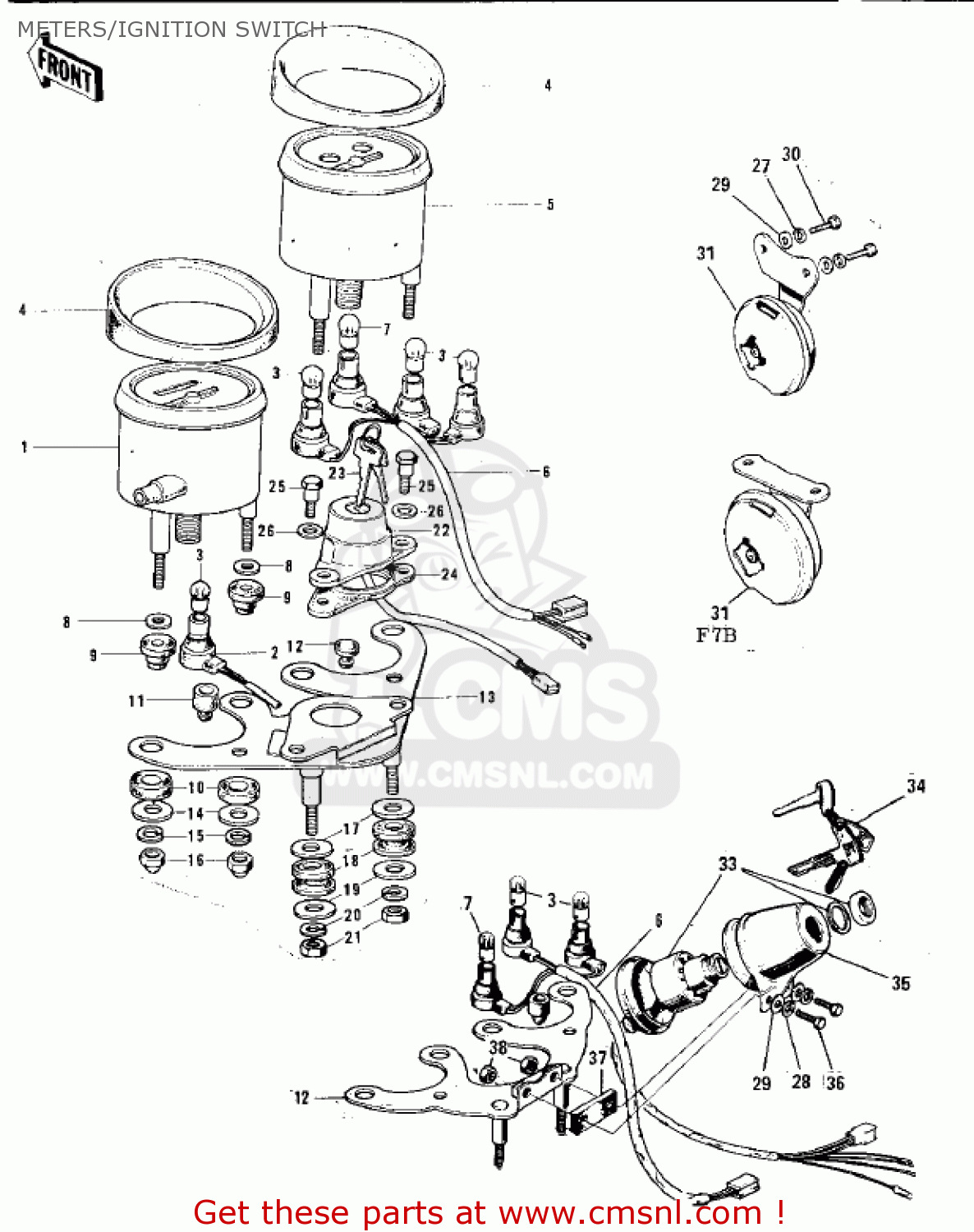

METERS/IGNITION SWITCH

ref

part #

description

quantity

?

25001045
ref: ?
Includes items 1 - 4

SPEEDOMETER ASSY,MPH

€ 164.50

?

25001045
ref: ?
Includes items 1 - 4

SPEEDOMETER ASSY,MPH

€ 164.50

2

25011015
ref: 2

SOCKET-SPEEDOMETER

€ 18.00

3

92069053
ref: 3
F7/F7A

BULB 6V 3W

€ 3.00

3

92069053
ref: 3
F7B

BULB 6V 3W

€ 3.00

4

25012003
ref: 4

COVER

€ 23.50

?

25015011
ref: ?
Includes items 3 - 7

TACHOMETER ASSY

€ 94.00

?

25015019
ref: ?
Includes items 3 - 7

TACHOMETER ASSY

€ 99.00

6

25011016
ref: 6
F7/F7A

SOCKET-TACHOMETER

€ 12.50

6

25011028
ref: 6
F7B

SOCKET-TACHOMETER

€ 21.00

7

92069024
ref: 7

BULB 6V 1.5W

€ 3.00

8

920221561
ref: 8

WASHER,8.5X20X1.6

€ 2.50

9

92075143
ref: 9

DAMPER RUBBER

€ 1.00

10

92075066
ref: 10

DAMPER RUBBER

€ 1.00

11

92075035
ref: 11

DAMPER

€ 3.00

12

92075155
ref: 12

DAMPER

€ 1.50

13

25008013
ref: 13
F7

SPEEDOMETER BRACKET

€ 40.00

13

25008015
ref: 13
F7A/F7B

BRACKET-METER

€ 19.00

14

92022285
ref: 14

WASHER,5.2X18X1.2

€ 4.50

15

461F0500
ref: 15

WASHER-SPRING,5MM

€ 0.50

16

322N0500
ref: 16

NUT-CAP,5MM

€ 2.00

17

411B0800
ref: 17

WASHER-PLAIN,8MM

€ 0.50

18

92075024
ref: 18

DAMPER

€ 2.50

19

92022125
ref: 19

WASHER,6.5X20X1.6

€ 1.00

20

461F0600
ref: 20

WASHER-SPRING,6MM

€ 0.50

21

311B0600
ref: 21

NUT,6MM

€ 0.50

?

27005068
ref: ?
Includes items 22 an

SWITCH ASSY,IGNITION

€ 106.50

23

2700804255
ref: 23

KEY SET,#155

€ 8.00

23

2700804256
ref: 23

KEY SET,#156

€ 8.00

23

2700804257
ref: 23

KEY SET,#157

€ 8.00

23

2700804258
ref: 23

KEY SET,#158

€ 8.00

23

2700804259
ref: 23

KEY SET,#159

€ 5.50

23

2700804260
ref: 23

KEY SET,#160

€ 4.50

23

2700804261
ref: 23

KEY SET,#161

€ 4.50

23

2700804262
ref: 23

KEY SET,#162

€ 4.00

23

2700804263
ref: 23

KEY SET,#163

€ 4.50

23

2700804264
ref: 23

KEY SET,#164

€ 4.00

24

92075077
ref: 24

DAMPER RUBBER

€ 7.00

25

92007026
ref: 25

BOLT-HEX HEAD,6MM

€ 6.00

26

410B0800
ref: 26

WASHER-PLAIN-SMALL,8M

€ 0.50

27

461F0600
ref: 27

WASHER-SPRING,6MM

€ 0.50

28

461F0800
ref: 28
E/NO. 2629~

WASHER-SPRING,8MM

€ 0.50

29

411B0600
ref: 29

WASHER-PLAIN,6MM

€ 0.50

30

112G0618
ref: 30

BOLT-UPSET

€ 0.50

31

27003062
ref: 31

HORN

€ 28.50

31

27003061
ref: 31
F7B

HORN

€ 36.00

32

25022002
ref: 32

CLAMP-CABLE

€ 3.50

?

27005035
ref: ?
Includes items 33 an

SWITCH ASSY,IGNITION

€ 39.00

35

27009009
ref: 35

HOUSING-IGNITIOM SW

€ 8.50

36

112B0622
ref: 36

BOLT, 6X22

€ 2.50

36

92003069
ref: 36
E/NO.2629~

BOLT,6MM

€ 5.50

37

92075072
ref: 37

DAMPER RUBBER

€ 0.50

38

312B0600
ref: 38

NUT,6MM

€ 0.50

39

25024002
ref: 39
INCL. SCREW F7/F7A

SPEEDOMETER TRIP KNOB

€ 6.50

39

25024003
ref: 39
INCL. SCREW F7B

KNOB,SPEEDOMETER TRIP

€ 4.50

all assemblies
