AIR CLEANER/MUFFLER ('71-'73 F7/
F7A 1972 USA

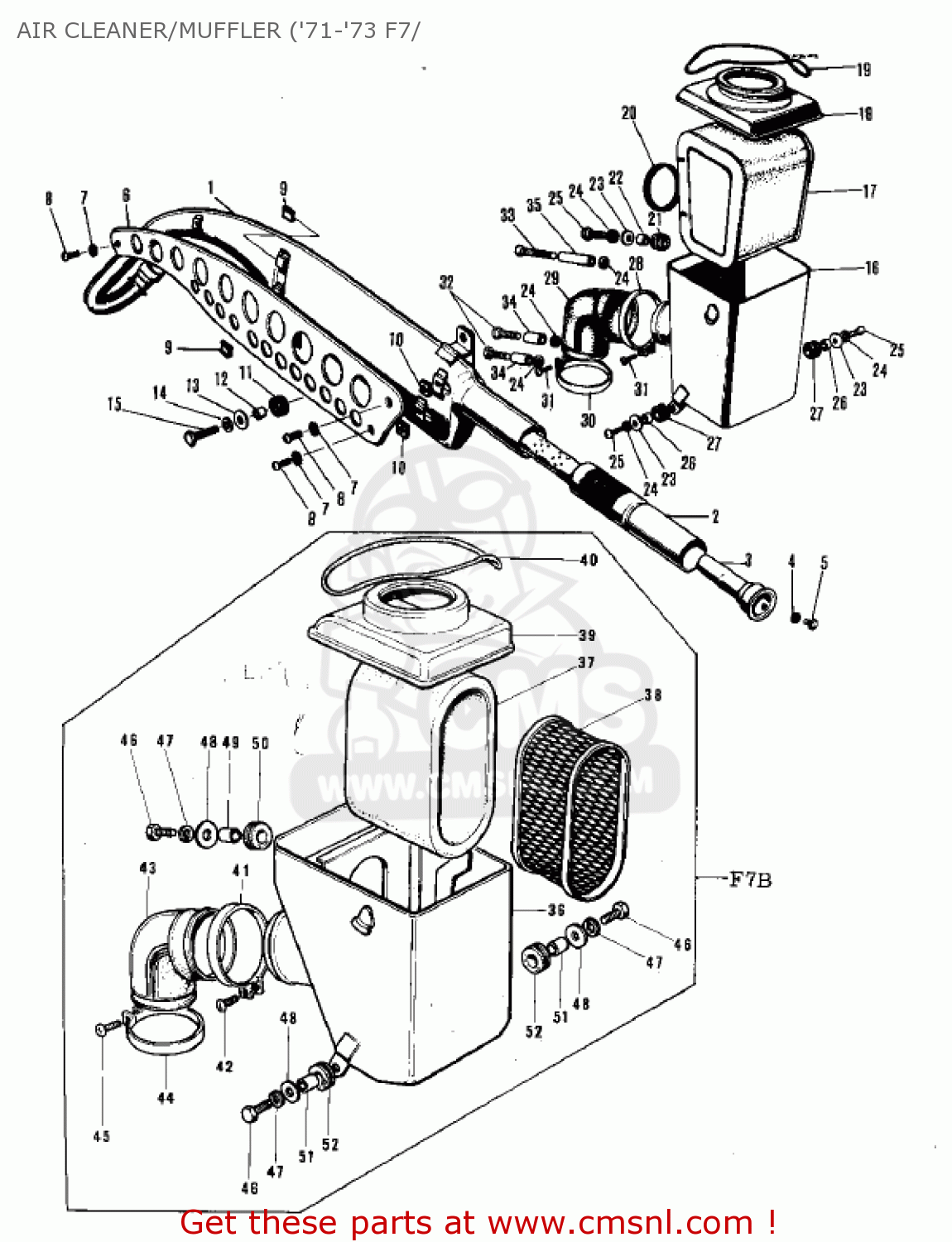

Air cleaner/muffler ('71-'73 f7/ diagram F7A 1972 USA
AIR CLEANER/MUFFLER ('71-'73 F7/ F7A 1972 USA
×
prices are in EUR
ref
part #
description
quantity
?
18001032
ref: ?
Includes items 1 - 5
MUFFLER ASSY
€ 234.50
?
18033073
ref: ?
Includes items 2 - 5
BAFFLE TUBE
€ 52.00
3
18048015
ref: 3
TAIL PIECE
€ 17.00
4
463H0600
ref: 4
WASHER-LOCK,6MM
€ 0.50
5
112G0612
ref: 5
BOLT-UPSET
€ 2.50
6
18064005
ref: 6
COVER-MUFFLER
€ 31.00
7
463H0600
ref: 7
WASHER-LOCK,6MM
€ 0.50
8
220E0612
ref: 8
SCREW-PAN HEAD,6X12
€ 3.00
9
18065007
ref: 9
INSULATOR,HEAT
€ 3.00
10
18065009
ref: 10
INSULATOR,HEAT
€ 3.00
11
18063005
ref: 11
DAMPER,MUFFLER
€ 3.00
12
92027102
ref: 12
COLLAR
€ 1.00
13
920221564
ref: 13
WASHER
€ 2.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
115G0825
ref: 15
BOLT-HEX,HEAD,8X25
€ 3.00
?
11010040
ref: ?
Includes items 16 -
AIR CLEANER ASSY
€ 44.50
16
11011012
ref: 16
AIR CLEANER BODY
€ 66.00
17
11013020
ref: 17
ELEMENT-AIR CLEANER
€ 18.00
18
11012015
ref: 18
CAP-AIR CLEANER
€ 5.50
19
671B25100
ref: 19
'O' RING,100MM
€ 6.00
20
11017007
ref: 20
GASKET-AIR CLEANER (NAS)
€ 3.00
21
92075051
ref: 21
L= 7 M/M
DAMPER RUBBER
€ 2.50
22
92027103
ref: 22
L= 6 M/M
COLLAR
€ 2.50
23
92022125
ref: 23
WASHER,6.5X20X1.6
€ 1.00
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
112G0620
ref: 25
BOLT 6X20
€ 1.00
26
92027120
ref: 26
L=10.5 M/M
COLLAR
€ 3.00
27
92071046
ref: 27
L=11.5 M/M
GROMMET
€ 3.00
28
92037129
ref: 28
I.D.= 83
CLAMP,AIR FILTER,ID=7
€ 8.50
29
11026003
ref: 29
CONNECTOR
€ 8.50
30
92037128
ref: 30
I.D.= 76
CLAMP,AIR CLEANER
€ 4.00
31
220B0635
ref: 31
SCREW-PAN HEAD,6X35
€ 1.00
32
92003066
ref: 32
BOLT-AIR CLEANER
€ 1.50
33
92003067
ref: 33
BOLT-AIR CLEANER
€ 1.50
34
92027127
ref: 34
COLLAR
€ 4.00
35
92027128
ref: 35
COLLAR
€ 1.50
?
11010061
ref: ?
Includes items 36 -
AIR CLEANER ASSY
€ 74.50
36
11011024
ref: 36
F7B
BODY-AIR CLEANER
€ 18.00
37
11013036
ref: 37
F7B
ELEMENT-AIR CLEANER
€ 18.00
38
11014007
ref: 38
F7B
HOLDER-CLENER ELEMENT
€ 10.00
39
11012028
ref: 39
F7B
CAP-AIR CLEANER
€ 23.00
42
220B0635
ref: 42
F7B
SCREW-PAN HEAD,6X35
€ 1.00
45
220B0630
ref: 45
F7B
SCREW-PAN HEAD,6X30
€ 2.50
46
112G0625
ref: 46
F7B
BOLT-UPSET,6X25
€ 4.00
47
461F0600
ref: 47
WASHER-SPRING,6MM
€ 0.50
