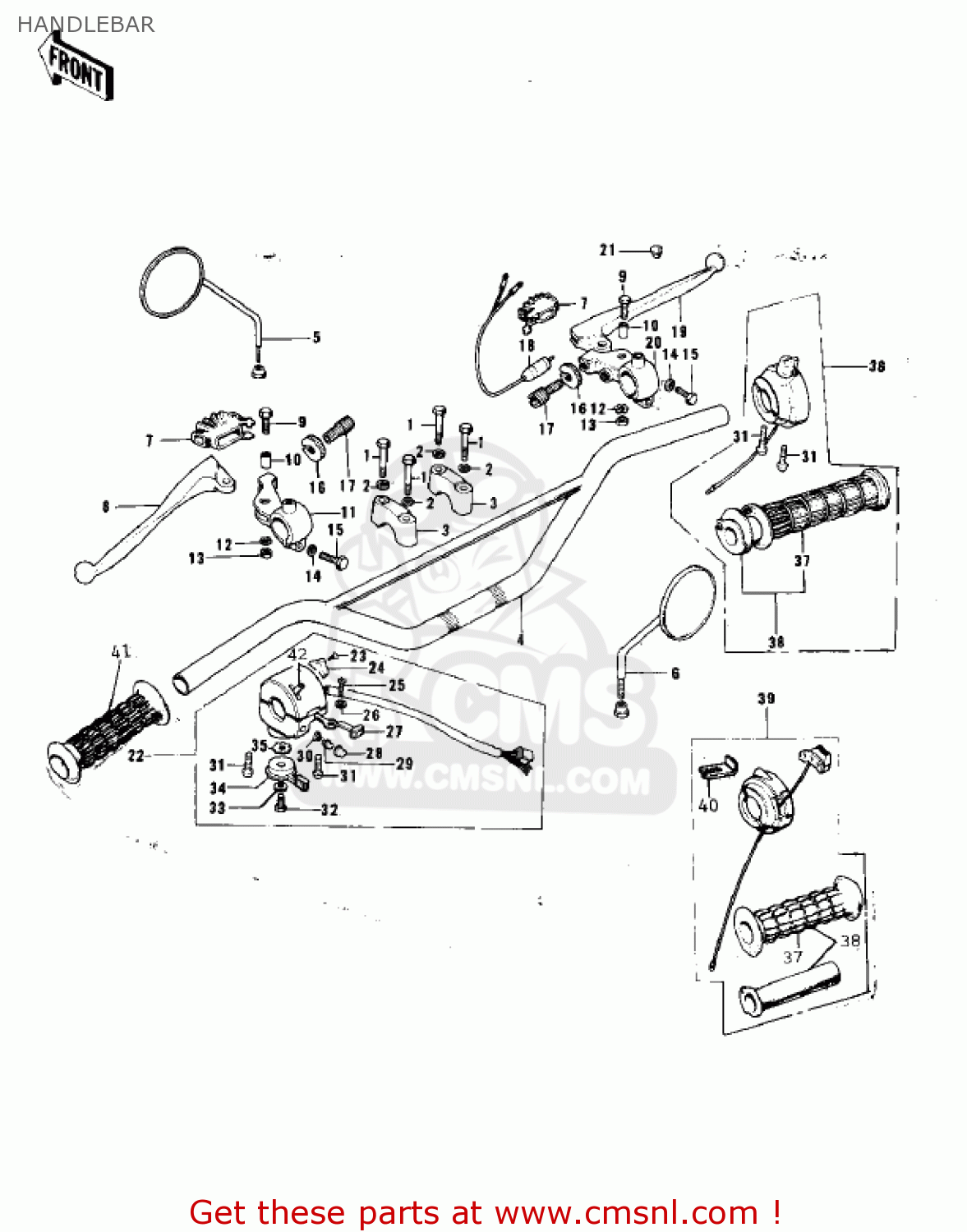

HANDLEBAR

ref

part #

description

quantity

1

920011405
ref: 1

BOLT,8X38

€ 10.00

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

46012008
ref: 3

HOLDER-HANDLE,UPP

€ 23.00

4

46004016
ref: 4

HANDLEBAR

€ 69.00

5

56003009
ref: 5

MIRROR-ASSY,LH

€ 50.00

6

56002020
ref: 6
OPTION

MIRROR-ASSY,RH

€ 47.50

7

46071002
ref: 7

DUST COVER

€ 12.50

8

46092015
ref: 8

LEVER-GRIP,CLUTCH

€ 11.50

9

92007020
ref: 9

BOLT-HEX HEAD,5X20

€ 2.50

10

46059011
ref: 10

COLLAR,LEVER

€ 3.50

11

4609401121
ref: 11
BLACK

HOLDER-CLUTCH LEV,BLK

€ 23.00

12

464H0500
ref: 12

WASHER-LOCK,5MM

€ 0.50

13

312B0500
ref: 13

NUT-HEX,5MM

€ 0.50

14

410B0600
ref: 14

WASHER-PLAIN-SMALL,6M

€ 0.50

15

110N0625
ref: 15

BOLT-HEX HEAD,6X25

€ 3.50

16

46056005
ref: 16

NUT-LOCK

€ 6.00

17

46055010
ref: 17
I.D=7

SCREW,CABLE ADJUST

€ 21.00

17

46055006
ref: 17
I.D=9

SCREW-CABLE ADJUST

€ 15.50

17

46055010
ref: 17
F7D

SCREW,CABLE ADJUST

€ 21.00

18

27021004
ref: 18

SWITCH,FR BRAKE LAMP

€ 23.00

19

46058004
ref: 19

LEVER-GRIP,FRONT BRAK

€ 24.00

20

4606000921
ref: 20
BLACK

HOLDER,BRAKE LEVER,FR

€ 27.00

21

92102009
ref: 21
NOT REQUIRED FOR 560

CAP-RR VIEW MIRROR

€ 3.00

22

4609101910
ref: 22
BLACK

CASE ASSY,L.H,BLACK

€ 40.00

23

221B0308A
ref: 23

SCREW-CNTSNK HD,3X8

€ 2.50

24

46044011
ref: 24

KNOB-L.H SWITCH

€ 6.00

?

99990531
ref: ?
Includes items 23 an

DIMMER SWITCH KIT B

€ 1.00

25

220B0305A
ref: 25

SCREW-PAN HEAD,3X5

€ 1.00

26

92095010
ref: 26

WASHER

€ 2.50

27

46044010
ref: 27

KNOB-SWITCH

€ 6.00

28

270101009
ref: 28

SWITCH ASSY,HORN BUTN

€ 5.50

29

270101009
ref: 29

SWITCH ASSY,HORN BUTN

€ 5.50

30

270101009
ref: 30

SWITCH ASSY,HORN BUTN

€ 5.50

31

220B0525
ref: 31

SCREW-PAN-CROS,5X25

€ 2.50

32

110B0608
ref: 32

BOLT-HEX HEAD,6X8

€ 0.50

33

410B0600
ref: 33

WASHER-PLAIN-SMALL,6M

€ 0.50

34

4609600810
ref: 34
BLACK

LEVER,STARTER,BLACK

€ 17.00

35

92095012
ref: 35

WASHER-LOCK

€ 3.50

36

4601802010
ref: 36
BLACK

CASE ASSY,R.H.

€ 59.50

37

46061013
ref: 37

RUBBER-R.H GRIP

€ 9.50

38

46019020
ref: 38

GRIP ASSY-THROTTLE

€ 14.00

38

46019034
ref: 38

GRIP ASSY,THROTTLE

€ 29.00

39

46018036
ref: 39
ABOUT E/NO 75001

CASE ASSY,R.H

€ 128.50

40

46037023
ref: 40
(FOR 46018-036)

HOLDER,CONTROL CABLE

€ 4.50

41

46075018
ref: 41

RUBBER-L.H GRIP

€ 10.00

41

46075019
ref: 41

RUBBER-L.H GRIP

€ 6.00

42

46089015
ref: 42

SWITCH ASSEMBLY,LH

€ 33.50
