REAR HUB/BRAKE/CHAIN ('74-'75 F7
F7A 1972 USA

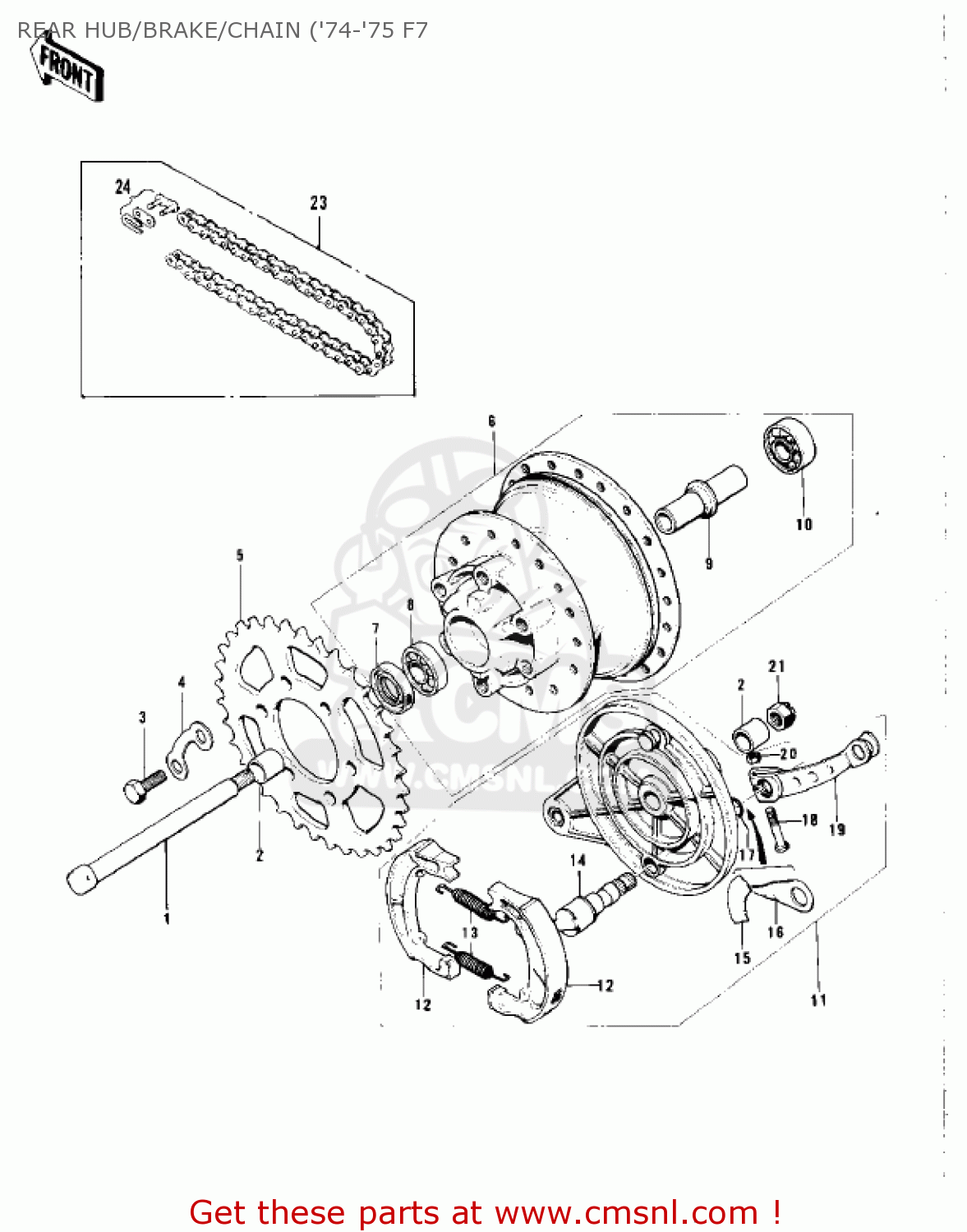

Rear hub/brake/chain ('74-'75 f7 diagram F7A 1972 USA
REAR HUB/BRAKE/CHAIN ('74-'75 F7 F7A 1972 USA
×
prices are in EUR
ref
part #
description
quantity
1
42031037
ref: 1
AXLE-REAR
€ 28.50
2
42032036
ref: 2
L=13.7 MM
COLLAR-REAR AXLE
€ 12.50
3
92001087
ref: 3
BOLT-HEX HEAD,10X25
€ 3.00
4
92088007
ref: 4
WASHER,LOCK
€ 8.00
5
42041085
ref: 5
STD
REAR SPROCKET 50T
€ 51.50
5
42041084
ref: 5
OPTION
REAR SPROCKET,46T
€ 146.00
6
42005029
ref: 6
F7-C
DRUM ASSY-REAR BRAKE
€ 136.00
6
4200502980
ref: 6
F7-D
DRUM ASY,RR BK,BUFF
€ 136.00
7
92050009
ref: 7
OIL SEAL-RR BRK DRUM
€ 12.00
8
601B6302
ref: 8
BEARING-BALL,#6302C3
€ 16.00
9
42010019
ref: 9
L=112 MM
SPACER-RR HUB BEARING
€ 11.50
10
601B6302Z
ref: 10
BEARING-BALL,#6302ZC3
€ 22.50
11
4200603980
ref: 11
REAR BRAKE PANEL ASSEMBLY,BUFF
€ 280.50
12
42019010
ref: 12
F7-C
SHOE,BRAKE (MCA)
€ 26.00
12
42019010
ref: 12
F7-D
SHOE,BRAKE (MCA)
€ 26.00
13
920811766
ref: 13
SPRING,BRAKE SHOE
€ 5.50
14
920811550
ref: 14
SPRING,BRAKE SHOE
€ 6.00
15
42026014
ref: 15
F7-C
CAM SHAFT,REAR BRAKE
€ 9.50
15
42026025
ref: 15
F7-D
CAM SHAFT,REAR BRAKE
€ 13.50
16
41084005
ref: 16
LABEL,BRAKE SHOE,REAR
€ 4.50
17
41085012
ref: 17
INDICATOR,BRAKE SHOE
€ 3.50
18
92055004
ref: 18
RING-O,BRAKE CAM
€ 3.00
19
112G0630
ref: 19
BOLT-UPSET
€ 1.00
20
42029023
ref: 20
LEVER-REAR BRAKE CAM
€ 11.50
21
41072007
ref: 21
NUT,6MM
€ 2.50
22
321B1400
ref: 22
NUT-CASTLE,14MM
€ 3.00
23
92057033
ref: 23
DRIVE CHAIN,428X114H
€ 74.50
24
920581015
ref: 24
JOINT-CHAIN,EK428SH
€ 3.50
