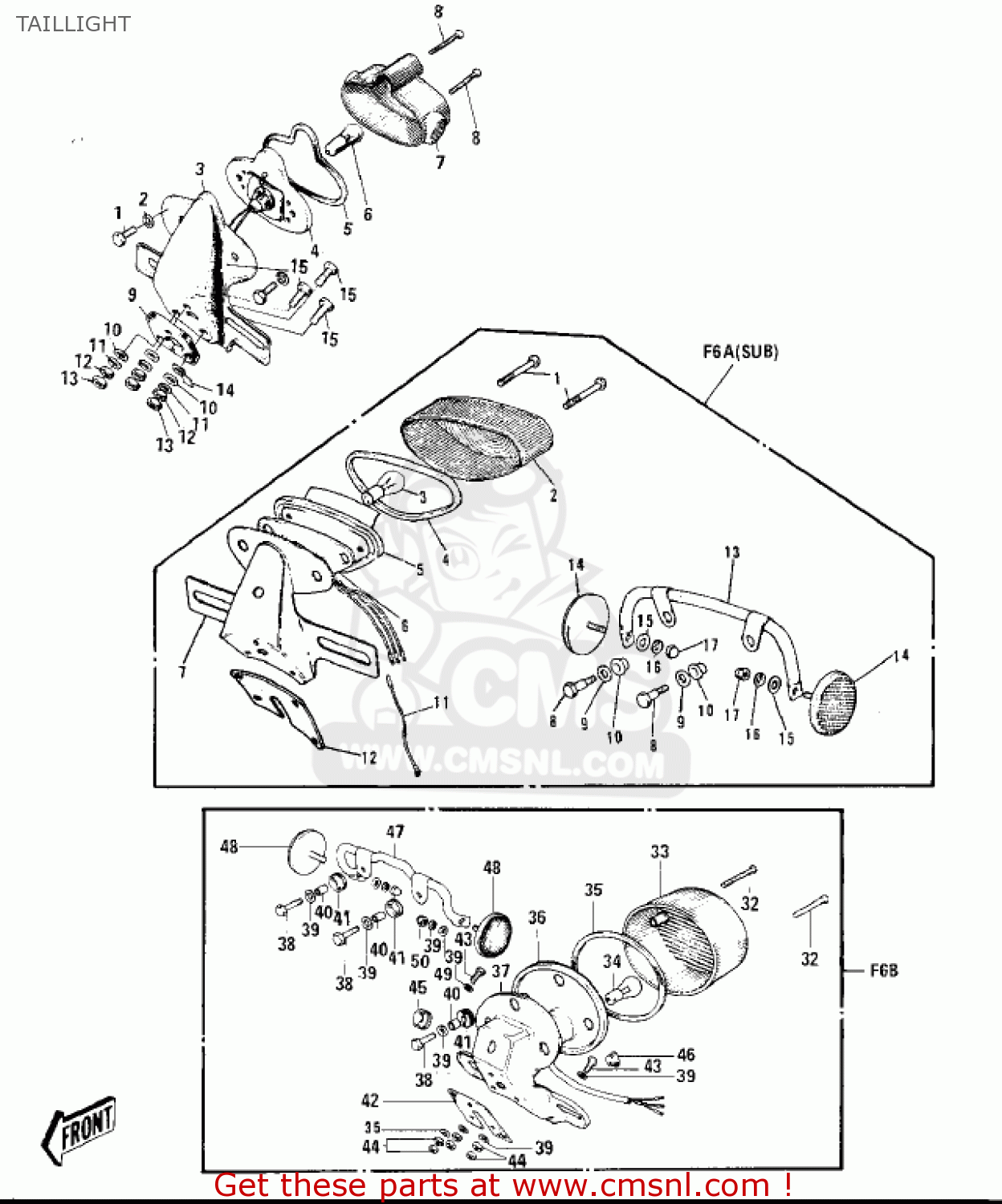

TAILLIGHT

ref

part #

description

quantity

?

2302401921
ref: ?
Includes items 1 - 8

LAMP ASSY-TAIL,BLACK

€ 99.00

1

110N0510
ref: 1
F6/A

BOLT-HEX HEAD,5X10

€ 0.50

2

461F0500
ref: 2
F6/A

WASHER-SPRING,5MM

€ 0.50

3

2303600710
ref: 3
F6/A

BKT-LICENSE PLT,BLACK

€ 33.00

4

23027009
ref: 4
F6/A

SOCKET-TAIL LAMP

€ 18.00

5

23028008
ref: 5
F6/A

GASKET-TAIL LAMP (NAS)

€ 4.00

6

92069023
ref: 6
F6/A

BULB 6V 3/21CP

€ 4.00

7

23026010
ref: 7
F6/A

LENS,TAIL LAMP

€ 64.50

8

220E0450
ref: 8
F6/A

SCREW-PAN HEAD,4X50

€ 3.00

9

35039005
ref: 9
F6/A

DAMPER,TAIL LAMP

€ 6.50

10

92022125
ref: 10
F6/A

WASHER,6.5X20X1.6

€ 1.00

11

461F0600
ref: 11
F6/A

WASHER-SPRING,6MM

€ 0.50

12

311B0600
ref: 12
F6/A

NUT,6MM

€ 0.50

13

312B0600
ref: 13
F6/A

NUT,6MM

€ 0.50

14

35024002
ref: 14
F6/A

CLAMP,WIRING HARNESS

€ 2.00

15

112G0635
ref: 15
F6/A

BOLT-UPSET,6X35

€ 2.50

?

2302401921
ref: ?
Includes items 16 -

LAMP ASSY-TAIL,BLACK

€ 99.00

16

220R0455
ref: 16
F6/A (SUB)

SCREW-PAN-CROS

€ 3.50

17

23026022
ref: 17
F6/A (SUB)

LENS,TAIL LAMP

€ 47.50

18

92069023
ref: 18
F6/A (SUB)

BULB 6V 3/21CP

€ 4.00

19

23038016
ref: 19
F6/A (SUB)

UNAVAILABLE IN PRICE BOOK

€ 0.00

?

23027029
ref: ?
Includes items 20 an

CASE-TAIL LAMP

€ 24.50

21

23028015
ref: 21
F6/A (SUB)

GASKET-TAIL LAMP CASE (NAS)

€ 6.50

22

2303601421
ref: 22
F6/A (SUB)

BKT-LICENSE PLT,BLACK

€ 25.50

23

92001111
ref: 23
F6/A (SUB)

BOLT

€ 6.50

24

920221561
ref: 24
F6/A (SUB)

WASHER,8.5X20X1.6

€ 2.50

25

92075091
ref: 25
F6/A (SUB)

DAMPER RUBBER

€ 1.50

26

26011014
ref: 26
F6/A (SUB)

WIRE-IGNITION LEAD

€ 1.00

27

35039005
ref: 27
F6/A (SUB)

DAMPER,TAIL LAMP

€ 6.50

28

28013002
ref: 28
F6/A (SUB)

BRACKET-REFLECTOR

€ 8.50

29

28012008
ref: 29
F6/A (SUB)

REFLECTOR-REFLEX,REAR

€ 8.50

30

411B0500
ref: 30
F6/A (SUB)

WASHER-PLAIN,5MM

€ 0.50

31

322N0500
ref: 31
F6/A (SUB)

NUT-CAP,5MM

€ 2.00

?

2302406921
ref: ?
Includes items 32 -

LAMP ASSY,TAIL,BLACK

€ 103.50

32

220E0435A
ref: 32
F6-B

SCREW-PAN HEAD,4X35

€ 4.50

33

23026023
ref: 33
F6-B

LENS,TAIL LAMP

€ 91.50

34

92069028
ref: 34
F6-B

BULB 6V 17/5.3W

€ 4.50

35

23028018
ref: 35
F6-B

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

36

23027030
ref: 36
F6-B

BODY-COMP-TAIL LAMP

€ 76.00

37

2303601921
ref: 37
F6-B

BKT-LICENSE PLT,BLACK

€ 62.00

38

112G0620
ref: 38
F6-B

BOLT 6X20

€ 1.00

39

92022125
ref: 39
F6-B

WASHER,6.5X20X1.6

€ 1.00

40

92027129
ref: 40
F6-B

COLLAR,6.8X10X8.5

€ 3.00

41

92075076
ref: 41
F6-B

DAMPER

€ 3.00

42

35039005
ref: 42
F6-B

DAMPER,TAIL LAMP

€ 6.50

43

112G0625
ref: 43
F6-B

BOLT-UPSET,6X25

€ 4.00

44

312B0600
ref: 44
F6-B

NUT,6MM

€ 0.50

45

92071019
ref: 45
F6-B

GROMMET,10MM

€ 2.50

46

92074006
ref: 46
F6-B

PLUG,FENDER,RR,12X1

€ 4.00

47

28013005
ref: 47
F6-B

BRACKET-REFLECTOR

€ 13.00

48

28012009
ref: 48
F6-B

REFLECTOR-REFLEX,RR

€ 17.50

49

411B0500
ref: 49
F6-B

WASHER-PLAIN,5MM

€ 0.50

50

92020013
ref: 50
F6-B

NUT,CROWN,10MM

€ 12.50

all assemblies
