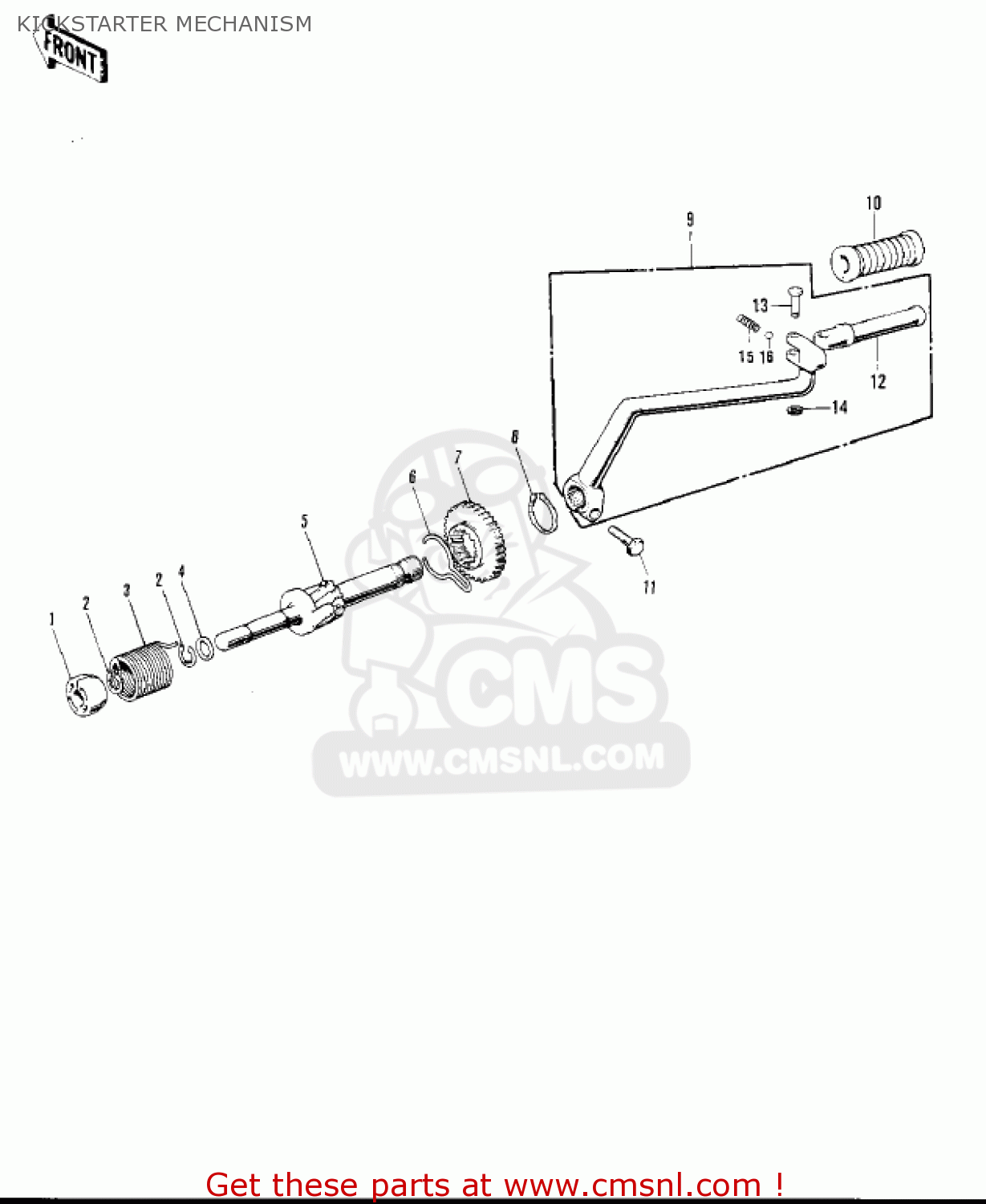

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

13070001
ref: 1

GUIDE,KICK SPRING

€ 9.00

2

482J0100
ref: 2

CIRCLIP-TYPE-E,10MM

€ 0.50

3

92082002
ref: 3

SPRING-KICKSTARTER

€ 16.50

4

92022150
ref: 4

SHIM-KICK SHAFT,0.5T

€ 2.00

5

13245004
ref: 5

SHAFT ASY-KICKSTARTER

€ 38.50

6

13077002
ref: 6

HOLDER-KICK GEAR

€ 2.50

7

13068026
ref: 7

GEAR-KICKSTARTER

€ 23.00

8

92033022
ref: 8

CIRCLIP

€ 6.50

9

13064020
ref: 9

PEDAL ASSY,KICKSTARTE

€ 72.50

10

13063004
ref: 10

DAMPER,KICK PEDAL

€ 6.50

11

115G0825
ref: 11

BOLT-HEX,HEAD,8X25

€ 3.00

12

13060012
ref: 12

KICKSTARTER LEVER

€ 62.50

13

92043088
ref: 13

PIN,KICK PEDAL

€ 2.00

14

482K5000
ref: 14

CIRCLIP,5MM

€ 2.00

15

92081049
ref: 15

SPRING,KICK LEVER

€ 2.50

16

600A1100
ref: 16

BALL-STEEL,11/32

€ 0.50

all assemblies
