SWING ARM/SHOCK ABSORBERS
F6A 1972 USA CANADA

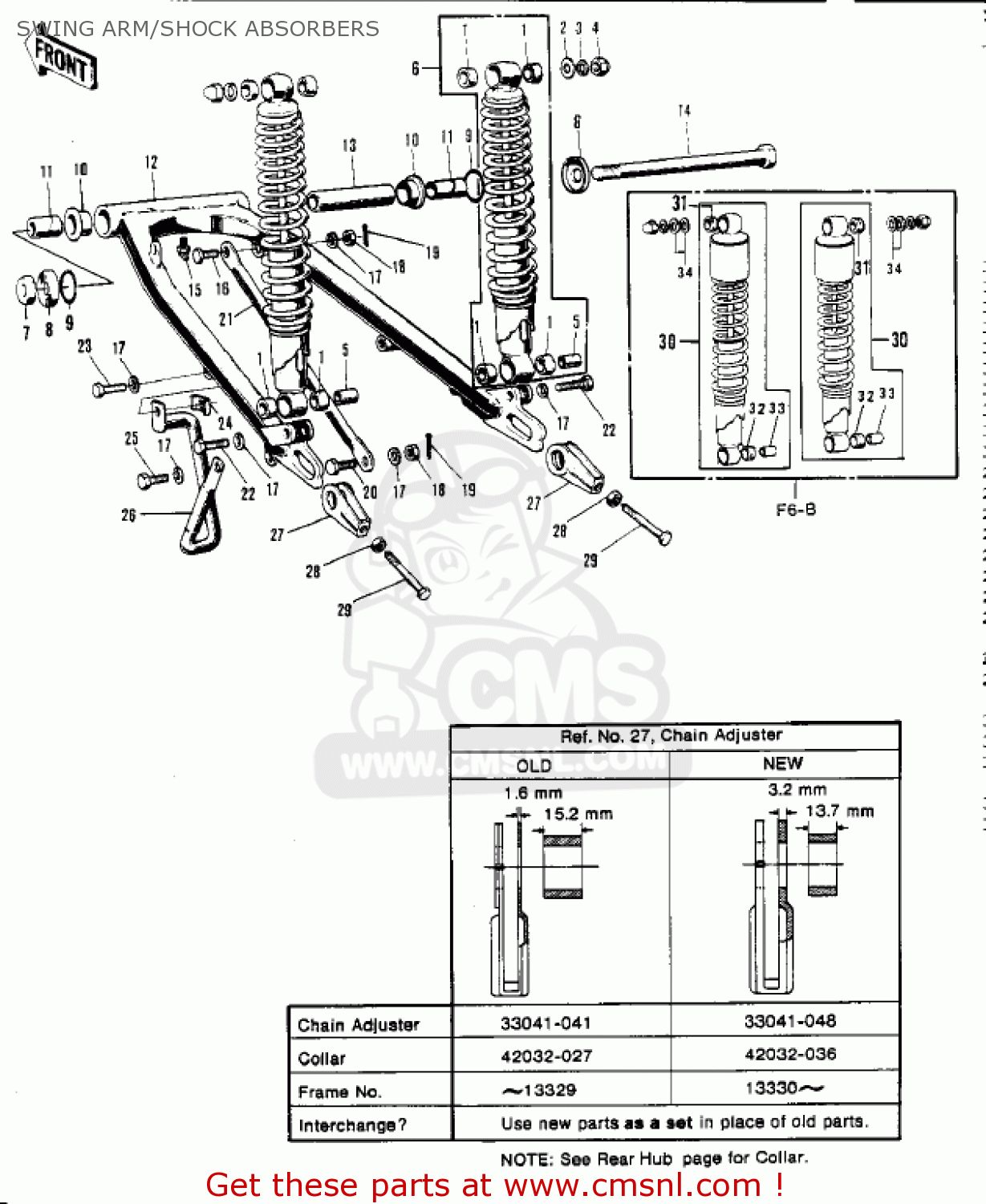

Swing arm/shock absorbers diagram F6A 1972 USA CANADA
SWING ARM/SHOCK ABSORBERS F6A 1972 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
45017005
ref: 1
F6/A
BUSH-SHOCK ABSORBER
€ 2.50
2
92022044
ref: 2
F6/A
WASHER,10.5X26X2.3
€ 2.50
3
461F1000
ref: 3
F6/A
WASHER-SPRING,10MM
€ 0.50
4
92020003
ref: 4
NUT-SHOCK ABSORBER
€ 4.00
5
45016003
ref: 5
F6/A
COLLAR,SHOCKABSORBER
€ 12.50
6
45014058
ref: 6
F6
SHOCK ABSORBER,REAR
€ 253.00
6
45014070
ref: 6
F6-A
SHOCK ABSORBER-REAR
€ 62.50
7
92019009
ref: 7
NUT,LOCK,12MM
€ 5.00
8
33035005
ref: 8
CAP,SWING ARM
€ 5.50
9
671B2530
ref: 9
O RING,30MM
€ 3.00
10
33033009
ref: 10
BUSHING,SWING ARM
€ 57.00
11
33034016
ref: 11
SLEEVE,12.1X22X39
€ 14.50
12
33001035
ref: 12
ARM-SWING
€ 87.00
13
33036002
ref: 13
COLLAR,SWING ARM
€ 8.00
14
33032029
ref: 14
SHAFT-SWING ARM
€ 18.50
15
92005002
ref: 15
GREASE NIPPLE
€ 4.00
16
92003017
ref: 16
BOLT-TRQ LINK 10X25
€ 3.50
17
461F1000
ref: 17
WASHER-SPRING,10MM
€ 0.50
18
314B1000
ref: 18
NUT,10MM
€ 0.50
19
550D2015
ref: 19
PIN-COTTER,2.0X15
€ 1.00
20
92003003
ref: 20
BOLT-HEX HEAD,10X32
€ 4.00
21
43007018
ref: 21
TORQUE LINK,REAR BRK
€ 8.50
22
113N1035
ref: 22
BOLT-HEX HEAD,10X35
€ 6.00
23
920011254
ref: 23
BOLT,HEX HEAD,10X50
€ 2.50
24
92017009
ref: 24
NUT-CHAIN GUARD
€ 1.00
25
113G1018
ref: 25
BOLT,HEX HEAD,10X18
€ 2.50
26
55020005
ref: 26
GUARD-CHAIN
€ 12.00
27
42032027
ref: 27
~13329
COLLAR-REAR AXLE
€ 7.50
27
42032027
ref: 27
~13329
COLLAR-REAR AXLE
€ 7.50
27
42032036
ref: 27
13330~
COLLAR-REAR AXLE
€ 12.50
27
42032036
ref: 27
13330~
COLLAR-REAR AXLE
€ 12.50
28
312B0800
ref: 28
NUT,8MM
€ 0.50
29
920011399
ref: 29
BOLT,8X50
€ 6.00
29
920011399
ref: 29
BOLT,8X50
€ 6.00
30
45014075
ref: 30
F6-B
SHOCK ABSORBER-REAR
€ 116.50
31
45017018
ref: 31
F6-B
DAMPER,SHOCKABSORBER
€ 4.00
32
920751020
ref: 32
F6-B
DAMPER,SHOCKABSORBER
€ 3.00
32
920751020
ref: 32
F6-B
DAMPER,SHOCKABSORBER
€ 3.00
33
45016003
ref: 33
F6-B
COLLAR,SHOCKABSORBER
€ 12.50
34
92022044
ref: 34
F6-B
WASHER,10.5X26X2.3
€ 2.50
