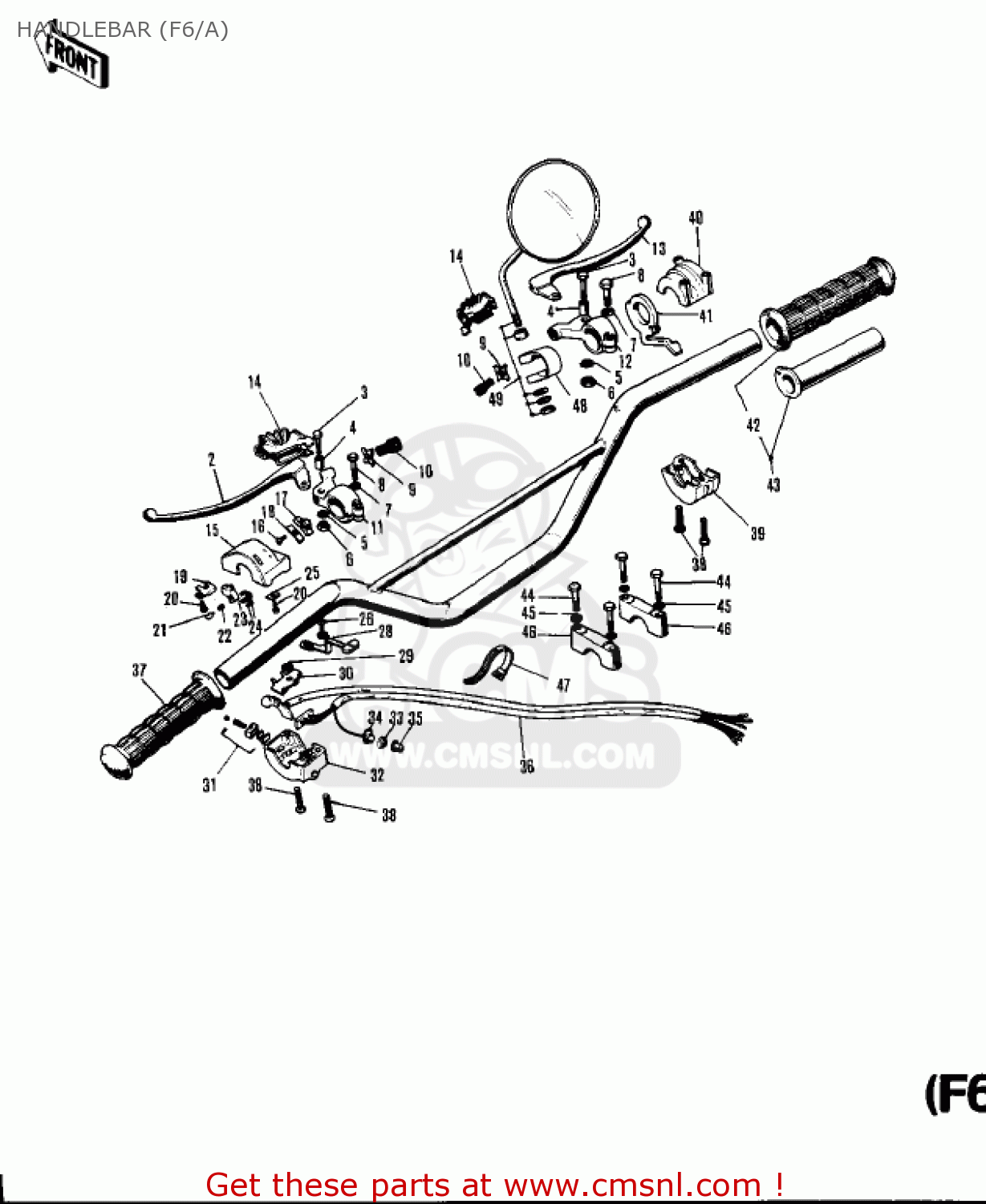

HANDLEBAR (F6/A)

ref

part #

description

quantity

1

46004016
ref: 1

HANDLEBAR

€ 69.00

?

46076014
ref: ?
Includes items 2 - 1

LEVER ASSY-CLUTCH

€ 30.00

2

46092015
ref: 2

LEVER-GRIP,CLUTCH

€ 11.50

3

92007020
ref: 3

BOLT-HEX HEAD,5X20

€ 2.50

4

46059011
ref: 4

COLLAR,LEVER

€ 3.50

5

464H0500
ref: 5

WASHER-LOCK,5MM

€ 0.50

6

312B0500
ref: 6

NUT-HEX,5MM

€ 0.50

7

410B0600
ref: 7

WASHER-PLAIN-SMALL,6M

€ 0.50

8

110N0622
ref: 8

BOLT,6X22

€ 2.00

9

46056001
ref: 9

NUT-ADJUST SCREW LOCK

€ 2.50

10

46055003
ref: 10

SCREW-CABLE ADJUST

€ 11.50

11

46094010
ref: 11

HOLDER,CLUTCH LEVER

€ 31.50

?

46021010
ref: ?
Includes items 12 an

LEVER ASSY-FRNT BRAKE

€ 35.50

12

46060006
ref: 12

HOLDER-FR BRAKE LEVER

€ 26.00

13

46058004
ref: 13

LEVER-GRIP,FRONT BRAK

€ 24.00

14

46071001
ref: 14

DUST COVER

€ 9.00

?

46091004
ref: ?
Includes items 15 -

CASE ASSY-L.H

€ 88.00

15

46086013
ref: 15

CASE-L.H SWITCH UPPER

€ 9.50

16

221B0308A
ref: 16

SCREW-CNTSNK HD,3X8

€ 2.50

17

46044011
ref: 17

KNOB-L.H SWITCH

€ 6.00

18

46031003
ref: 18

SPRING-L.H SW KNOB

€ 1.50

19

46085014
ref: 19

HOLDER-L.H SW LOWER,B

€ 1.00

20

220B0305A
ref: 20

SCREW-PAN HEAD,3X5

€ 1.00

21

46079002
ref: 21

CONTACT-L.H SWITCH

€ 1.50

22

46031004
ref: 22

SPRING-L.H SWITCH

€ 1.50

23

46089003
ref: 23

SWITCH-L.H

€ 2.50

24

46080002
ref: 24

PLATE-L.H SW CONTACT

€ 1.50

25

46085013
ref: 25

HOLDER-L.H SW UPPER,A

€ 1.50

26

220B0308
ref: 26

SCREW-PAN-CROS

€ 0.50

28

46044006
ref: 28

KNOB-SWITCH

€ 2.50

29

92095010
ref: 29

WASHER

€ 2.50

30

46085015
ref: 30

HOLDER-L.H SW LOWER

€ 1.00

31

46089004
ref: 31

SLIDE BLOCK AY-L.H SW

€ 6.50

32

46077015
ref: 32

CASE-L.H SWITCH LOWER

€ 9.50

33

270101009
ref: 33

SWITCH ASSY,HORN BUTN

€ 5.50

34

270101009
ref: 34

SWITCH ASSY,HORN BUTN

€ 5.50

35

270101009
ref: 35

SWITCH ASSY,HORN BUTN

€ 5.50

36

46082017
ref: 36

WIRING HARNESS-L.H SW

€ 12.50

37

46075017
ref: 37

GRIP,LH

€ 15.50

38

220B0522
ref: 38

SCREW-PAN-CROS

€ 0.50

?

46018019
ref: ?
Includes items 38 -

CASE ASSY-R.H

€ 67.50

39

46023005
ref: 39

CASE-R.H LOWER

€ 13.00

39

46023005
ref: 39

CASE-R.H LOWER

€ 13.00

40

46041005
ref: 40

CASE-R.H UPPER

€ 59.50

41

46096006
ref: 41

LEVER-STARTER

€ 29.00

42

46061012
ref: 42

GRIP,RUBBER,RH

€ 18.50

43

46019013
ref: 43
F6

GRIP ASSY,THROTTLE

€ 15.00

43

46019018
ref: 43
F6-A

GRIP ASSY-THROTTLE

€ 13.50

44

920011405
ref: 44

BOLT,8X38

€ 10.00

45

461F0800
ref: 45

WASHER-SPRING,8MM

€ 0.50

46

46012008
ref: 46
BLACK

HOLDER-HANDLE,UPP

€ 23.00

46

46012004
ref: 46
SILVER

HOLDER-UPPER HANDLBAR

€ 14.00

47

92072030
ref: 47

BAND,SHORT

€ 3.00

48

56006001
ref: 48

PLATE,MIRROR

€ 8.50

49

56003016
ref: 49
SELEO

REAR VIEW MIRROR,L.H

€ 54.00

49

56002024
ref: 49
USE

MIRROR-ASSY,RH

€ 60.00
