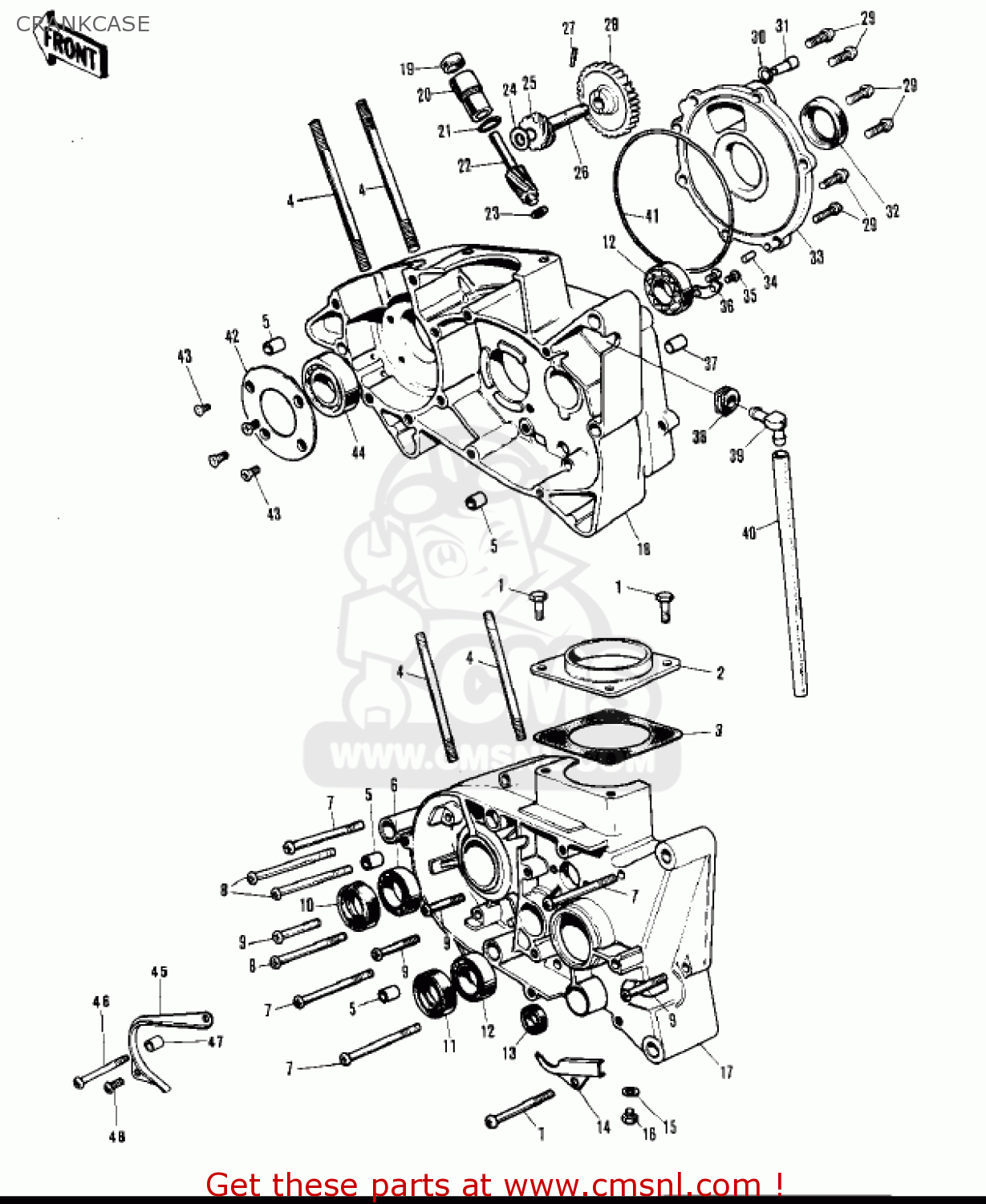

CRANKCASE

ref

part #

description

quantity

1

112G0620
ref: 1

BOLT 6X20

€ 1.00

2

11015022
ref: 2

INLET PIPE

€ 6.50

3

11017006
ref: 3

GASKET-INLET PIPE (NAS)

€ 7.00

4

172G0870
ref: 4

STUD,8X70

€ 3.50

5

920431037
ref: 5

PIN,DOWEL,10X8.2X14

€ 0.50

6

601B6205
ref: 6

BEARING-BALL,#6205C3

€ 14.00

7

220B0665
ref: 7

SCREW-PAN HEAD,6X65

€ 2.50

8

220B0655
ref: 8

SCREW-PAN HEAD,6X55

€ 2.50

9

220B0640
ref: 9

SCREW-PAN HEAD,6X40

€ 2.00

10

920491250
ref: 10

SEAL-OIL

€ 12.00

11

92050039
ref: 11

OIL SEAL SC30426

€ 9.00

12

920451046
ref: 12

BEARING-BALL,6204C3

€ 22.00

13

92049004
ref: 13

OIL SEAL SB12205

€ 6.00

14

14076002
ref: 14

COVER-WIRING HARNESS

€ 2.50

15

92065058
ref: 15

GASKET, 10,5X16X1 (NAS)

€ 2.50

16

92067001
ref: 16

PLUG-OIL DRAIN

€ 3.00

17

14002078
ref: 17

CRANKCASE,L.H

€ 165.00

18

14003052
ref: 18

CRANKCASE,R.H

€ 111.00

19

92054004
ref: 19

OIL SEAL

€ 14.50

20

92028095
ref: 20

BUSH-TACHOMETER

€ 6.00

21

92055025
ref: 21

'O' RING

€ 3.00

22

13223003
ref: 22

GEAR-TACHOMETER

€ 22.50

23

92026026
ref: 23

WASHER-THRUST

€ 5.50

24

92026025
ref: 24

WASHER-THRUST

€ 7.00

25

13224007
ref: 25

GEAR-TACHOMETER

€ 15.50

26

16086002
ref: 26

SHAFT-OIL PUMP GEAR

€ 4.50

27

92042035
ref: 27

PIN,DOWEL,2.5X12.8

€ 2.50

28

16085016
ref: 28

GEAR-OIL PUMP

€ 27.00

29

220B0620
ref: 29

SCREW-PAN HEAD,6X20

€ 2.50

30

92055037
ref: 30

RING-O,CHECK VALVE

€ 2.50

31

16128006
ref: 31

VALVE-CHECK

€ 7.50

32

653B324507
ref: 32

OIL SEAL,TB32457

€ 11.50

33

14019046
ref: 33

COVER-ROTARY DISC VLV

€ 31.00

34

610A0512
ref: 34

ROLLER,5X12

€ 3.00

35

220B0612
ref: 35

SCREW-PAN HEAD,6X12

€ 1.00

36

14014022
ref: 36

HOLDER-MISSION BERNG

€ 2.00

37

551A0816
ref: 37

PIN-DOWEL,8X16

€ 0.50

38

92071042
ref: 38

GROMMET

€ 2.50

39

140691001
ref: 39

BREATHER

€ 17.50

40

92059061
ref: 40

PIPE-BREATHER

€ 3.00

41

92055019
ref: 41

RING-O,120MM

€ 8.50

42

14014021
ref: 42

HOLDER-CRANK BEARING

€ 2.00

43

221B0616
ref: 43

SCREW-CNTSNK HD,6X16

€ 0.50

44

601B6305
ref: 44

BEARING-BALL,#6305C3

€ 30.00

45

14077002
ref: 45
F6-B

GUIDE-CHAIN

€ 7.50

46

220B0685
ref: 46
F6-B

SCREW-PAN HEAD,6X85

€ 3.50

47

92027169
ref: 47
F6-B

COLLAR,6.8X10X16

€ 4.00

48

220B0612
ref: 48
F6-B

SCREW-PAN HEAD,6X12

€ 1.00
