TRANSMISSION/CHANGE DRUM
F6 1971 USA CANADA

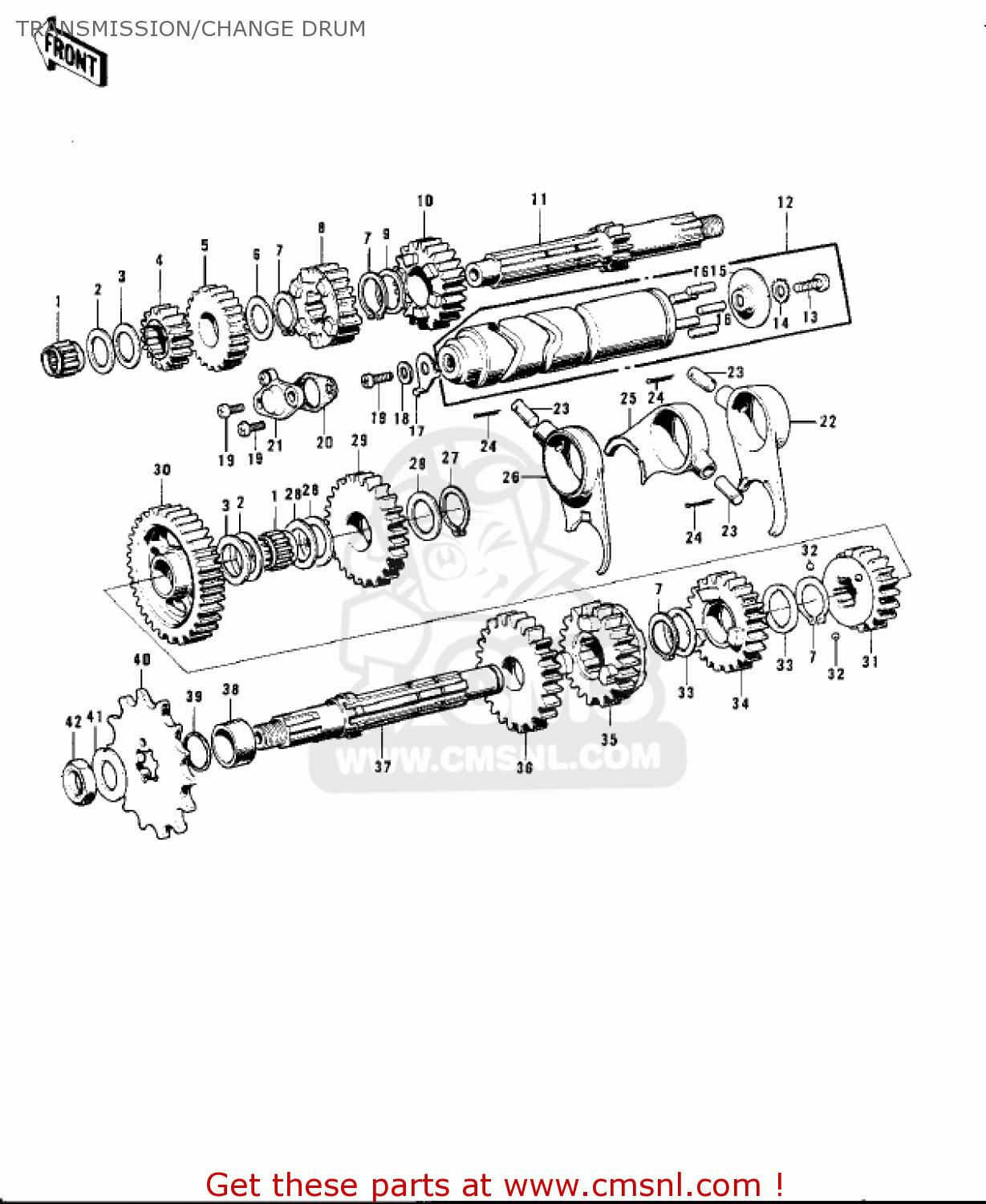

Transmission/change drum diagram F6 1971 USA CANADA
TRANSMISSION/CHANGE DRUM F6 1971 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92046026
ref: 1
BEARING-NEEDLE,#7E-HK
€ 24.50
2
92022170
ref: 2
I.D.=16.50
WASHER-THRUST
€ 6.00
3
92022171
ref: 3
PHOSPHOR-BRONZE
WASHER-THRUST
€ 2.50
4
13130024
ref: 4
16T
2ND GEAR-DRIVE SHAFT
€ 29.50
5
13134008
ref: 5
23T
4TH GEAR-DRIVE SHAFT
€ 33.00
6
92022181
ref: 6
I.D.=22.50
WASHER,22.5X30X2.6
€ 3.50
7
480J2100
ref: 7
T=2.6
CIRCLIP-TYPE-C,21MM
€ 3.00
8
13132022
ref: 8
20T
3RD GEAR-DRIVE SHAFT
€ 71.00
9
92022106
ref: 9
I.D.=22.50
WASHER,22.5X30X1
€ 2.50
10
13136031
ref: 10
25T
TOP GEAR-DRIVE SHAFT
€ 33.00
11
13127029
ref: 11
12T
SHAFT-DRIVE
€ 86.00
12
13239002
ref: 12
DRUM ASSY-GEAR CHANGE
€ 125.00
13
220B0614
ref: 13
SCREW-PAN HEAD,6X14
€ 2.00
14
464H0600
ref: 14
WASHER-LOCK,6MM
€ 0.50
15
13142009
ref: 15
PLATE-CHANGE DRUM PIN
€ 6.00
16
92042014
ref: 16
PIN-GEAR CHANGE DRUM
€ 0.50
17
210071003
ref: 17
ROTOR,TOP & NEUTRAL
€ 4.50
18
410B0600
ref: 18
WASHER-PLAIN-SMALL,6M
€ 0.50
19
220B0616
ref: 19
SCREW-PAN HEAD,6X16
€ 2.50
20
13146002
ref: 20
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
21
131511001
ref: 21
SWITCH-COMP,NEUTRAL
€ 9.50
22
13140050
ref: 22
FORK-SELECTOR
€ 38.00
23
92043005
ref: 23
PIN,DOWEL,8X15
€ 4.50
24
550D3020
ref: 24
PIN-COTTER,3.0X20
€ 2.00
25
13140049
ref: 25
FORK-SELECTOR
€ 38.00
26
13140030
ref: 26
FORK-SELECTOR
€ 60.50
27
480J1500
ref: 27
CIRCLIP-TYPE-C,15MM
€ 1.00
28
92022169
ref: 28
I.D.=16.50
WASHER-PLAIN
€ 3.00
29
13073009
ref: 29
29T
IDLE GEAR-KICKSTARTER
€ 68.50
30
13129051
ref: 30
32T
LOW GEAR,OUTPUT SHAF
€ 25.50
31
13137016
ref: 31
18T
TOP GEAR-OUTPUT SHAFT
€ 38.50
32
600A0500
ref: 32
BALL-STEEL,5/32
€ 0.50
33
92024031
ref: 33
WASHER,TOOTHED,22.5X3
€ 4.00
34
13133021
ref: 34
24T
3RD GEAR-OUTPUT SHAFT
€ 41.50
35
13135012
ref: 35
21T
4TH GEAR-OUTPUT SHAFT
€ 49.50
36
13131029
ref: 36
28T
2ND GEAR-OUTPUT SHAFT
€ 68.50
37
13128028
ref: 37
SHAFT-OUTPUT
€ 78.50
38
92027180
ref: 38
COLLAR,ENG SPROCKET
€ 29.50
39
92055022
ref: 39
'O' RING
€ 4.00
40
13249002
ref: 40
S.T.D.
ENG SPROCKET ASY,14T
€ 18.00
40
13249001
ref: 40
OPTION
ENG SPROCKET ASY,13T
€ 43.00
40
13249003
ref: 40
OPTION
ENG SPROCKET,ASY,15T
€ 35.50
41
92024002
ref: 41
WASHER,CLAW,12.5X30X0
€ 3.50
42
92016024
ref: 42
NUT,12MM
€ 3.50
