METERS (F6/A)
F6 1971 USA CANADA

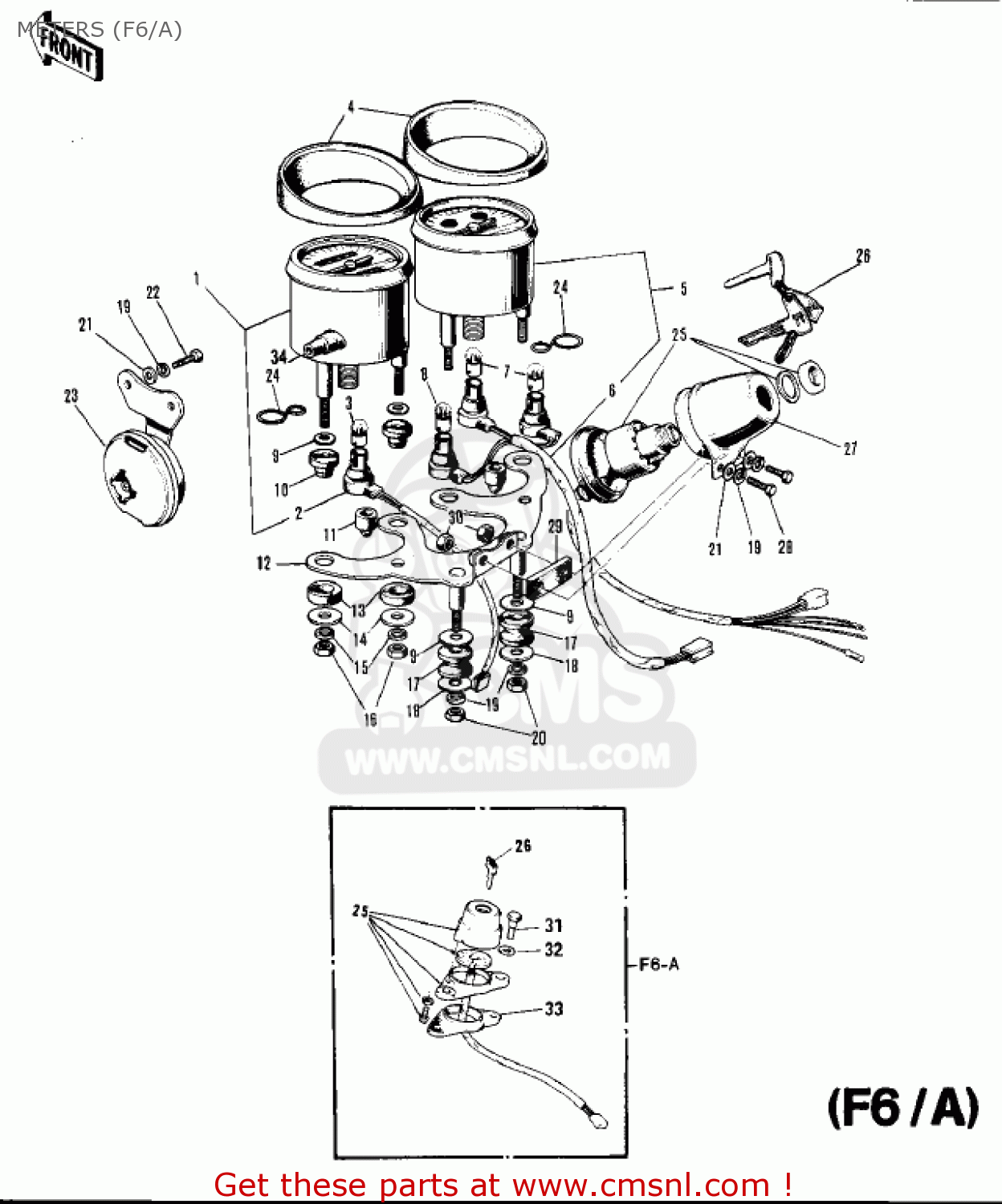

Meters (f6/a) diagram F6 1971 USA CANADA
METERS (F6/A) F6 1971 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
?
25001045
ref: ?
Includes items 1 - 4
SPEEDOMETER ASSY,MPH
€ 164.50
?
25001032
ref: ?
Includes items 1 - 4
SPEEDOMETER ASSY KPH
€ 80.50
2
25011015
ref: 2
SOCKET-SPEEDOMETER
€ 18.00
3
92069053
ref: 3
BULB 6V 3W
€ 3.00
4
25012003
ref: 4
COVER
€ 23.50
?
25015019
ref: ?
Includes items 4 - 8
TACHOMETER ASSY
€ 99.00
6
25011028
ref: 6
SOCKET-TACHOMETER
€ 21.00
7
92069053
ref: 7
BULB 6V 3W
€ 3.00
8
92069024
ref: 8
BULB 6V 1.5W
€ 3.00
9
411B0800
ref: 9
WASHER-PLAIN,8MM
€ 0.50
10
92075065
ref: 10
DAMPER RUBBER
€ 1.00
11
92075035
ref: 11
DAMPER
€ 3.00
12
25008013
ref: 12
F6
SPEEDOMETER BRACKET
€ 40.00
12
25008015
ref: 12
F6-A
BRACKET-METER
€ 19.00
13
92075066
ref: 13
DAMPER RUBBER
€ 1.00
14
92022104
ref: 14
WASHER-SPEEDMETR FIT
€ 2.50
15
461F0500
ref: 15
WASHER-SPRING,5MM
€ 0.50
16
311B0500
ref: 16
NUT-HEX
€ 0.50
17
92075024
ref: 17
DAMPER
€ 2.50
18
92022125
ref: 18
WASHER,6.5X20X1.6
€ 1.00
19
461F0600
ref: 19
WASHER-SPRING,6MM
€ 0.50
20
311B0600
ref: 20
NUT,6MM
€ 0.50
21
411B0600
ref: 21
WASHER-PLAIN,6MM
€ 0.50
22
112G0618
ref: 22
BOLT-UPSET
€ 0.50
23
27003062
ref: 23
HORN
€ 28.50
23
27003062
ref: 23
HORN
€ 28.50
24
25022002
ref: 24
CLAMP-CABLE
€ 3.50
?
27005035
ref: ?
Includes items 25 an
SWITCH ASSY,IGNITION
€ 39.00
?
27005068
ref: ?
Includes items 25 an
SWITCH ASSY,IGNITION
€ 106.50
26
2700804150
ref: 26
F6
KEY SET,#150
€ 22.00
26
2700804151
ref: 26
F6
KEY SET,#151
€ 23.50
26
2700804152
ref: 26
F6
KEY SET,#152
€ 23.50
26
2700804153
ref: 26
F6
KEY SET #153
€ 7.50
26
2700804154
ref: 26
F6
KEY SET,#154
€ 22.00
26
2700804255
ref: 26
F6-A
KEY SET,#155
€ 8.00
26
2700804256
ref: 26
F6-A
KEY SET,#156
€ 8.00
26
2700804257
ref: 26
F6-A
KEY SET,#157
€ 8.00
26
2700804258
ref: 26
F6-A
KEY SET,#158
€ 8.00
26
2700804259
ref: 26
F6-A
KEY SET,#159
€ 5.50
26
2700804360
ref: 26
F6-A
KEY SET,#160
€ 4.50
26
2700804361
ref: 26
F6-A
KEY SET,#161
€ 4.50
26
2700804362
ref: 26
F6-A
KEY SET,#162
€ 4.00
26
2700804363
ref: 26
F6-A
KEY SET,#163
€ 4.50
26
2700804364
ref: 26
F6-A
KEY SET,#164
€ 4.00
27
27009009
ref: 27
HOUSING-IGNITIOM SW
€ 8.50
28
92003069
ref: 28
BOLT,6MM
€ 5.50
28
112B0622
ref: 28
BOLT, 6X22
€ 2.50
29
92075072
ref: 29
DAMPER RUBBER
€ 0.50
30
312B0600
ref: 30
NUT,6MM
€ 0.50
31
92007026
ref: 31
F6-A
BOLT-HEX HEAD,6MM
€ 6.00
32
410B0800
ref: 32
F6-A
WASHER-PLAIN-SMALL,8M
€ 0.50
33
92075077
ref: 33
F6-A
DAMPER RUBBER
€ 7.00
34
25024002
ref: 34
SPEEDOMETER TRIP KNOB
€ 6.50
