FRONT FORK
F6 1971 USA CANADA

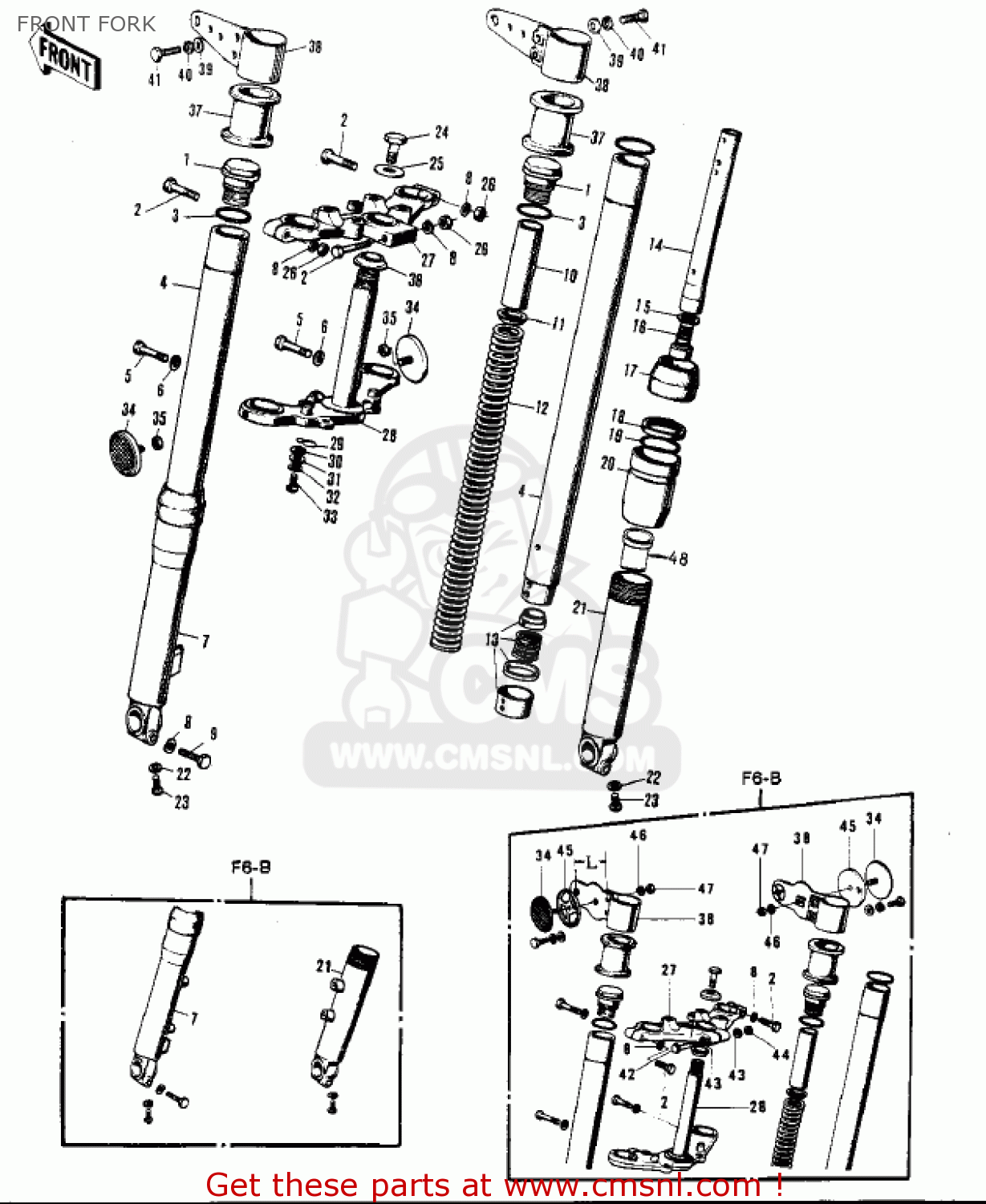

Front fork diagram F6 1971 USA CANADA
FRONT FORK F6 1971 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1-28
44001069
ref: 1-28
F6
FRONT FORK ASSEMBLY
€ 985.00
1-28
44001086
ref: 1-28
F6-A
FRONT FORK ASSY
€ 382.00
1-28
44001101
ref: 1-28
F6-B
FRONT FORK
€ 1,396.00
1
44041036
ref: 1
BOLT-FORK TOP
€ 9.50
2
920011578
ref: 2
F6/A
BOLT,FLANGED,8X40
€ 4.00
2
44041044
ref: 2
F6-B
BOLT-STEERING STEM HD
€ 6.50
3
44046014
ref: 3
'O' RING-INNER TUBE
€ 4.00
4
44013028
ref: 4
TUBE-FORK INNER
€ 85.00
5
113B1032
ref: 5
BOLT-HEX HEAD,10X32
€ 3.50
6
461F1000
ref: 6
WASHER-SPRING,10MM
€ 0.50
7
44005037
ref: 7
TUBE-L.H OUTER
€ 93.50
8
461F0800
ref: 8
F6/A
WASHER-SPRING,8MM
€ 0.50
8
461F0800
ref: 8
F6-B
WASHER-SPRING,8MM
€ 0.50
9
116B0825
ref: 9
BOLT-HEX HEAD,8X25
€ 3.00
10
44028106
ref: 10
UNAVAILABLE IN PRICE BOOK
€ 0.00
11
44029012
ref: 11
GUIDE-FORK SPRING
€ 1.00
12
44026036
ref: 12
SPRING-FORK
€ 11.50
13&14
44022006
ref: 13&14
CYLINDER-FORK
€ 94.00
15
44045030
ref: 15
GASKET,FORK CYLINDER
€ 2.50
16
44041027
ref: 16
BOLT-FORK CYLINDER
€ 2.50
17
44010006
ref: 17
SEAL,FORK
€ 24.00
18
920491049
ref: 18
SEAL-OIL
€ 14.50
19
44046012
ref: 19
RING-O,OUTER PIPE
€ 4.00
20
44007007
ref: 20
NUT-FORK OUTER TUBE
€ 41.50
21
44006035
ref: 21
TUBE-R.H OUTER
€ 113.50
22
44045002
ref: 22
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
23
220B0408
ref: 23
SCREW-PAN-CROS
€ 0.50
24
44041007
ref: 24
BOLT-STRNG STEM HEAD
€ 11.50
25
44043016
ref: 25
WASHER,FORK UPPER HOL
€ 7.00
26
311B0800
ref: 26
NUT,8MM
€ 0.50
27
44039035
ref: 27
F6 A
HEAD-STEERING STEM
€ 98.00
27
44039049
ref: 27
F6-B
HEAD-STEERING STEM
€ 91.50
28
44037035
ref: 28
F6
STEERING STEM
€ 267.00
28
44037039
ref: 28
F6-A
STEM-STEERING
€ 129.00
28
44037054
ref: 28
F6-B
STEM-STEERING
€ 133.50
29
92037046
ref: 29
CLAMP,CABLE
€ 3.00
30
464H0600
ref: 30
WASHER-LOCK,6MM
€ 0.50
31
411B0600
ref: 31
WASHER-PLAIN,6MM
€ 0.50
32
461F0600
ref: 32
WASHER-SPRING,6MM
€ 0.50
33
112G0610
ref: 33
BOLT,6X10
€ 0.50
34
28001007
ref: 34
F6 A
REFLECTOR-REFLEX
€ 3.00
34
28012006
ref: 34
F6-B
REFLECTOR-REFLEX,FRNT
€ 16.00
35
311B0500
ref: 35
NUT-HEX
€ 0.50
36
92047004
ref: 36
CONE-LOWER BEARING
€ 13.00
37
92075064
ref: 37
DAMPER RUBBER
€ 5.50
38
2306400421
ref: 38
F6 A
BRACKET-HEAD LAMP,BLK
€ 4.00
38
2306401221
ref: 38
F6-B
BRACKET-HEAD LAMP,BLK
€ 5.00
39
410B0600
ref: 39
WASHER-PLAIN-SMALL,6M
€ 0.50
40
461F0600
ref: 40
WASHER-SPRING,6MM
€ 0.50
41
112G0618
ref: 41
BOLT-UPSET
€ 0.50
42
44041042
ref: 42
F6-B
BOLT-STEERING STEM HD
€ 3.00
43
410B0800
ref: 43
F6-B
WASHER-PLAIN-SMALL,8M
€ 0.50
44
920151124
ref: 44
F6-B
NUT,LOCK,8MM
€ 3.50
45
92075137
ref: 45
F6-B
DAMPER RUBBER
€ 3.00
46
461F0500
ref: 46
WASHER-SPRING,5MM
€ 0.50
47
311B0500
ref: 47
NUT-HEX
€ 0.50
48
44015012
ref: 48
FORK INNER TUBE GUIDE
€ 22.00
