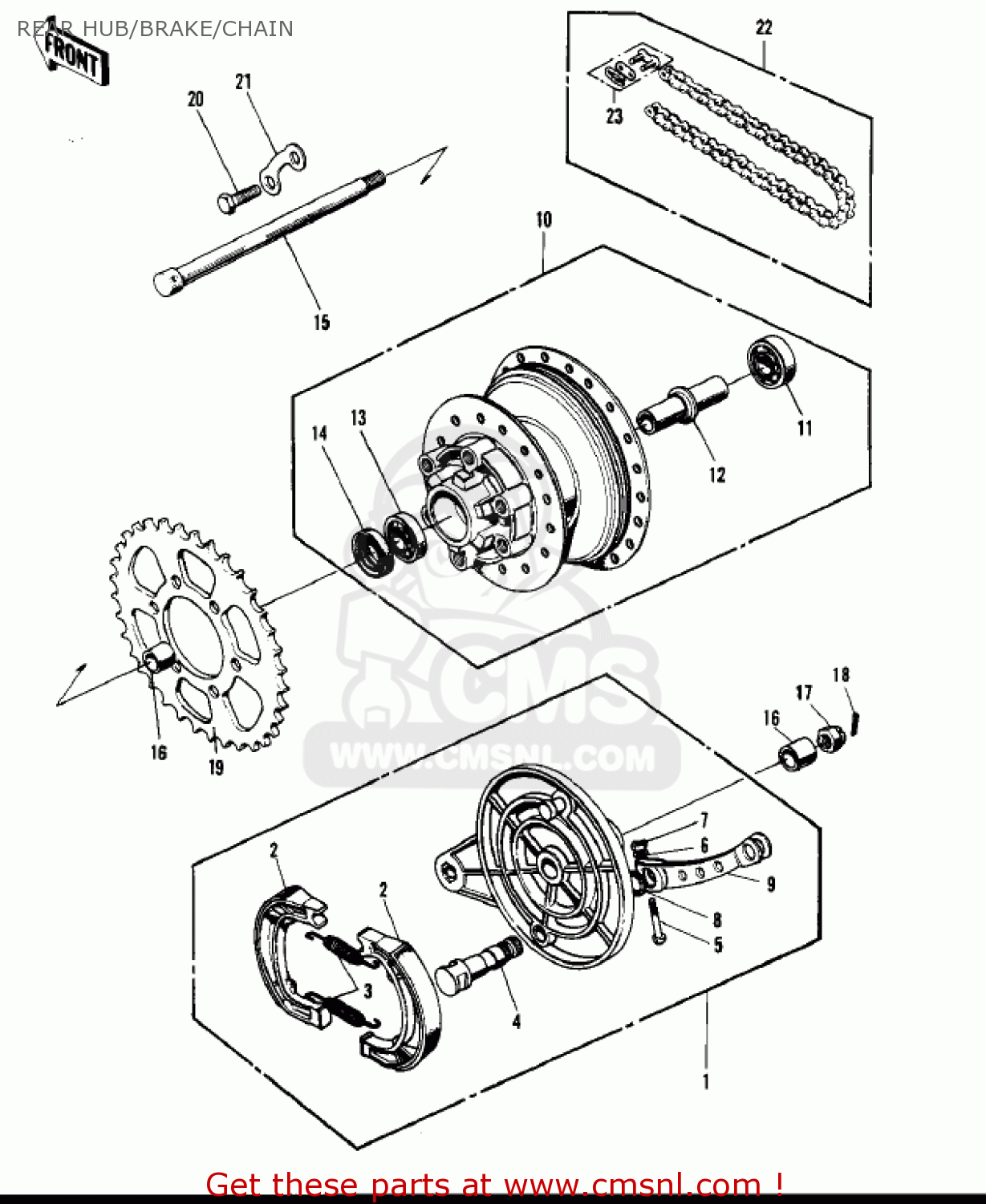

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

42006018
ref: 1
F6/A

PANEL ASSY-REAR BRAKE

€ 111.00

1

4200602821
ref: 1
F6-B

PANEL ASY-RR BRK,BLK

€ 67.00

2

410481007
ref: 2

SHOE, BRAKE (MCA)

€ 15.00

2

410481007
ref: 2

SHOE, BRAKE (MCA)

€ 15.00

3

920811766
ref: 3

SPRING,BRAKE SHOE

€ 5.50

4

41050018
ref: 4

CAM-BRAKE

€ 18.00

5

112G0630
ref: 5

BOLT-UPSET

€ 1.00

6

410B0600
ref: 6

WASHER-PLAIN-SMALL,6M

€ 0.50

7

311B0600
ref: 7

NUT,6MM

€ 0.50

8

92055004
ref: 8

RING-O,BRAKE CAM

€ 3.00

9

42029015
ref: 9
F6/A

LEVER-REAR BRAKE CAM

€ 25.50

9

42029023
ref: 9
F6-B

LEVER-REAR BRAKE CAM

€ 11.50

10

42005024
ref: 10
F6/A

DRUM ASSY-REAR BRAKE

€ 136.00

10

42005029
ref: 10
F6-B

DRUM ASSY-REAR BRAKE

€ 136.00

11

601B6302Z
ref: 11

BEARING-BALL,#6302ZC3

€ 22.50

12

42010019
ref: 12

SPACER-RR HUB BEARING

€ 11.50

13

601B6302
ref: 13

BEARING-BALL,#6302C3

€ 16.00

14

92050009
ref: 14

OIL SEAL-RR BRK DRUM

€ 12.00

15

42031037
ref: 15

AXLE-REAR

€ 28.50

15

42031037
ref: 15

AXLE-REAR

€ 28.50

16

42032027
ref: 16
USE WITH CHAIN ADJUS

COLLAR-REAR AXLE

€ 7.50

16

42032036
ref: 16
USE WITH CHAIN ADJUS

COLLAR-REAR AXLE

€ 12.50

17

321B1400
ref: 17

NUT-CASTLE,14MM

€ 3.00

18

550D3030
ref: 18

PIN-COTTER,3.0X30

€ 1.50

19

42041094
ref: 19
STD

REAR SPROCKET 55T

€ 30.00

19

42041085
ref: 19

REAR SPROCKET 50T

€ 51.50

20

92001087
ref: 20

BOLT-HEX HEAD,10X25

€ 3.00

21

92088007
ref: 21

WASHER,LOCK

€ 8.00

22

695Z43118
ref: 22

CHAIN ASSEMBLY DRIVE

€ 25.50

22

92057030
ref: 22

CHAIN ASSY,DRIVE,118L

€ 25.50

23

920581015
ref: 23

JOINT-CHAIN,EK428SH

€ 3.50

all assemblies
