FRAME/FRAME FITTINGS
F6 1971 USA CANADA

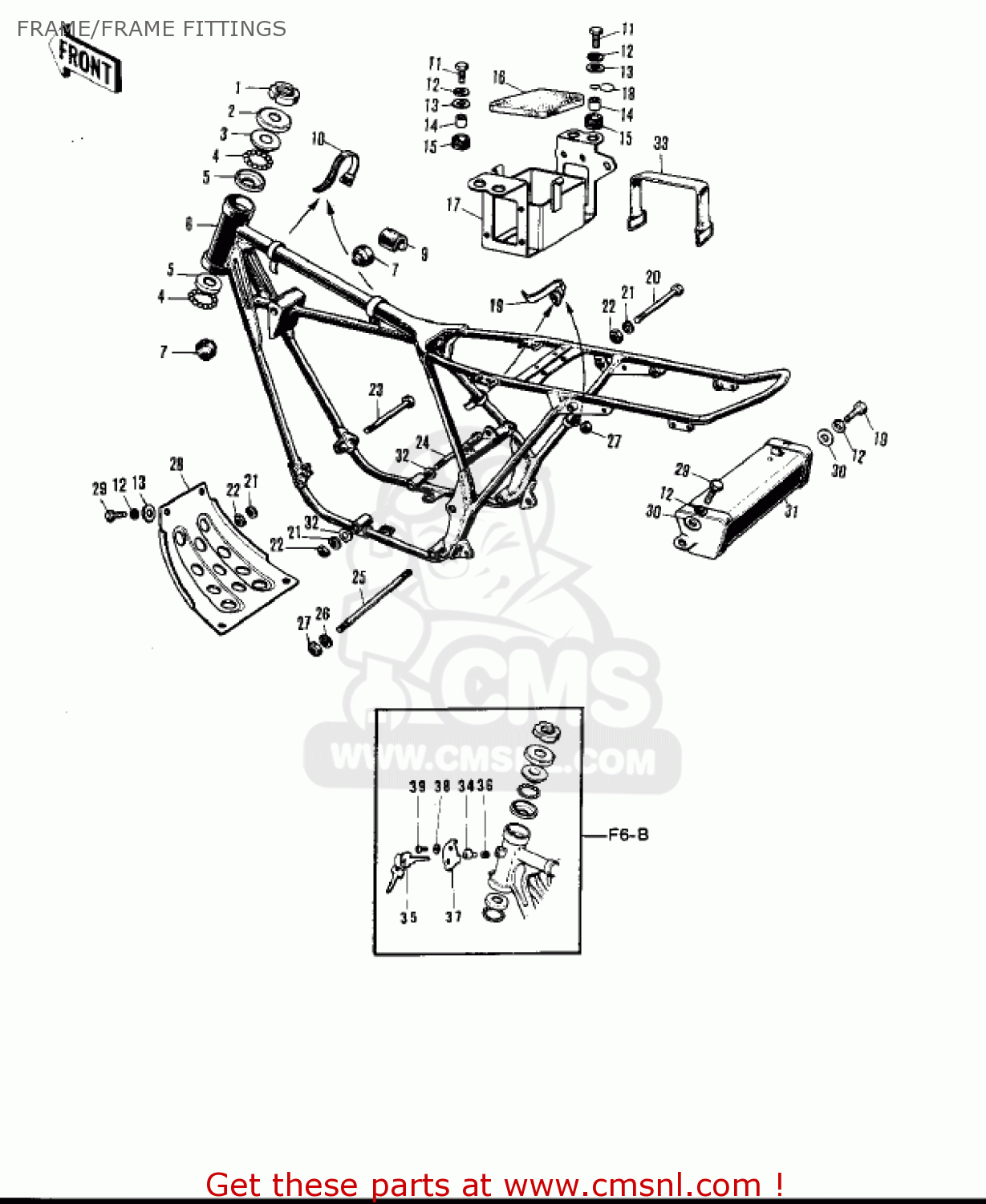

Frame/frame fittings diagram F6 1971 USA CANADA
FRAME/FRAME FITTINGS F6 1971 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92090006
ref: 1
NUT-STEERING STEM LCK
€ 10.50
2
46098005
ref: 2
CAP-STEERING STEM
€ 2.50
3
92047005
ref: 3
CONE-UPPER BEARING
€ 10.50
4
600A0600
ref: 4
BALL-STEEL,3/16
€ 0.50
5
92048004
ref: 5
RACE-BEARING
€ 10.00
6
32002043
ref: 6
F6/A
FRAME
€ 320.00
6
32002060
ref: 6
F6-B
FRAME
€ 375.00
7
92075050
ref: 7
DAMPER,FUEL TANK
€ 3.00
9
51067002
ref: 9
MAT-FUEL TANK
€ 12.00
10
92072032
ref: 10
BAND,LONG
€ 3.00
11
112G0620
ref: 11
BOLT 6X20
€ 1.00
12
461F0600
ref: 12
WASHER-SPRING,6MM
€ 0.50
13
92022125
ref: 13
WASHER,6.5X20X1.6
€ 1.00
14
92027103
ref: 14
COLLAR
€ 2.50
15
92075051
ref: 15
DAMPER RUBBER
€ 2.50
16
32103019
ref: 16
MAT-BATTERY
€ 1.50
17
32097018
ref: 17
CASE-BATTERY
€ 24.50
18
92037026
ref: 18
CLAMP-CABLE
€ 0.50
19
92072031
ref: 19
BAND,MIDDLE
€ 3.00
20
920011603
ref: 20
BOLT,FLANGED,10X115
€ 7.00
21
461F1000
ref: 21
WASHER-SPRING,10MM
€ 0.50
22
314B1000
ref: 22
NUT,10MM
€ 0.50
23
113B10145
ref: 23
F6
BOLT-HEX HEAD,10X145
€ 4.00
23
920011251
ref: 23
F6-A/B
BOLT,HEX HEAD,10X150
€ 3.50
24
113B10225
ref: 24
F6
BOLT-HEX HEAD,10X225
€ 15.00
24
113B10225
ref: 24
F6-A/B
BOLT-HEX HEAD,10X225
€ 15.00
25
92006003
ref: 25
STUD,12X290
€ 10.00
26
461F1200
ref: 26
WASHER-SPRING,12MM
€ 0.50
27
314B1200
ref: 27
NUT-HEX-FINE
€ 1.00
28
55011012
ref: 28
GUARD-ENGINE
€ 15.00
29
112G0612
ref: 29
BOLT-UPSET
€ 2.50
30
410B0600
ref: 30
WASHER-PLAIN-SMALL,6M
€ 0.50
31
32098013
ref: 31
BOX-TOOL
€ 40.50
32
411B1000
ref: 32
WASHER-PLAIN,10MM
€ 0.50
33
92072012
ref: 33
BAND-TOOL
€ 4.50
?
27016029
ref: ?
Includes items 34 an
LOCK ASSY-STEERING
€ 18.00
35
2701801570
ref: 35
F6-B
KEY SET-STRNG #270
€ 4.50
35
2701801571
ref: 35
F6-B
KEY SET-STRNG #271
€ 4.50
35
2701801572
ref: 35
F6-B
KEY SET-STRNG #272
€ 4.50
35
2701801573
ref: 35
F6-B
KEY SET-STRNG #273
€ 4.00
35
2701801574
ref: 35
F6-B
KEY SET-STRNG #274
€ 4.50
36
27032001
ref: 36
F6-B
SPRING-STEERING LOCK
€ 3.50
37
110121134
ref: 37
F6-B
CAP,STEERING LOCK
€ 4.50
38
92097003
ref: 38
F6-B
WASHER
€ 2.50
39
92008007
ref: 39
SCREW-TAPPING
€ 2.50
