SWINGARM
ZX900D2 NINJA ZX9R 1999 FG ST

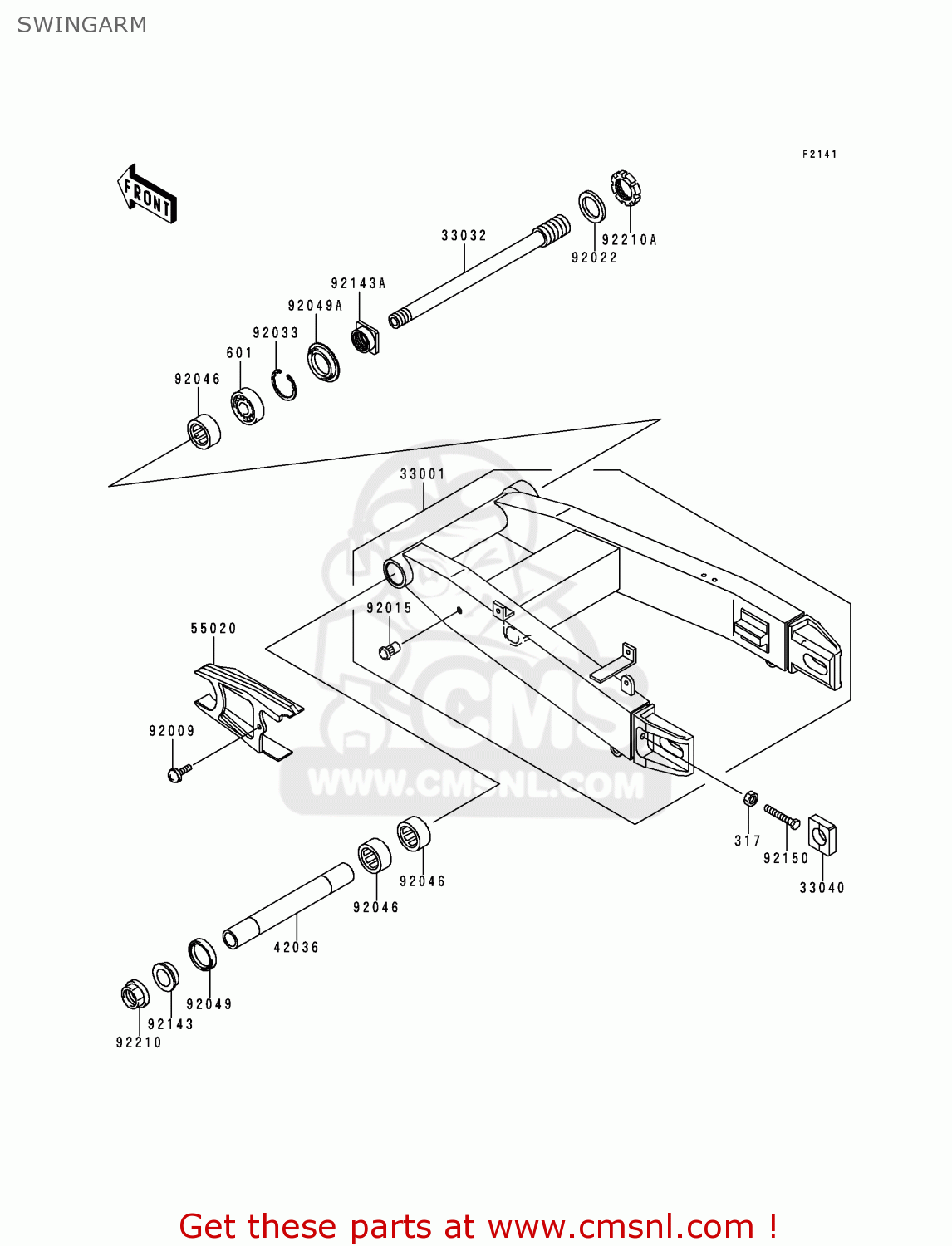

Swingarm diagram ZX900D2 NINJA ZX9R 1999 FG ST
SWINGARM ZX900D2 NINJA ZX9R 1999 FG ST
×
prices are in EUR
ref
part #
description
quantity
317
317G0800
ref: 317
NUT-HEX-SMALL,8MM
€ 0.50
601
601A6004
ref: 601
BEARING-BALL,#6004
€ 13.00
33001
330011541TX
ref: 33001
ARM-COMP-SWING,SILVER
€ 1,088.00
33032
330321187
ref: 33032
SHAFT-SWING ARM
€ 98.50
33040
330401109
ref: 33040
ADJUSTER-CHAIN
€ 13.00
42036
420361341
ref: 42036
SLEEVE,SWING ARM PIVO
€ 55.00
55020
550201664
ref: 55020
GUARD,CHAIN
€ 45.50
92009
920091663
ref: 92009
SCREW
€ 2.50
92015
920151792
ref: 92015
NUT,POP,6MM,L=16.5
€ 3.00
92022
920221219
ref: 92022
WASHER,28.3X42X2.9
€ 10.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
€ 21.50
92049
920491352
ref: 92049
SEAL-OIL
€ 7.50
92049A
920491380
ref: 92049A
SEAL-OIL,MHA 35 42 5.
€ 8.50
92143
921431227
ref: 92143
COLLAR,SWING ARM,L=12
€ 7.50
92143A
921431973
ref: 92143A
COLLAR,SWING ARM PIVO
€ 22.50
92150
921501350
ref: 92150
BOLT
€ 1.50
92210
922101133
ref: 92210
NUT,FLANGED,20MM
€ 5.50
92210A
922101140
ref: 92210A
NUT,STEERING STEM,28M
€ 9.00
