GEAR CHANGE MECHANISM

ZX900D2 NINJA ZX9R 1999 FG ST

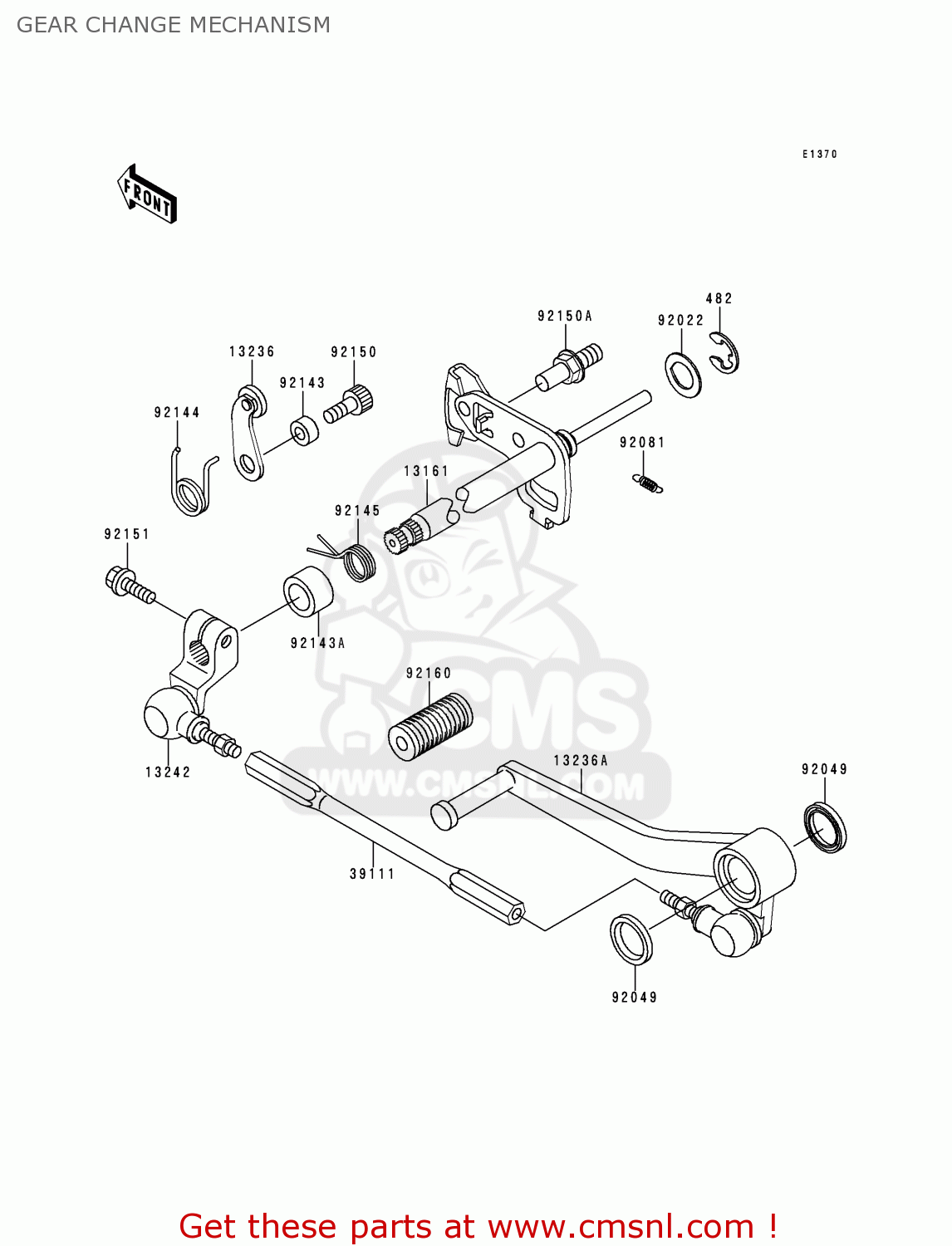

Gear change mechanism diagram ZX900D2 NINJA ZX9R 1999 FG ST

GEAR CHANGE MECHANISM ZX900D2 NINJA ZX9R 1999 FG ST
GEAR CHANGE MECHANISM ZX900D2 NINJA ZX9R 1999 FG ST
GEAR CHANGE MECHANISM ZX900D2 NINJA ZX9R 1999 FG ST
prices are in EUR
ref
part #
description
quantity
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
13161
131611246
ref: 13161
LEVER-COMP-CHANGE SHA
131611246
€ 59.00
13236
132361243
ref: 13236
LEVER-COMP
132361243
€ 13.00
13236A
132361317
ref: 13236A
LEVER-COMP,CHANGE PED
132361317
€ 81.00
13242
132421348
ref: 13242
LEVER-ASSY-CHANGE,BOS
132421348
€ 37.50
39111
391111157
ref: 39111
ROD-TIE
391111157
€ 33.50
92022
920221628
ref: 92022
WASHER,CHANGE SHAFT
920221628
€ 4.50
92049
920491492
ref: 92049
SEAL-OIL
920491492
€ 6.00
92081
920811708
ref: 92081
SPRING,PAWL RETURN
920811708
€ 4.00
92143
921431595
ref: 92143
COLLAR
921431595
€ 6.50
92143A
921431733
ref: 92143A
COLLAR,13.2X19.9X12
921431733
€ 3.00
92144
921441856
ref: 92144
SPRING
921441856
€ 6.50
92145
921451122
ref: 92145
SPRING
921451122
€ 6.50
92150
921501737
ref: 92150
BOLT
921501737
€ 7.00
92150A
921501869
ref: 92150A
BOLT,RETURN SPRING
€ 7.00
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
