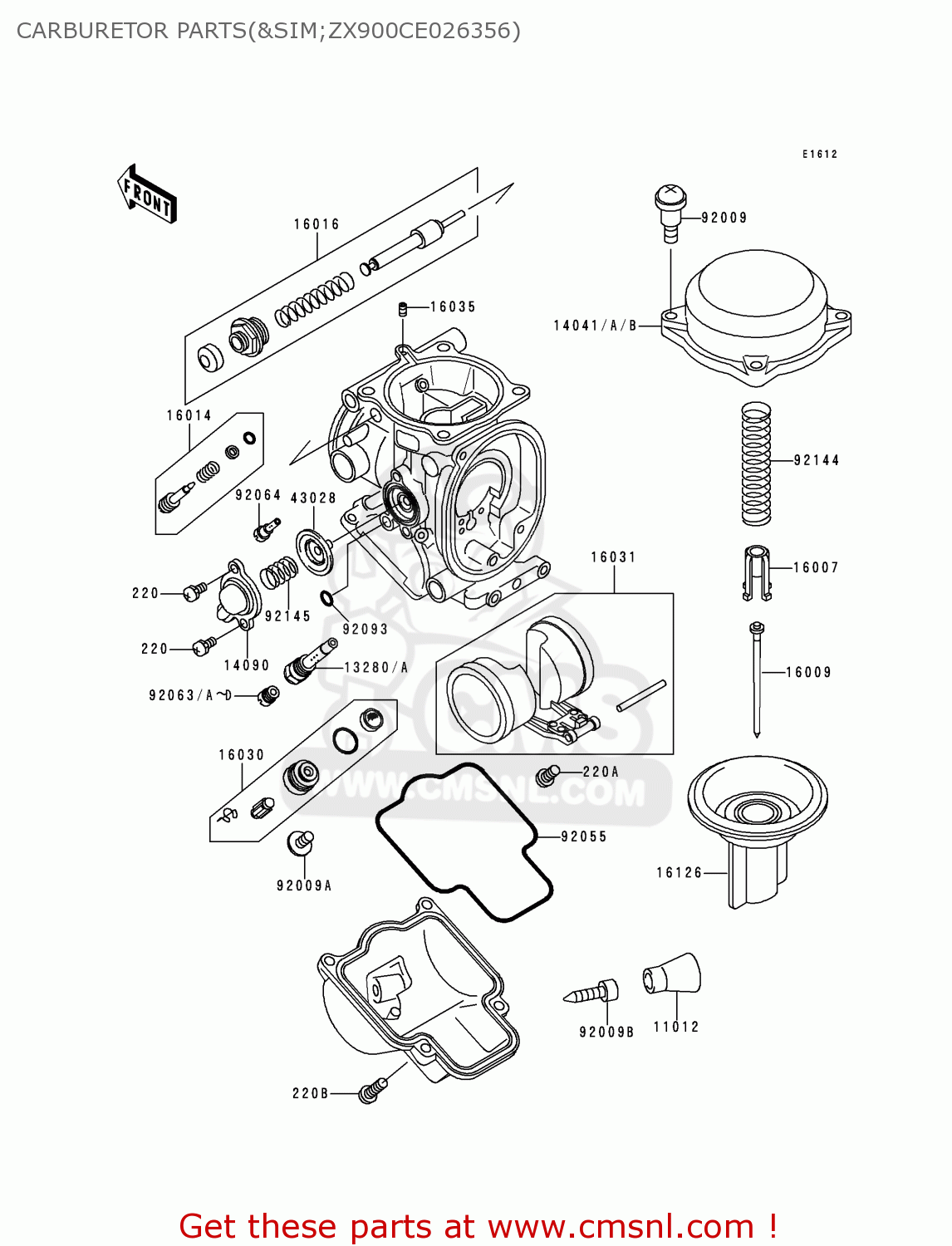

CARBURETOR PARTS(&SIM;ZX900CE026356)

ref

part #

description

quantity

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0408
ref: 220A

SCREW-PAN-CROS

€ 0.50

220B

220D0414
ref: 220B

SCREW-PAN-CROS

€ 2.00

11012

110121675
ref: 11012

CAP,DRAIN SCREW

€ 6.00

13280

132801084
ref: 13280
FG

HOLDER,JET NEEDLE

€ 22.50

13280A

132801085
ref: 13280A
ST

HOLDER,JET NEEDLE

€ 17.00

14041

140411100
ref: 14041

COVER-COMP,MIXING

€ 61.50

14041B

140411126
ref: 14041B
FG

COVER-COMP,MIXING

€ 55.00

14090

140901959
ref: 14090

COVER,AIR CUT VALVE

€ 11.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 16.50

16009

160091998
ref: 16009

NEEDLE-JET,N74V

€ 26.00

16014

160141090
ref: 16014

SCREW-PILOT AIR

€ 10.00

16016

160161090
ref: 16016

PLUNGER,STARTER

€ 46.50

16030

160301077
ref: 16030

VALVE-FLOAT

€ 77.50

16031

160311080
ref: 16031

FLOAT

€ 40.50

16035

160351055
ref: 16035

JET-AIR,LEAK

€ 10.00

16126

161261359
ref: 16126

VALVE,VACUUM

€ 181.50

43028

430281085
ref: 43028

DIAPHRAGM,AIR CUT VAL

€ 18.00

92009

920091549
ref: 92009

SCREW,4X4.4

€ 3.00

92009A

920091550
ref: 92009A

SCREW,4X8

€ 2.50

92009B

920091551
ref: 92009B

SCREW,DRAIN

€ 6.50

92055

920551426
ref: 92055

RING-O,FLOAT CHAMBER

€ 13.00

92063

920631330
ref: 92063

JET-MAIN,#150

€ 9.00

92063A

920631331
ref: 92063A

JET-MAIN,#152

€ 9.50

92063B

920631332
ref: 92063B

JET-MAIN,#155

€ 9.50

92063C

920631344
ref: 92063C

JET-MAIN,#158

€ 9.50

92063D

920631345
ref: 92063D

JET-MAIN,#160

€ 9.50

92064

920641119
ref: 92064

JET-PILOT,#38

€ 12.00

92093

920931046
ref: 92093

SEAL-"U"RING

€ 4.00

92144

921441962
ref: 92144

SPRING,VACUUM VALVE

€ 17.00

92145

921451149
ref: 92145

SPRING,AIR CUT VALVE

€ 4.50

all assemblies
