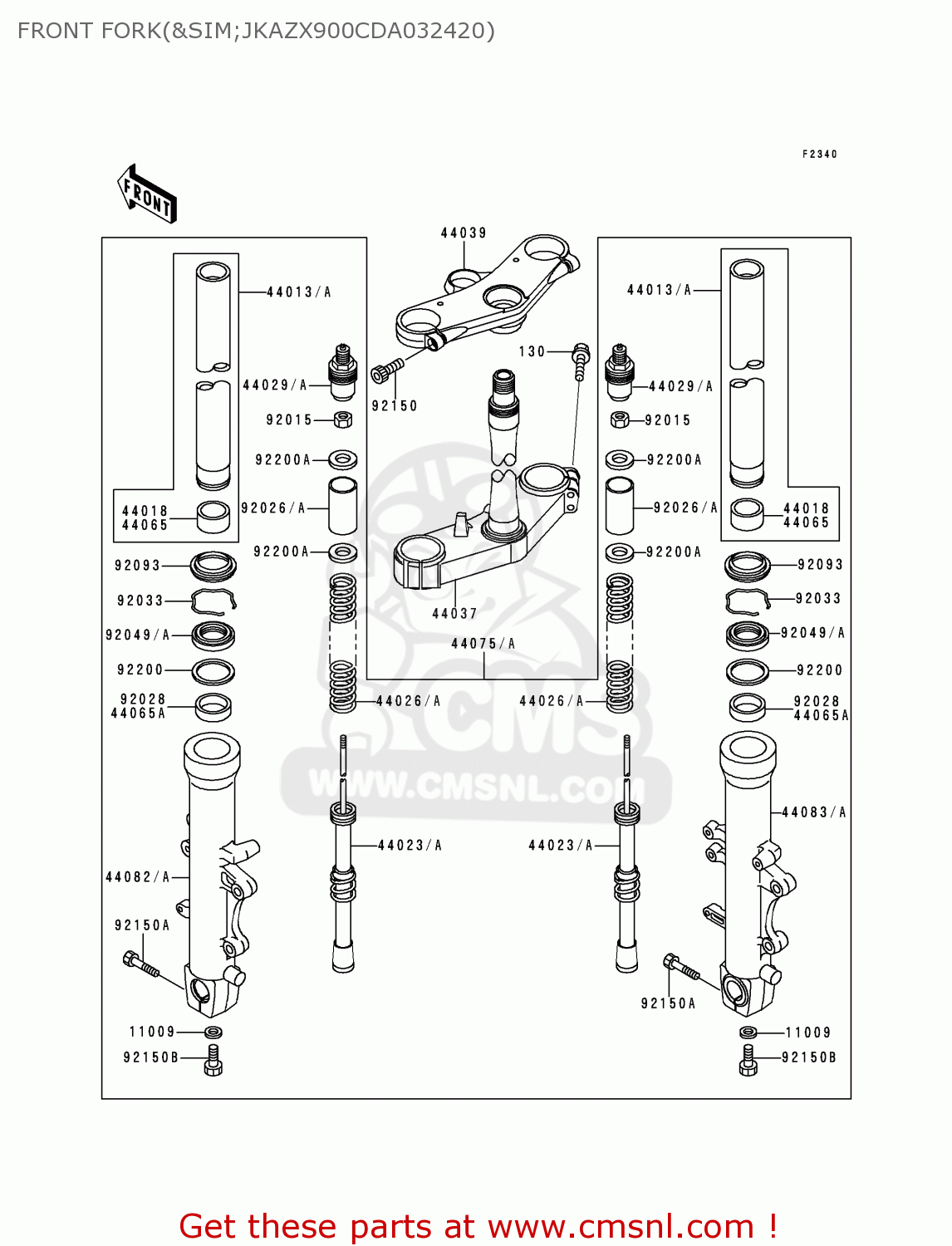

FRONT FORK(&SIM;JKAZX900CDA032420)

ref

part #

description

quantity

130

130J0840
ref: 130

BOLT-FLANGED,8X40

€ 3.00

11009

110091127
ref: 11009

GASKET,FORK CYLID BOL (NAS)

€ 3.00

44013A

440131463
ref: 44013A

PIPE-FORK INNER

€ 233.50

44023A

440231134
ref: 44023A

CYLINDER-SET-FORK

€ 309.00

44026A

440261694
ref: 44026A

SPRING-FRONT FORK

€ 64.00

44029A

440291165
ref: 44029A

SEAT-FORK SPRING

€ 88.00

44037

440371365
ref: 44037

HOLDER-FORK UNDER

€ 376.00

44039

440391277
ref: 44039

HOLDER-FORK UPPER

€ 205.00

44065

440651129
ref: 44065

BUSHING-FRONT FORK

€ 14.00

44065A

440651130
ref: 44065A

BUSHING-FRONT FORK

€ 13.50

44075A

440751098
ref: 44075A

DAMPER-SET-FORK

€ 1,762.00

44082A

440821058
ref: 44082A

PIPE-COMP-LEFT FORK O

€ 464.00

44083A

440831057
ref: 44083A

PIPE-COMP-RIGHT FORK

€ 533.00

92015

920151905
ref: 92015

NUT

€ 13.50

92026A

920261519
ref: 92026A

SPACER,FORK,L=120

€ 12.00

92033

920331264
ref: 92033

RING-SNAP

€ 4.00

92049A

920491508
ref: 92049A

SEAL-OIL

€ 14.50

92093

920931473
ref: 92093

SEAL,FORK OUTER TUBE

€ 14.50

92150

921501172
ref: 92150

BOLT,SOCKET,8X25

€ 1.50

92150A

921501194
ref: 92150A

BOLT,SOCKET,8X40

€ 2.00

92150B

921501398
ref: 92150B

BOLT,12X22

€ 5.50

92200

922001006
ref: 92200

WASHER

€ 8.00

92200A

922001420
ref: 92200A

WASHER

€ 5.50
