AIR DUCT
ZX900D2 NINJA ZX9R 1999 FG ST

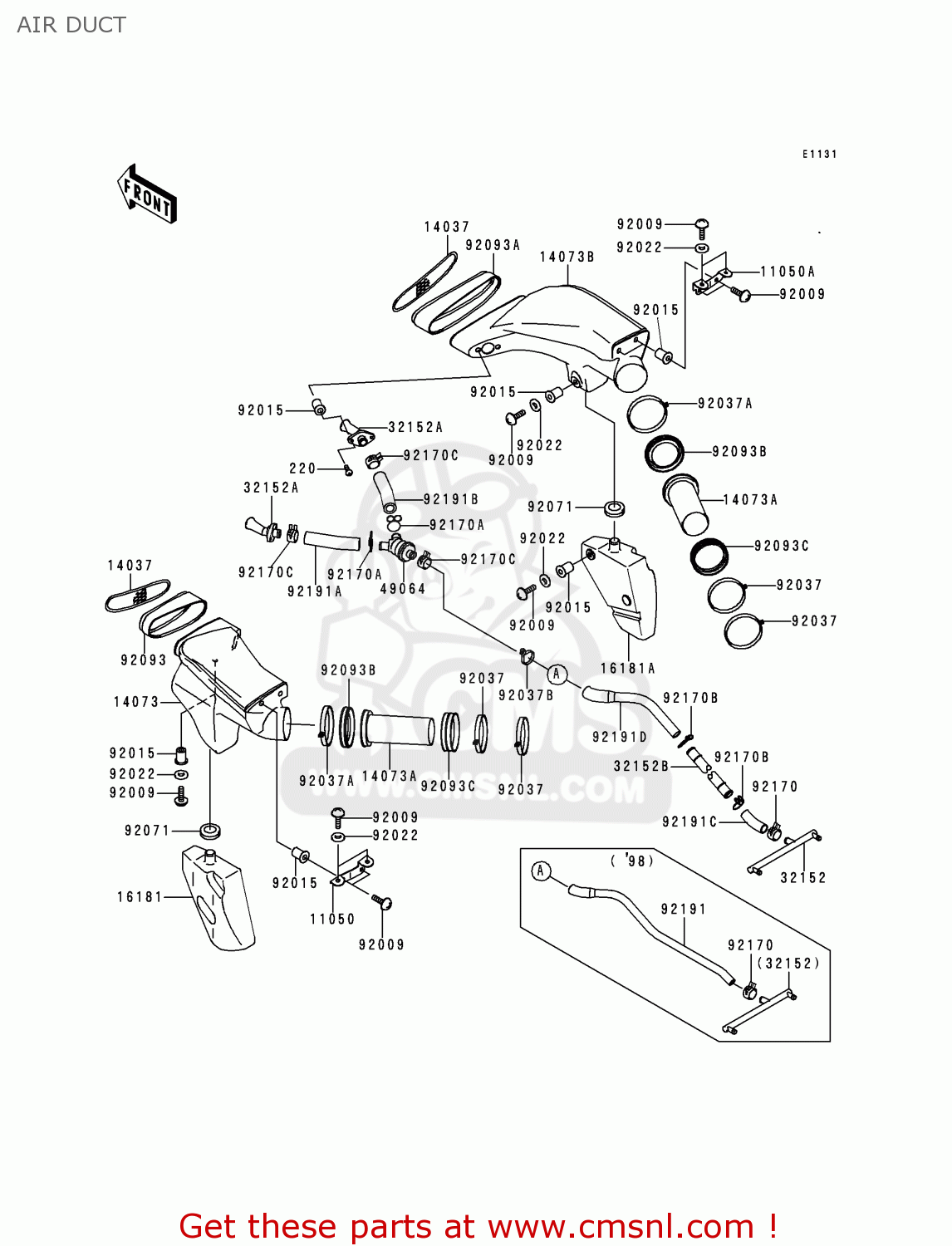

Air duct diagram ZX900D2 NINJA ZX9R 1999 FG ST
AIR DUCT ZX900D2 NINJA ZX9R 1999 FG ST
×
prices are in EUR
ref
part #
description
quantity
220
220D0520
ref: 220
SCREW-PAN-CROSS,5X20
€ 0.50
11050
110501513
ref: 11050
BRACKET,LH
€ 4.50
11050A
110501514
ref: 11050A
BRACKET,RH
€ 4.50
14037
140371246
ref: 14037
SCREEN,AIR DUCT
€ 19.50
14073
140731705E4
ref: 14073
DUCT,AIR LH,M.F.C.GRA
€ 75.00
14073A
140731706
ref: 14073A
DUCT,AIR FILTER
€ 19.50
14073B
140731707E4
ref: 14073B
DUCT,AIR RH,M.F.C.GRA
€ 75.00
16181
161811089
ref: 16181
TANK-RESONATOR,LH
€ 33.00
16181A
161811090
ref: 16181A
TANK-RESONATOR,RH
€ 31.00
32152
321521042
ref: 32152
PIPE
€ 20.50
32152A
321521568
ref: 32152A
PIPE
€ 21.00
32152B
321521975
ref: 32152B
PIPE
€ 9.50
49064
490641061
ref: 49064
FILTER-AIR
€ 13.00
92009
920091654
ref: 92009
SCREW
€ 0.50
92015
920151757A
ref: 92015
NUT,5MM
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92037
92037129
ref: 92037
CLAMP,AIR FILTER,ID=7
€ 8.50
92037A
920371654
ref: 92037A
CLAMP
€ 6.00
92037B
920371903
ref: 92037B
CLAMP
€ 5.00
92071
920711042
ref: 92071
GROMMET
€ 4.50
92093
920931454
ref: 92093
SEAL,AIR DUCT,LH
€ 12.50
92093A
920931455
ref: 92093A
SEAL,AIR DUCT,RH
€ 12.00
92093B
920931456
ref: 92093B
SEAL,AIR FILTER DUCT
€ 6.00
92093C
920931470
ref: 92093C
SEAL
€ 7.50
92170
921701118
ref: 92170
CLAMP
€ 5.00
92170A
921701486
ref: 92170A
CLAMP
€ 2.00
92170B
921701695
ref: 92170B
CLAMP
€ 1.50
92170C
921701909
ref: 92170C
CLAMP
€ 3.00
92191A
921911181
ref: 92191A
TUBE,LH
€ 4.50
92191B
921911182
ref: 92191B
TUBE,RH
€ 4.50
92191C
921911341
ref: 92191C
TUBE,9X15X40
€ 1.50
92191D
921911342
ref: 92191D
TUBE,AIR VENT
€ 12.00
