REAR SUSPENSION

ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

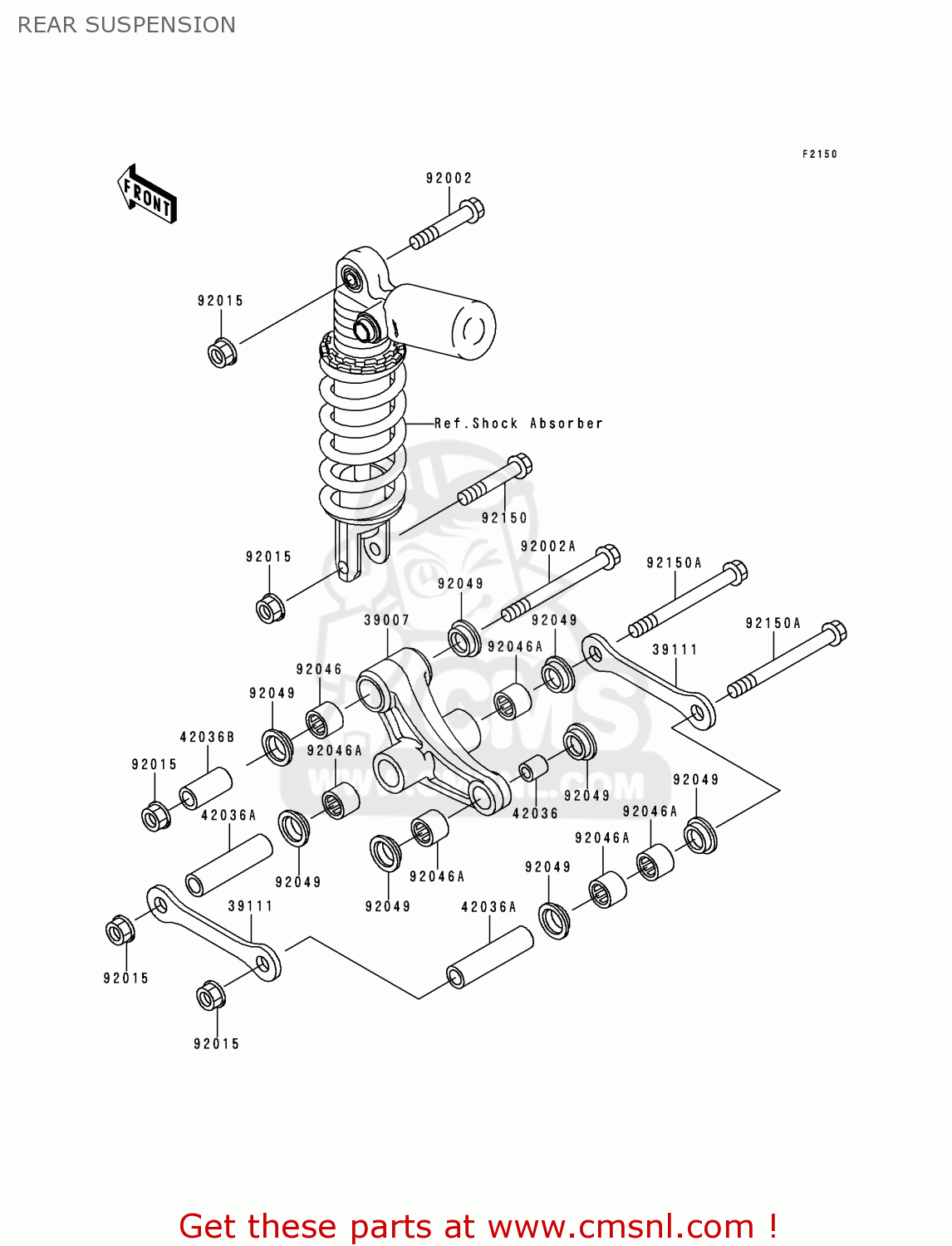

Rear suspension diagram ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

39007

390071244
ref: 39007

ARM-SUSP,UNI TRAK

€ 217.50

39111

391111147
ref: 39111

ROD-TIE,SUSPENSION

€ 19.50

42036

420361077
ref: 42036

SLEEVE,ARM,RR

€ 11.50

42036A

420361250
ref: 42036A

SLEEVE,12.1X20X88

€ 18.50

42036B

420361288
ref: 42036B

SLEEVE,12.1X20X44.5

€ 13.00

92002

920021130
ref: 92002

BOLT,12X55

€ 7.00

92002A

920021255
ref: 92002A

BOLT,12X85

€ 10.00

92015

920151433
ref: 92015

NUT,12MM

€ 6.00

92046

920461110
ref: 92046

BEARING-NEEDLE,BM2027

€ 22.50

92046A

920461112
ref: 92046A

BEARING-NEEDLE,BM2027

€ 21.50

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50

92150

921501258
ref: 92150

BOLT,FLANGED,12X63

€ 8.50

92150A

921501259
ref: 92150A

BOLT,FLANGED,12X112

€ 12.00
