CRANKCASE

ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

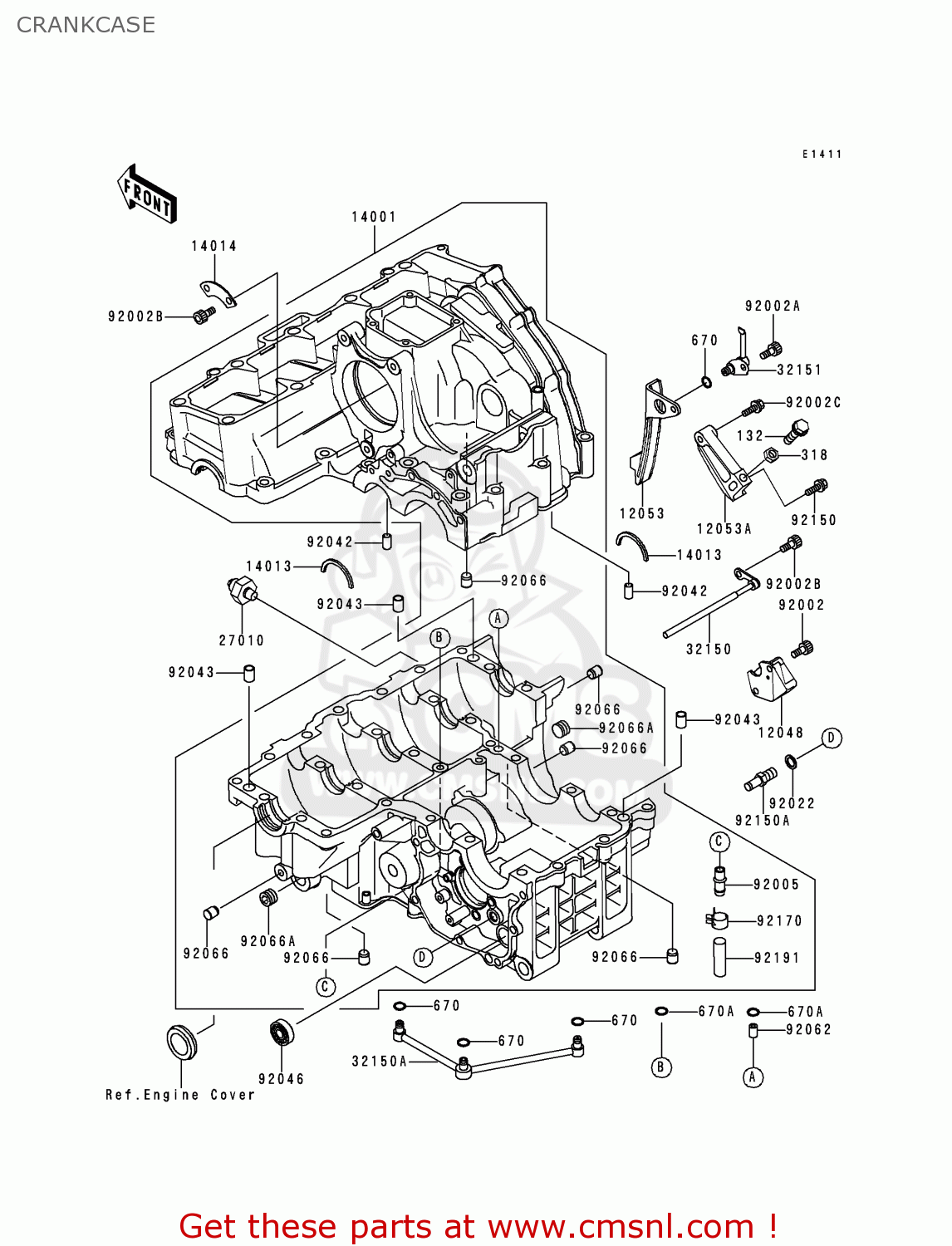

Crankcase diagram ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

CRANKCASE ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA
CRANKCASE ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA
CRANKCASE ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0820
ref: 132
BOLT-FLANGED-SMALL
132G0820
€ 2.50
318
318B0800
ref: 318
NUT,8MM
318B0800
€ 0.50
670
670D1505
ref: 670
O RING
670D1505
€ 2.50
670A
670D1508
ref: 670A
O RING,8MM
670D1508
€ 2.50
12048
120481109
ref: 12048
TENSIONER-ASSY
120481109
€ 124.00
12053
120531281
ref: 12053
GUIDE-CHAIN
120531281
€ 39.00
12053A
120531285
ref: 12053A
GUIDE-CHAIN
120531285
€ 39.00
14001
140011208
ref: 14001
SET-CRANKCASE
€ 2,672.50
14013
140131004
ref: 14013
RING-POSITION,CRANK
140131004
€ 3.00
14014
140141056
ref: 14014
PLATE-POSITION
140141056
€ 9.50
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
270101313
€ 28.00
32150
321501795
ref: 32150
PIPE
321501795
€ 35.50
32150A
321501796
ref: 32150A
PIPE
€ 45.50
32151
321511492
ref: 32151
PIPE
€ 34.00
92002
920021696
ref: 92002
BOLT,SOCKET,6X25
920021696
€ 1.50
92002A
920021778
ref: 92002A
BOLT,SOCKET,6X16
920021778
€ 3.00
92002B
920021796
ref: 92002B
BOLT,SOCKET,6X12
920021796
€ 3.00
92002C
920021797
ref: 92002C
BOLT,6X30
€ 3.50
92005
920051161
ref: 92005
FITTING,BREATHER PIPE
€ 7.50
92022
920221973
ref: 92022
WASHER
920221973
€ 3.00
92042
92042016
ref: 92042
PIN,DOWEL,6X16
92042016
€ 3.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
920461148
€ 19.50
92062
920621074
ref: 92062
NOZZLE
€ 6.50
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
920661012
€ 4.00
92066A
920661262
ref: 92066A
PLUG
920661262
€ 2.50
92150
921501799
ref: 92150
BOLT,6X25
€ 3.00
92150A
921501803
ref: 92150A
BOLT,RETURN SPRING
921501803
€ 6.50
92170
921701167
ref: 92170
CLAMP
921701167
€ 4.00
92191
921911016
ref: 92191
TUBE
€ 2.50
