Genuine ZX Kawasaki Parts delivered quickly!


GEAR CHANGE MECHANISM

ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

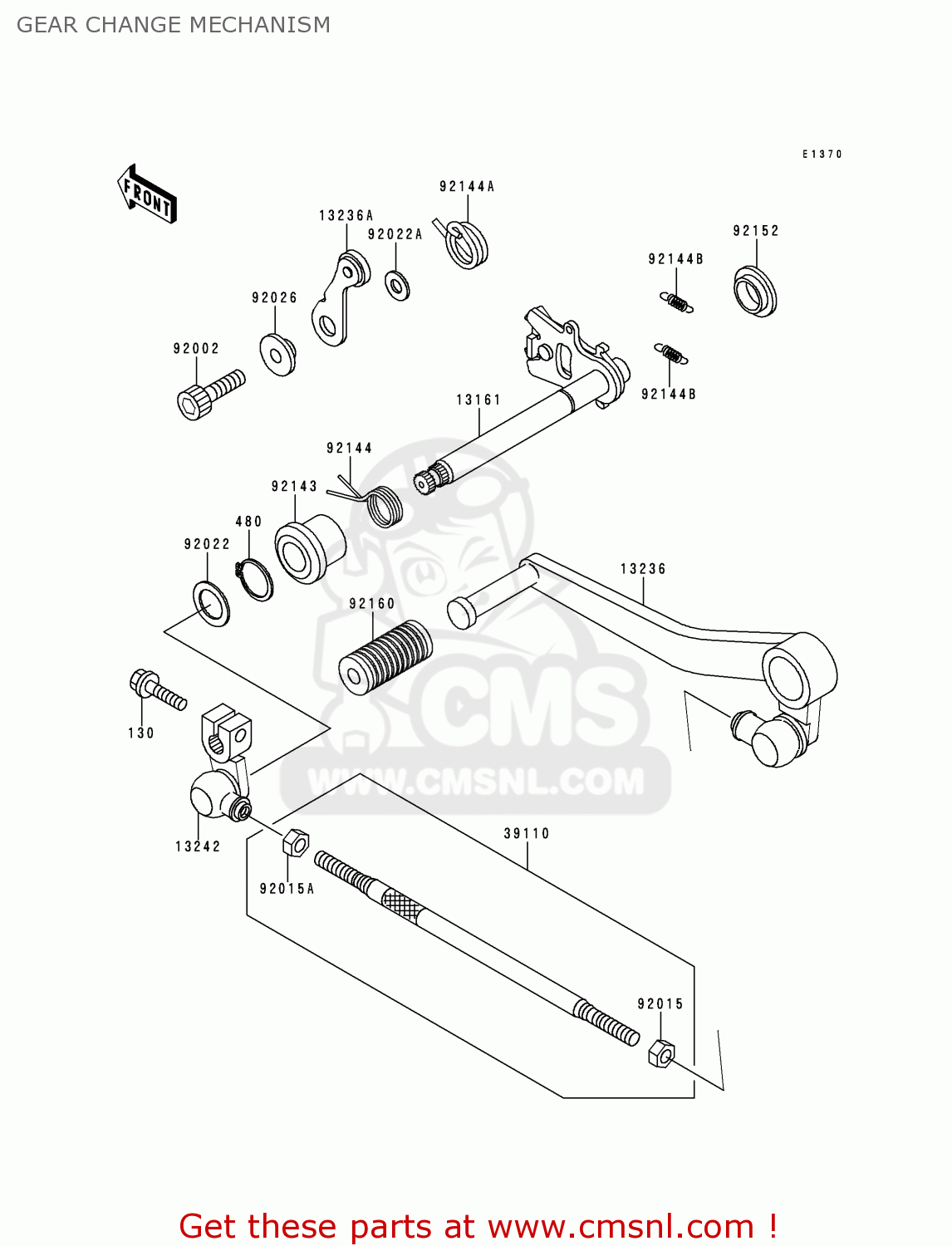

Gear change mechanism diagram ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13161
131611223
ref: 13161
LEVER-COMP-CHANGE SHA
131611223
€ 68.50
13236
132361204
ref: 13236
LEVER-COMP,CHANGE PED
132361204
€ 47.00
13236A
132361253
ref: 13236A
LEVER-COMP,POSITION
132361253
€ 7.50
13242
132421278
ref: 13242
LEVER-ASSY-CHANGE,LIN
132421278
€ 26.00
39110
391101100
ref: 39110
ROD-ASSY-TIE
391101100
€ 12.50
92002
920021778
ref: 92002
BOLT,SOCKET,6X16
920021778
€ 3.00
92015
920151443
ref: 92015
NUT
920151443
€ 2.50
92015A
920151444
ref: 92015A
NUT
920151444
€ 3.00
92022
920221496
ref: 92022
WASHER,13.3X20X1
920221496
€ 2.50
92022A
920221827
ref: 92022A
WASHER,6X12.8X1.2
920221827
€ 3.00
92026
920261217
ref: 92026
SPACER
920261217
€ 3.50
92143
921431498
ref: 92143
COLLAR,RETURN SPRING
921431498
€ 7.00
92144
921441628
ref: 92144
SPRING,CHANGE SHAFT R
921441628
€ 6.50
92144A
921441873
ref: 92144A
SPRING,LEVER POSITION
921441873
€ 5.00
92144B
921441975
ref: 92144B
SPRING,CHANGE LEVER
921441975
€ 3.00
92152
921521075
ref: 92152
COLLAR
921521075
€ 2.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
